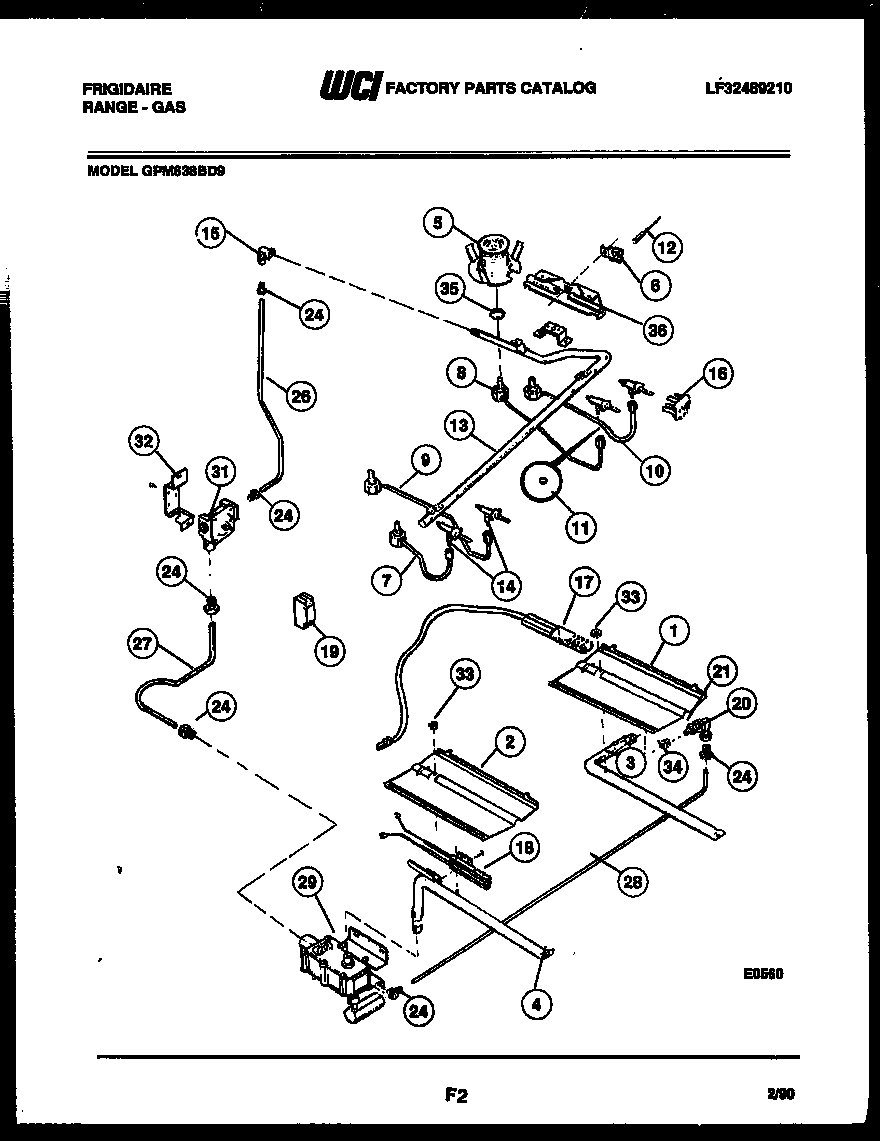

GPM638BDL9 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
*29863	WCI K1164545
1	WCI 08067925
2	WCI 08067926
3	WCI 08067935
4	WCI 08067936
5	WCI 08067937
6	WCI 3018617
7	WCI 08067938
8	WCI 08067939
9	WCI 08067940
10	WCI 08067941
11	FERRULE (4)
12	IGNITER-TOP BURNER (4)
13	WCI 08067949
14	WCI 3017846
15	ELBOW 1/2 NP TO 9/16-24
15A	WCI 08067952
16	316035200 Frigidaire Ignition Switch
17	5303935068 Frigidaire Flat Igniter
18	5303935066 Frigidaire Oven Flat Igniter 17" Leads
19	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20	WCI 08067979
21	WCI 08067981
24	WCI 08067946
26	WCI 08068004
27	TUBE ALUM 3/8
28	WCI 08068006
29	5303208499 Frigidaire Safety Gas Valve
31	5303935125 Frigidaire Pressure Regulator
32	316091600 Frigidaire Oven Bracket
33	5303013272 Frigidaire Oven Nut
34	WCI 08068015
35	NUT, SPECIAL, INGITOR SW, (4) (NOT ILLUSTRATED)
36	WCI 3206267
