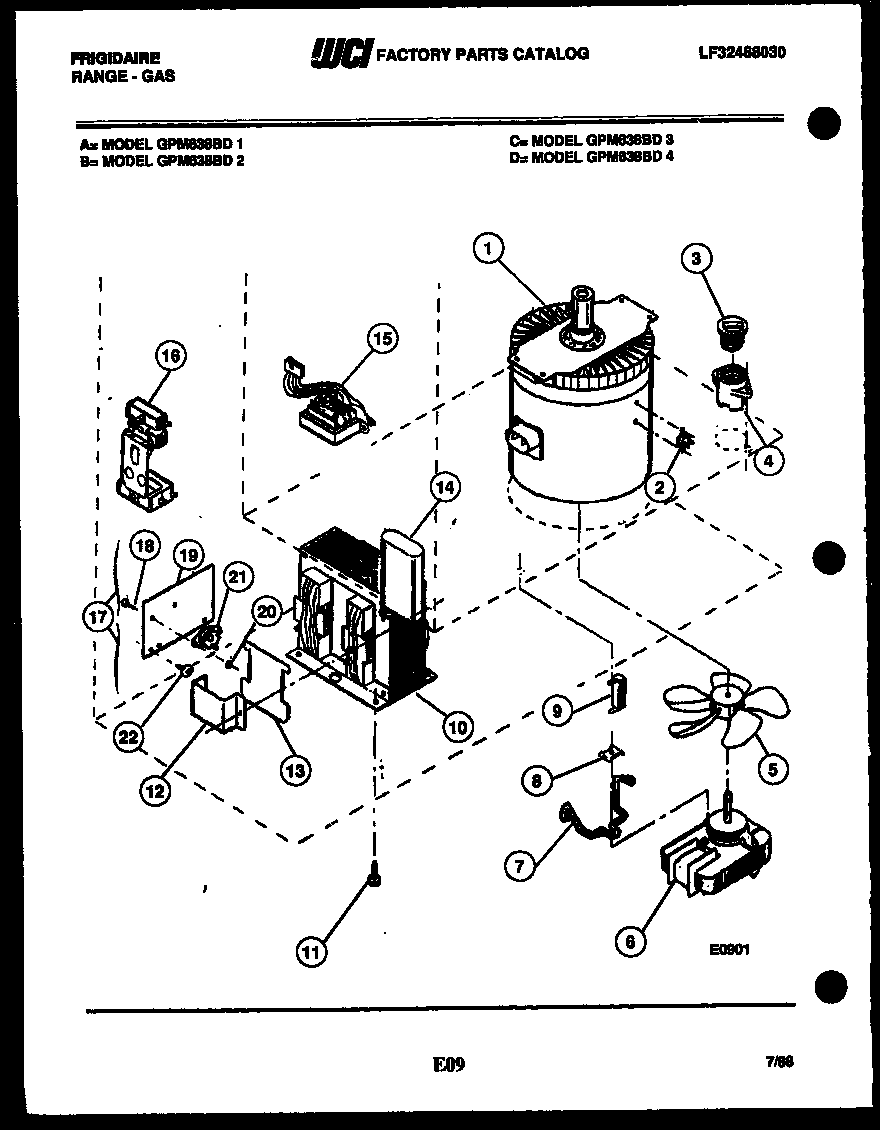

GPM638BDW3 08 – POWER CONTROL

Products

Position	Product
*15361	HARNESS MAIN
*15361	WCI 8012115
*15361	WCI 8010494
*15361	WCI 8008928
*15361	WCI 8008908
*15361	WCI 603T054P01
1	WCI 8008917
1A	NUT-HEX 5 MILLIMETER (NON-ILLUSTRATED)
2	WCI 8012862
3	WCI 8012054
4	WCI 8012055
5	WCI 8012182
6	WCI 8012203
7	WCI 8010478
8	WCI 8012858
9	DIODE
11	SCREW-TRANSFORM (2)
12	WCI 8010483
13	WCI 8010484
14	WCI 8037624
15	TRANSFORMER-LOW VOLTAGE
16	WCI 8010487
16A	WCI 8010488
16B	WCI 8012068
18	WCI 8008971
19	WCI 8010489
20	WCI 8012066
21	TRIAC
22	SCREW-RET (NON-ILLUSTRATED)
