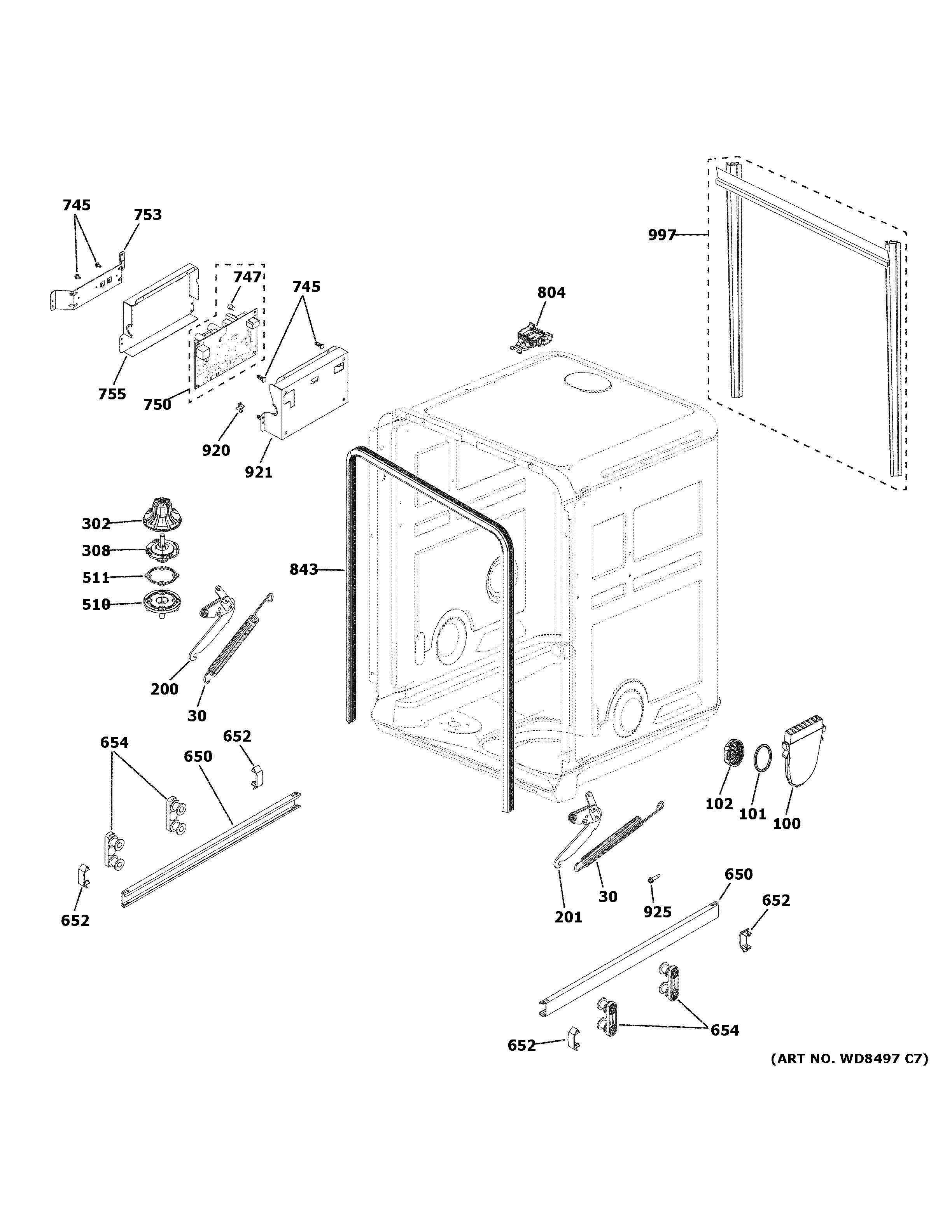

GPT145SSL0SS BODY PARTS (1)

GPT145SSL0SS BODY PARTS (1)

Written by

in

GPT145SSL0SS BODY PARTS (1)

Products

PositionProduct
30WD02X24646 GE Dishwasher Door Spring
100VENT FUNNEL ASM
101WD08X27559 GE Dishwasher Gasket Vent Funnel
102VENT FUNNEL INLET NUT
200WD01X24618 GE Dishwasher Hinge Mechanism Left Hand
201WD01X24621 GE Dishwasher Hinge Mechanism Right Hand
302WD12X24658 GE Dishwasher Flood Float Cover
308WD12X24657 GE Dishwasher Flood Float & Switch Assembly
510WD12X24659 GE Dishwasher Flood Float Stem
511WD08X24660 GE Dishwasher Flood Float Stem Gasket
650WD30X25805 GE Dishwasher Upper Rack Slide
652WD12X24354 GE Dishwasher Rack Slide End Cap
654WD30X24688 GE Dishwasher Slide Support Rack
745WJ01X23759 GE Screw
747WD21X25696 GE Dishwasher Fuse
750WD21X24676 GE Dishwasher Main Control Board
753WD01X24634 GE Dishwasher Control Box Bracket
755WD01X24635 GE Dishwasher Front Control Box
804WD12X24648 GE Dishwasher Door Striker Assembly
843WD08X24724 GE Dishwasher Tub Gasket
920WD02X24632 GE Dishwasher Control Board Clip
921WD01X24633 GE Control Box Back
925SCREW GROUND
997TRIM KIT
