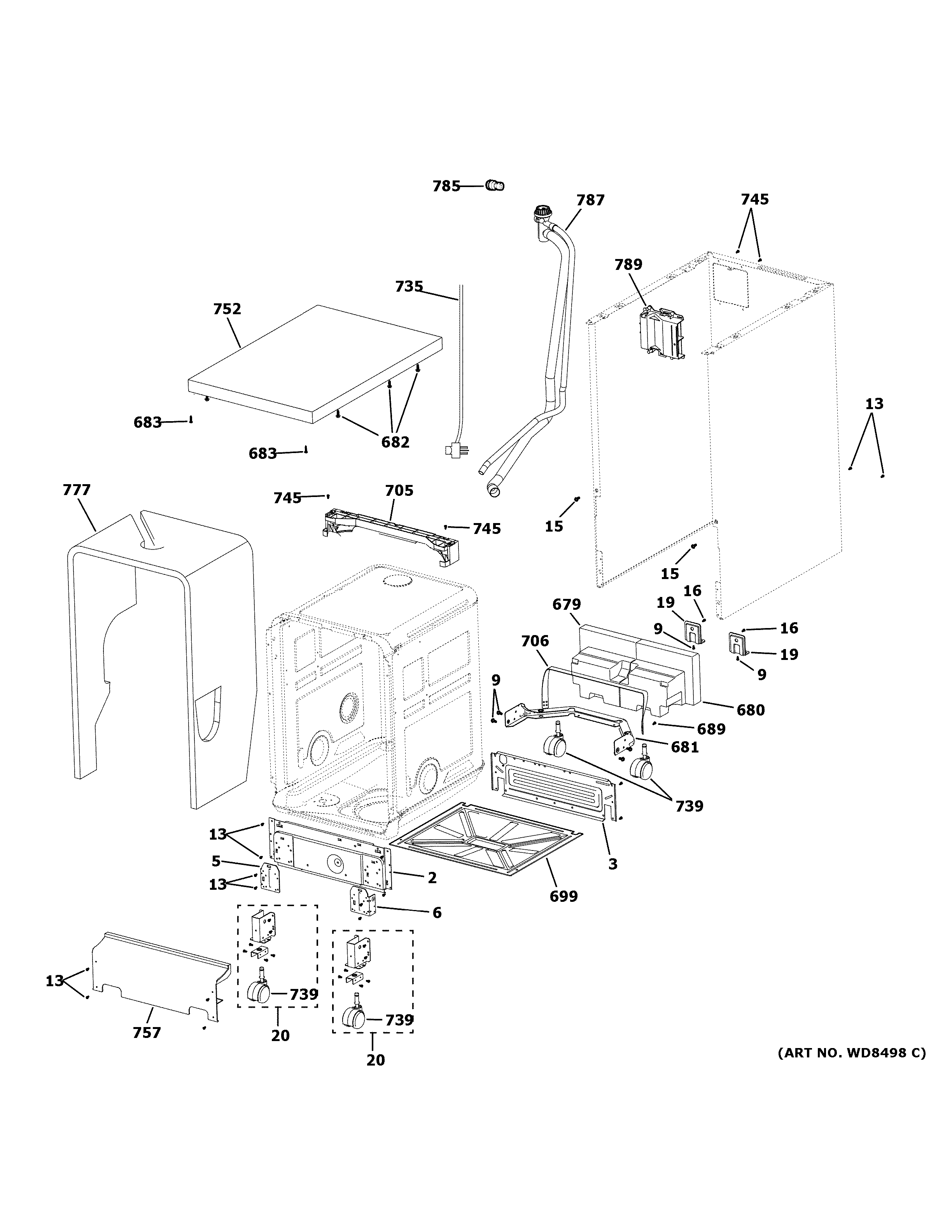

GPT145SSL0SS BODY PARTS (2)

GPT145SSL0SS BODY PARTS (2)

Written by

in

GPT145SSL0SS BODY PARTS (2)

Products

PositionProduct
218" FRONT BOTTOM BRACE
318" REAR BOTTOM BRACE
5LEFT FRONT BOTTOM BRACE REINFORCEMENT PL
6RIGHT FRONT BOTTOM BRACE REINFORCEMENT P
9COUNTERWEIGHT BRACKET SCREW
13WD02X24608 GE Dishwasher Screw
15FRONT APRON SCREW
16WH02X26297 GE Tub Bolt
19MOUNTING PLATE
20WD01X25604 GE Front Caster Assembly
679WD01X25525 GE Dishwasher Left Counterweight
680WD01X25518 GE Dishwasher Right Counterweight
681WD02X25511 GE 18" Counterweight And Rear Cas
682COUNTERTOP SCREW
683BOTTOM SCREW
689WH02X26236 GE Screw Assembly
69918" BOTTOM COVER
70518" TOP REAR BRACE COLLAR
70618" COUNTERWEIGHT STRAP
735WD02X25586 GE Dishwasher Power Cord
739WD01X25527 GE Dishwasher Caster Assembly
745WJ01X23759 GE Screw
75218" BLACK COUNTERTOP
75718" BLACK TOE KICK
77718" INSULATION BLANKET
785WD01X10383 GE Dishwasher Faucet Adapter
787WD15X30838 GE Dishwasher Unicouple Assembly with Faucet Adapter
789WD12X25517 GE Dishwasher Unicouple Pocket
