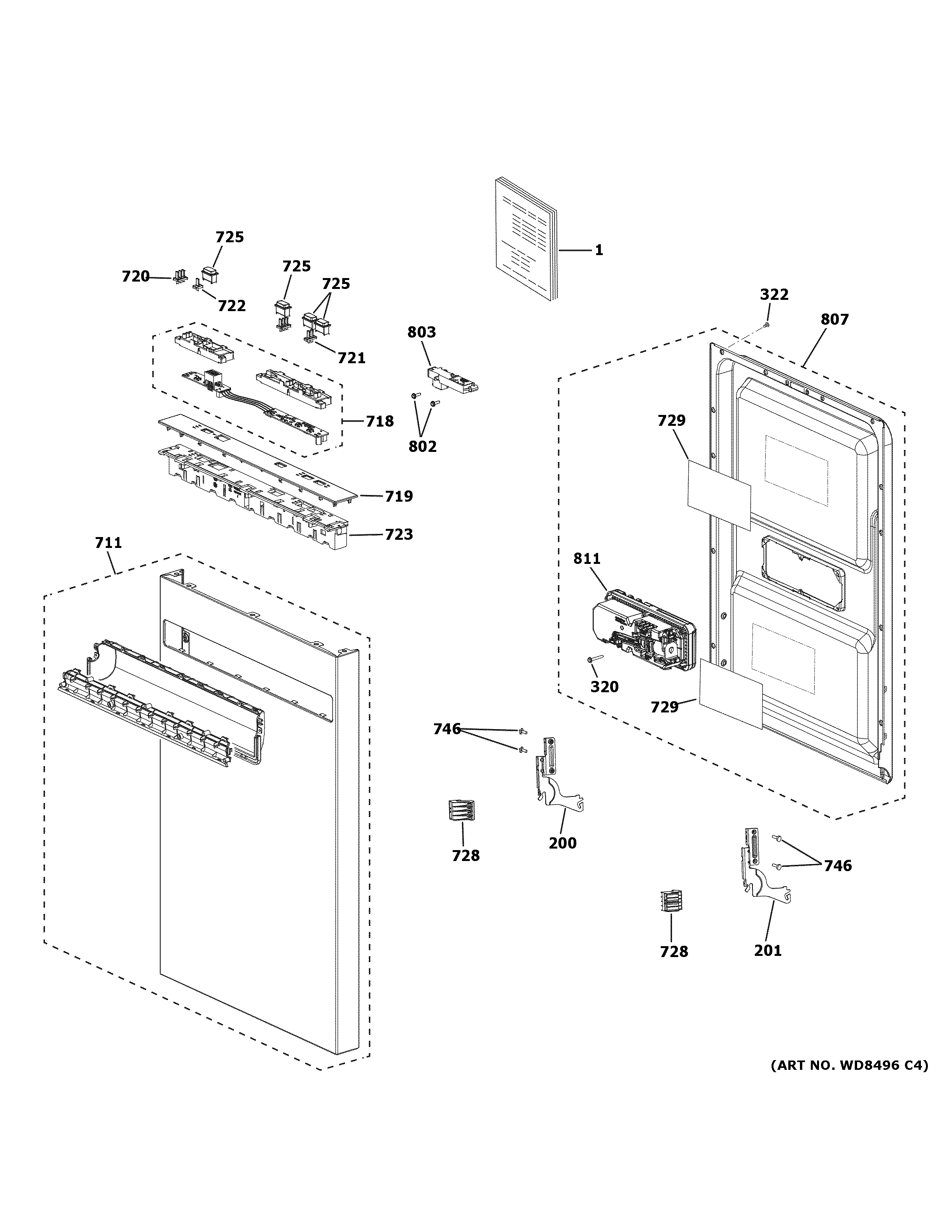

GPT225SGL0BB ESCUTCHEON & DOOR ASSEMBLYadmin2025-04-26T10:19:16+00:00GPT225SGL0BB ESCUTCHEON & DOOR ASSEMBLY ProductsPositionProduct1PRINTED ONLYMINI MANUAL AND WIRING1PM INSTALL INSTRUCTIONS1PM QUICK START GUIDE1PM OWNERS MANUAL200WD01X24738 GE Dishwasher Hinge Mechanism Left Hand201WD01X24739 GE Dishwasher Hinge Mechanism Right Hand320WD02X24690 GE Screw322WD02X27558 GE Screw711WD27X24743 GE Dishwasher Outer Door Panel Assembly GDT BB718WD21X28718 GE Dishwasher UI Control Assembly719WD34X24731 GE Console Cover Dishwasher720WD02X26239 GE Dishwasher Light Pipe721LIGHT PIPE 2722WD02X26240 GE Dishwasher Light Pipe723WD12X26198 GE Dishwasher Console Assembly725WD09X24600 GE Black Button728WD01X26238 GE Door Supporting Block729WD01X25807 GE Door Supporting Foam746WD02X24617 GE Water Valve Screw802WD02X24697 GE Latch Screw Assembly803WD12X24644 GE Dishwasher Door Latch807WD31X24740 GE Dishwasher Inner Door Assembly811DETERGENT MODULE
