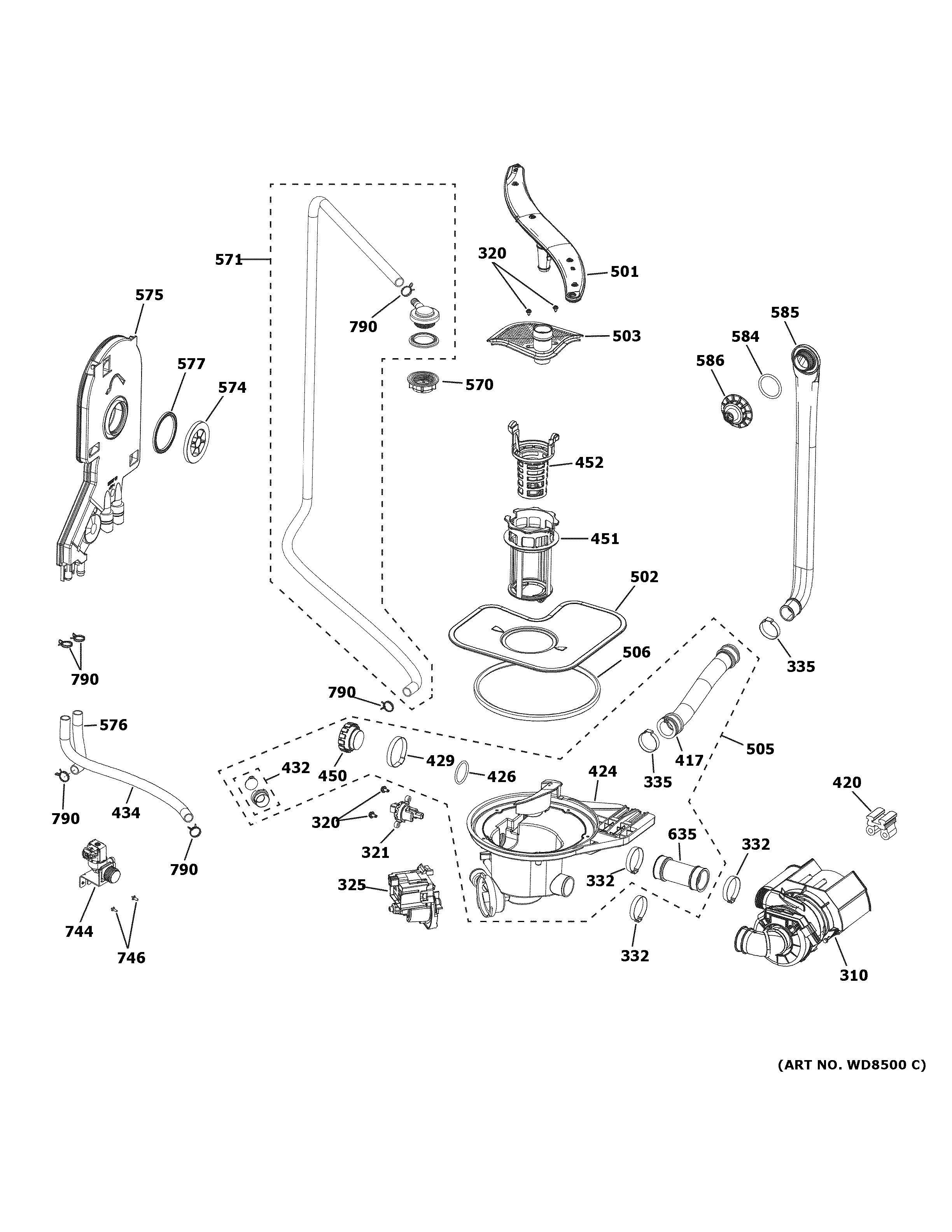

GPT225SGL0BB MOTOR-PUMP MECHANISMadmin2025-04-26T10:19:23+00:00GPT225SGL0BB MOTOR-PUMP MECHANISM ProductsPositionProduct310WD19X24705 GE Dishwasher Wash Pump Assembly320WD02X24690 GE Screw321WD21X24700 GE Dishwasher Turbidity Sensor325WD19X24651 GE Dishwasher Drain Pump Assembly335HOSE CLAMP417WD24X24675 GE Dishwasher Main Conduit Hose420WD01X24707 GE Pump Harness424WD08X24694 GE Dishwasher Sump Insert426WD08X24696 GE Dishwasher Sump Port Plug Gasket429WD35X10382 GE Dishwasher Piranha Clamps Kit432WD15X24624 GE Dishwasher Check Valve and Housing434WD24X24729 GE Dishwasher Air Break To Sump Fill Hose450SUMP PORT PLUG451WD12X24656 GE Dishwasher Fine Filter452WD12X24663 GE Dishwasher Glass Trap501WD22X24672 GE Dishwasher Lower Spray Arm502WD12X24619 GE Filter Coarse503WD12X24673 GE Dishwasher Lower Spray Arm Base505WD19X24692 GE Dishwasher Sump Assembly506WD08X28058 GE Dishwasher Sump Gasket570WD22X24704 GE Upper Spray Nozzle571WD22X24753 GE Upper Spray Assembly574WD02X24709 GE Dishwasher Water Inlet Nut575WD12X24598 GE Dishwasher Airbreak Flow Meter Assembly576WD24X24599 GE Dishwasher Fill Hose577WD08X24710 GE Dishwasher Water Inlet Gasket Nut584WD08X24720 GE Main Conduit Gasket585WD12X24719 GE Conduit Assembly586MID SPRAY DOCKING PORT635WD24X31318 GE Dishwasher Pump Discharge Hose744WD15X24711 GE Dishwasher Water Valve746WD02X24617 GE Water Valve Screw790WD01X24620 GE Dishwasher Small Squeeze Clamp
