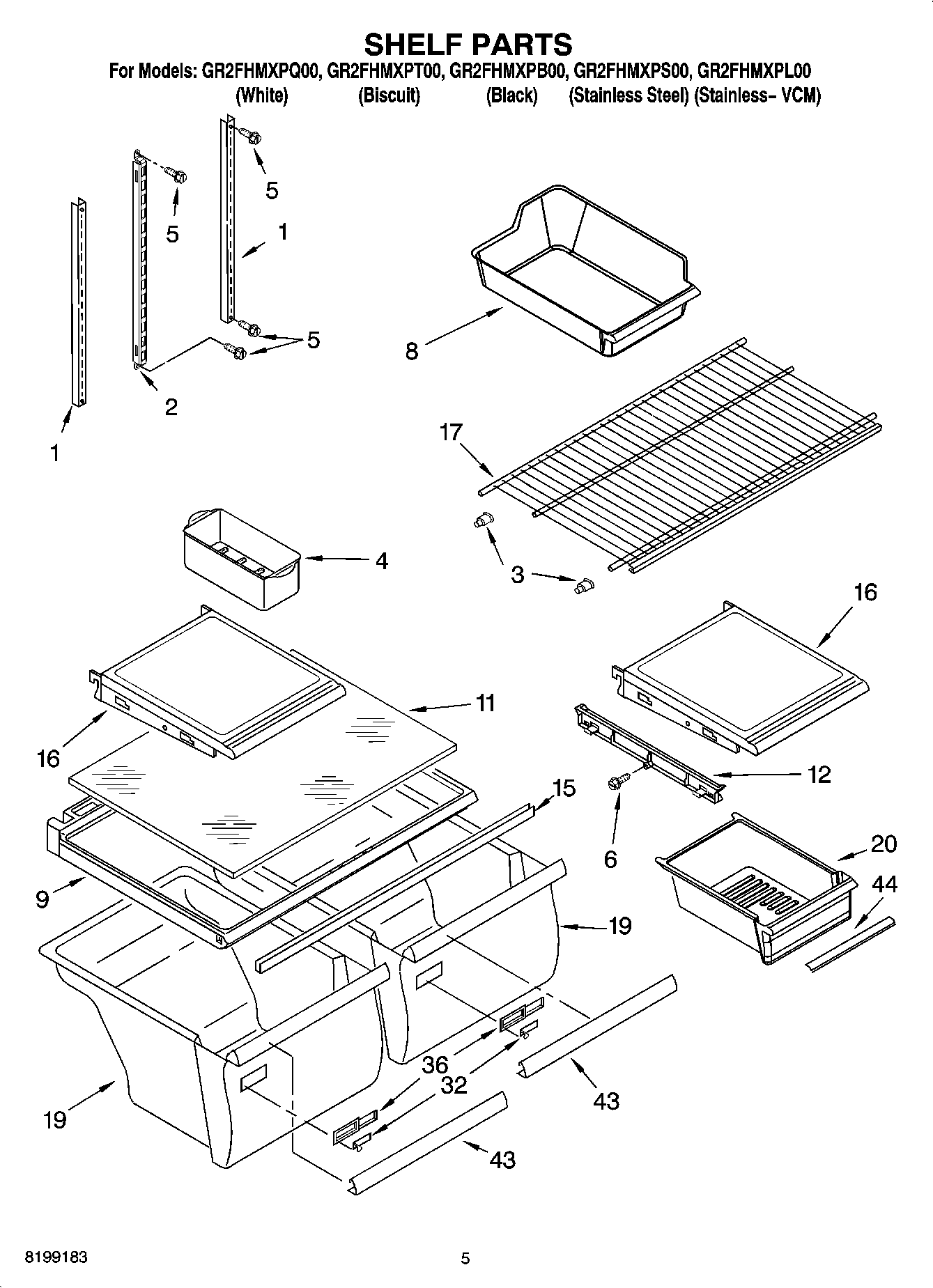

GR2FHMXPT00 03 – SHELF PARTS

GR2FHMXPT00 03 – SHELF PARTS

Written by

in

GR2FHMXPT00 03 – SHELF PARTS

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder Center
32163762 Whirlpool Refrigerator Cup Assembly
4W10136387A Whirlpool Refrigerator Egg Container
5WP489478 Whirlpool Refrigerator Screw
6WP3400065 Whirlpool Refrigerator Screw
82254352A Whirlpool Refrigerator Ice Container
9WP2314549 Whirlpool Refrigerator Cover
11WP2176225 Whirlpool Glass Shelf
12Track, Pan Slide (2)
15WP2172748 Whirlpool Drawer Support
16SHELF ASSEMBLY
17Shelf, Freezer
19W10854037 Whirlpool Refrigerator Crisper Pan
20WP2218132K Whirlpool Crisper Meat Pan
32WP2176222 Whirlpool Refrigerator Slide
36WP2212446 Whirlpool Refrigerator Control Body
43WP2195341 Whirlpool Refrigerator Pan Trim
44Trim, Meat Pan
