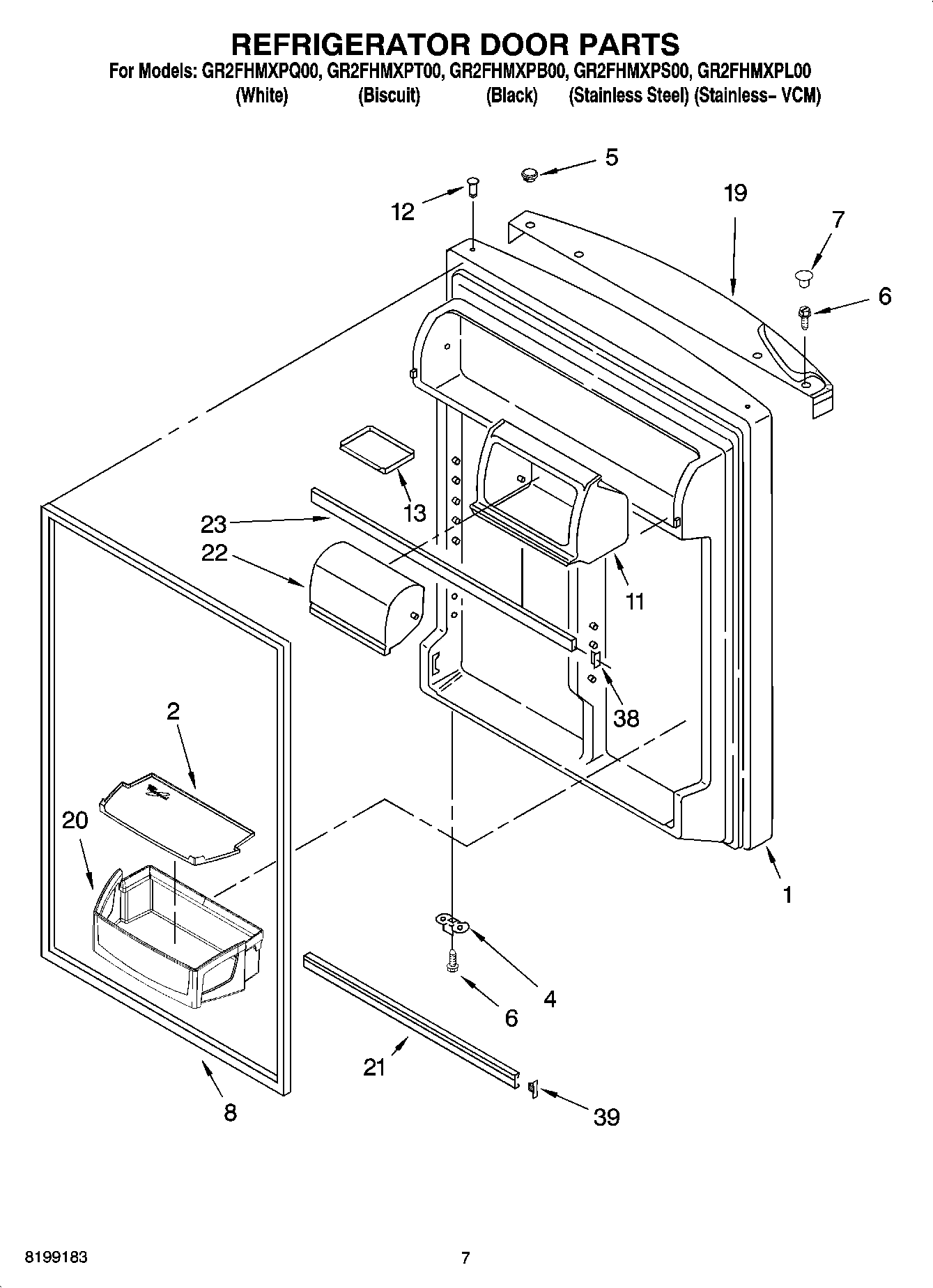

GR2FHMXPT00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 8 & 12) (White)
1Refrigerator Door (Includes No.8 & No.12) (Stainless Steel)
1Refrigerator Door (Includes No.8 & No.12) (Biscuit)
1Refrigerator Door (Includes Illus. 8 & 12) (Stainless VCM)
1Refrigerator Door (Includes Illus. 8 & 12) (Black)
2Mat, Door Bin
4W11745278 Whirlpool Bracket
5HOLE PLUG, ENDCAP (BLACK)
5Hole Plug, Handle (Biscuit)
5HOLE PLUG, ENDCAP (WHITE)
6WP681249 Whirlpool Screw Assembly
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212651 Whirlpool Refrigerator Button Plug
82177311 Whirlpool Refrigerator Magnetic Door Gasket
82159061 Whirlpool Refrigerator Door Gasket
11Housing Compartment
12WP2183003 Whirlpool Thimble
13Tray, Door
19Endcap, Handle (White)
19Handle (Black)
19Handle (Biscuit)
20Bin, Door Shelf (3)
21WPW10421486 Whirlpool Refrigerator Door Trim
22DOOR-COMP
23Trim, Door Shelf
38Endcap, Door Trim
39WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
