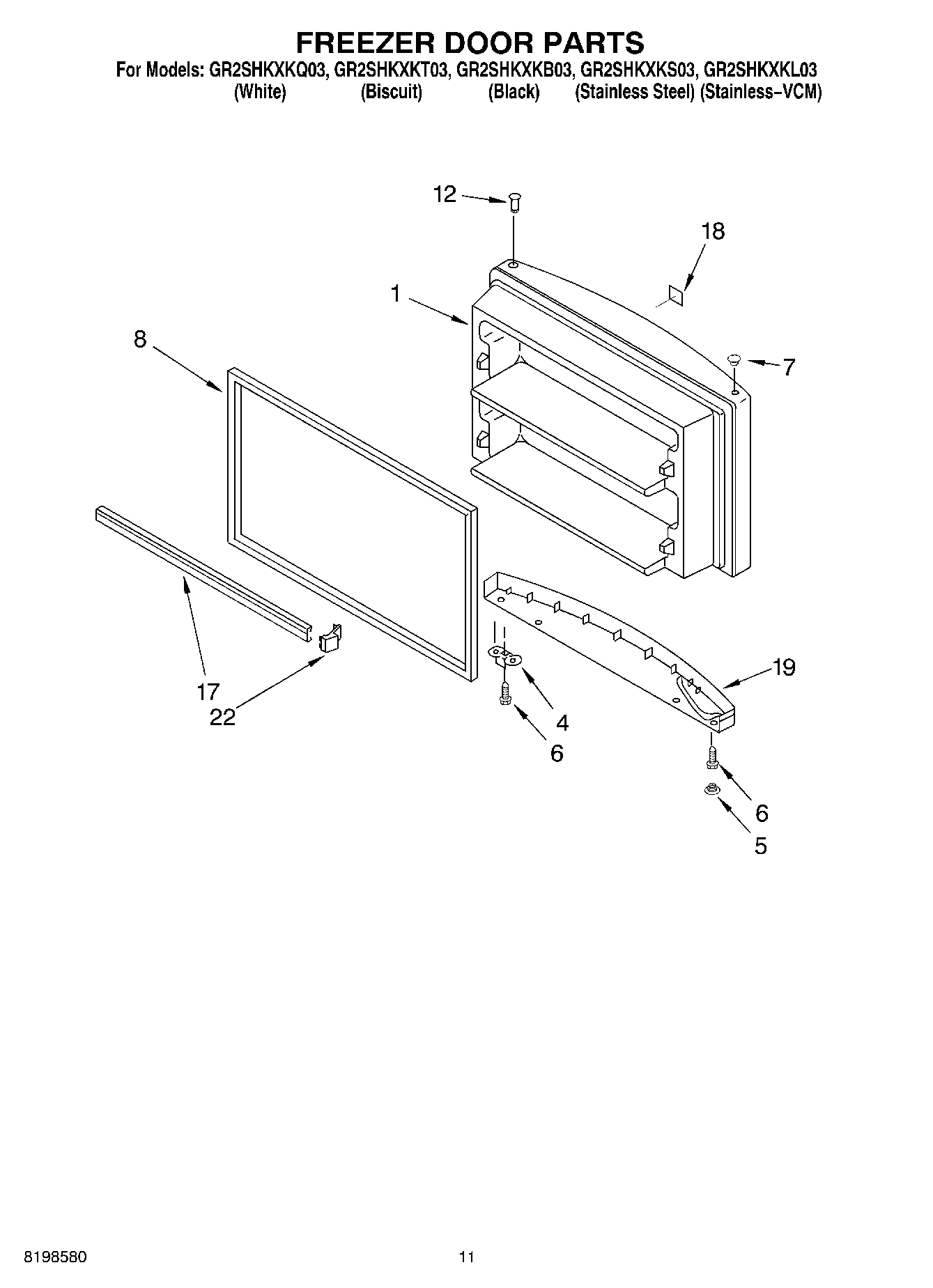

GR2SHKXKT03 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

GR2SHKXKT03 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Written by

in

GR2SHKXKT03 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
WPL ARI67756A9
WPL ARI67755A6
WPL ARI67754A4
WPL ARI67758A1
72032 Whirlpool Touch Up Paint Black
Torx Key
WP542638 Whirlpool Refrigerator Grease
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI67757A8
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
876370 Whirlpool Refrigerator Insulation
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
285006 Whirlpool Spray
1Freezer Door (Includes No.8& No.12) (Stainless, Brushed)
1Freezer Door (Includes No.8& No.12) (Biscuit)
1Freezer Door (Includes Illus. 6 & 7) (White)
1Freezer Door (Includes Illus. 6 & 7) (Black)
1Freezer Door (Includes Illus. 6 & 7) (Stainless VCM)
4W11745278 Whirlpool Bracket
5Hole Plug, Handle (Biscuit)
5HOLE PLUG, ENDCAP (BLACK)
5HOLE PLUG, ENDCAP (WHITE)
6WP681249 Whirlpool Screw Assembly
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8WHITE DOOR GASKET-FIP
82177310 Whirlpool Refrigerator Door Gasket
12WP2183003 Whirlpool Thimble
17Trim, Door Shelf (2)
18Nameplate
19Handle (Biscuit)
19Endcap, Handle (Black)
19Endcap, Handle (White)
22ENDCAP
