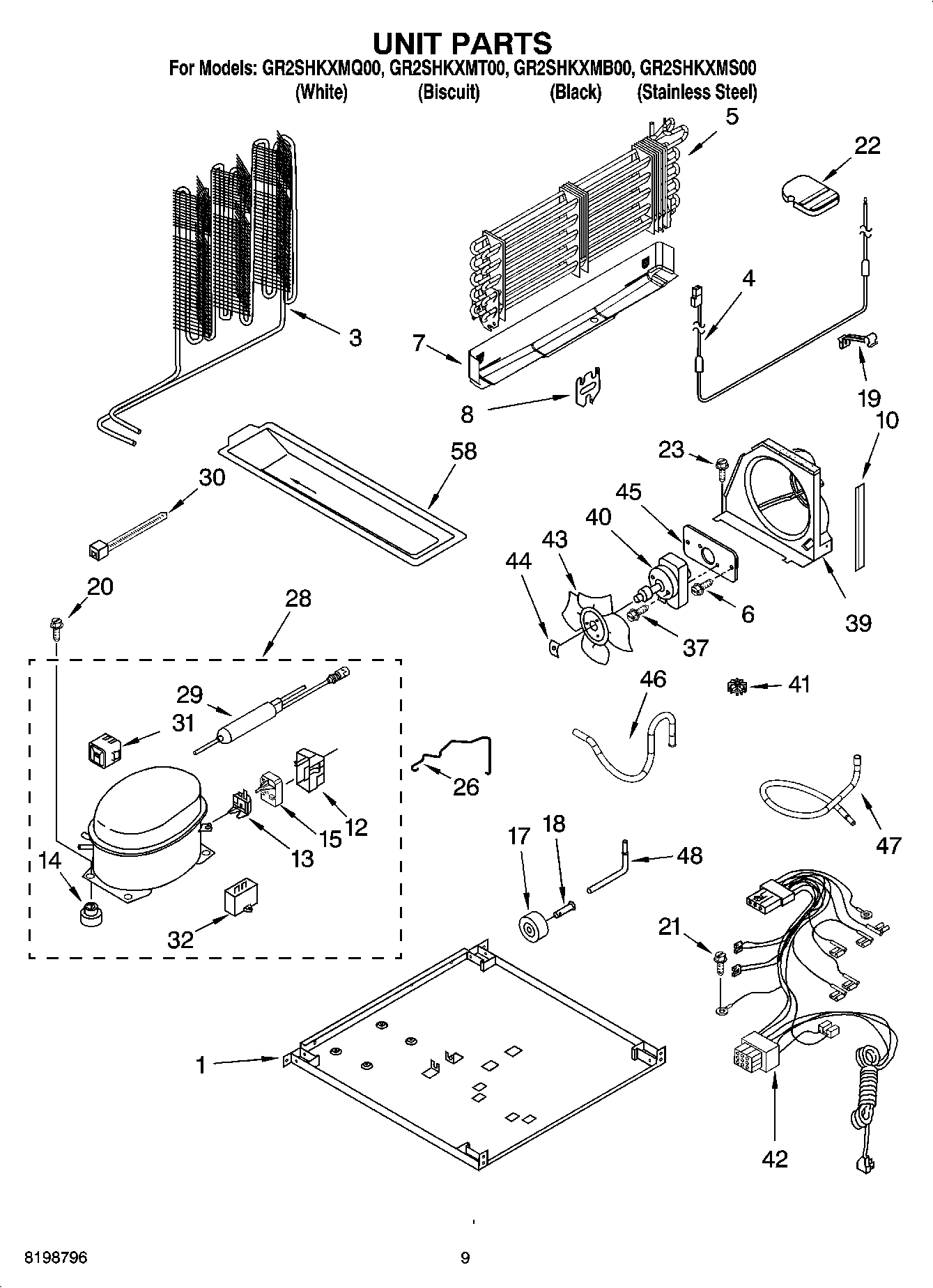

GR2SHKXMB00 05 – UNIT PARTS
Written by
in
GR2SHKXMB00 05 – UNIT PARTS
Products
Position
Product
1
Plate, Unit Mounting
3
WP2214960 Whirlpool Refrigerator Condenser
4
WP2315530 Whirlpool Refrigerator Heater
5
EVAPORATOR ASSY.
6
WP8281196 Whirlpool Screw
7
Drain Pan
8
Bracket, Heater
10
Extension, Air Baffle
12
WP2162358 Whirlpool Refrigerator Terminal Cover
13
WP2214067 Whirlpool Refrigerator Overload Relay
14
WP4387558 Whirlpool Refrigerator Compressor Grommet
14
876811 Whirlpool Grommet
15
8201647 Whirlpool Refrigerator Start Device
17
WPW10475495 Whirlpool Roller Assembly
18
W11594405 Whirlpool Axle
19
Clip, Heater
21
WP489128 Whirlpool Refrigerator Screw
22
Support Block
23
3400518 Whirlpool Oven Foot Mount Screw
26
WP2301684 Whirlpool Retainer
28
W10309988 Whirlpool Refrigerator Compressor
29
W10843121 Whirlpool Refrigerator Tube
30
WPW10339879 Whirlpool Wire Tie
31
W10920279 Whirlpool Refrigerator Start Relay
32
WPW10662129 Whirlpool Refrigerator Run Capacitor
37
8281197 Whirlpool Refrigerator Screw
39
Air Baffle
40
W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
41
Grommet
42
2187382 Whirlpool Refrigerator Wire Harness
43
W11458267 Whirlpool Refrigerator Fan Blade
44
WP486692 Whirlpool Refrigerator Nut
45
Plate
46
2205533 Whirlpool Refrigerator Tube
47
2214924 Whirlpool Refrigerator Tube
48
2154109 Whirlpool Refrigerator Tube
58
WP978025 Whirlpool Refrigerator Valve
58
REFRIGERANT CHARGE 4.0 Ozs. (R134A)
58
VALVE, ACCESS (5/8“)
58
8201826 Whirlpool Refrigerator Evaporator Tray
58
876764 Whirlpool Refrigerator Primary Valve
58
VALVE, ACCESS (1/2“)
58
978026 Whirlpool Refrigerator Primary Valve
58
978027 Whirlpool Refrigerator Primary Valve
58
978030 Whirlpool Refrigerator Valve
58
Following Parts Not Illustrated and Optional Parts Not Included
←
