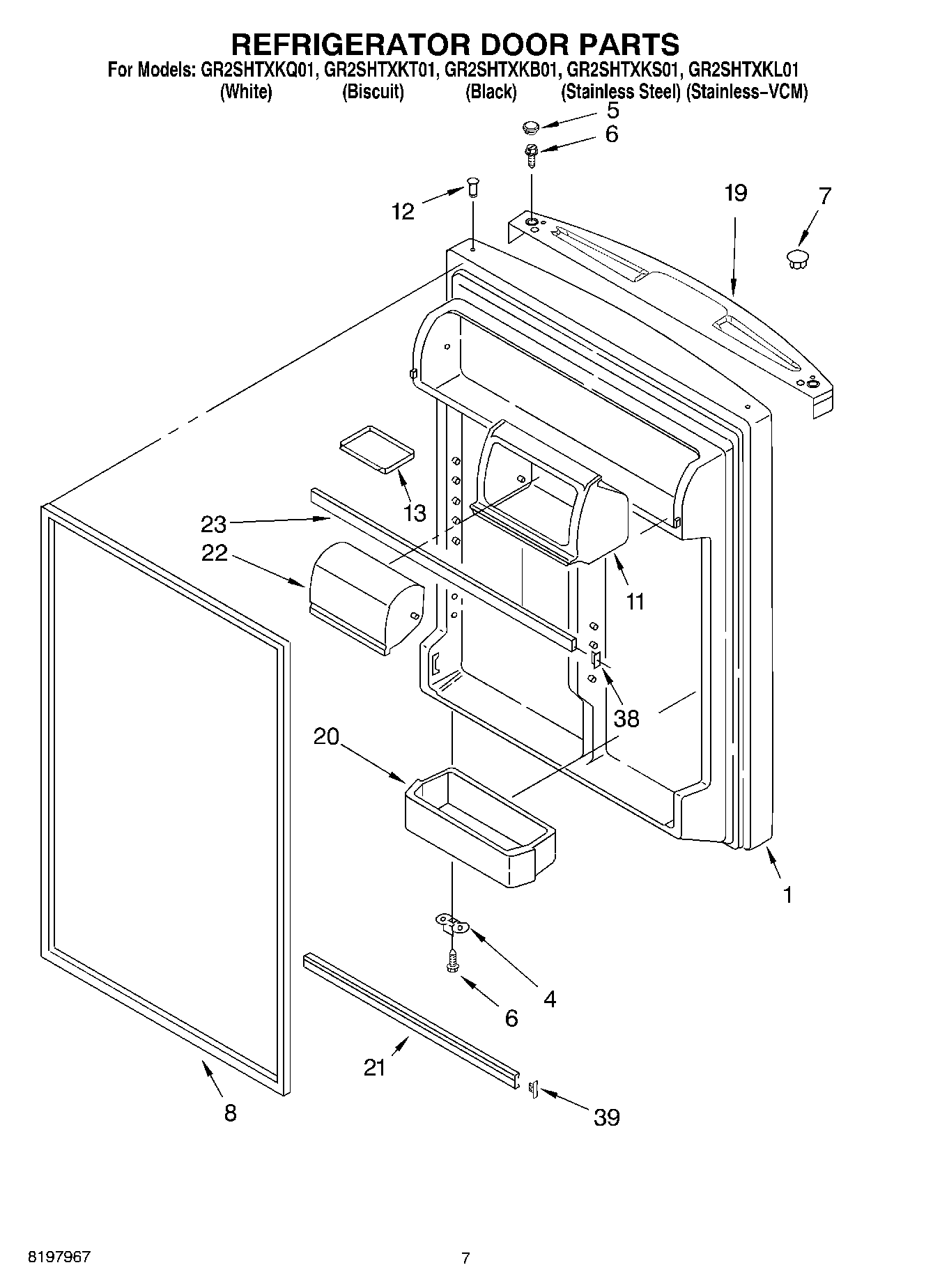

GR2SHTXKL01 04 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Illus. 8 & 12) (White)
1	Refrigerator Door (Includes No.8 & No.12) (Stainless Steel)
1	Refrigerator Door (Includes No.8 & No.12) (Biscuit)
1	Refrigerator Door (Includes Illus. 8 & 12) (Stainless VCM)
1	Refrigerator Door (Includes Illus. 8 & 12) (Black)
4	W11745278 Whirlpool Bracket
5	HOLE PLUG, ENDCAP (BLACK)
5	Hole Plug, Handle (Biscuit)
5	HOLE PLUG, ENDCAP (WHITE)
6	WP681249 Whirlpool Screw Assembly
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	WP2212649 Whirlpool Refrigerator Button Plug
7	WP2212651 Whirlpool Refrigerator Button Plug
8	2159061 Whirlpool Refrigerator Door Gasket
8	2177311 Whirlpool Refrigerator Magnetic Door Gasket
11	Housing Compartment
12	WP2183003 Whirlpool Thimble
13	Tray, Door
19	Endcap, Handle (White)
19	Endcap, Handle (Black)
19	Handle (Biscuit)
20	BIN-CNTLVR
21	WPW10421486 Whirlpool Refrigerator Door Trim
22	DOOR-COMP
23	Trim, Door Shelf
38	Endcap, Door Trim
39	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
