GR2SHTXKL02 07 – FREEZER DOOR

GR2SHTXKL02 07 – FREEZER DOOR

Written by

in

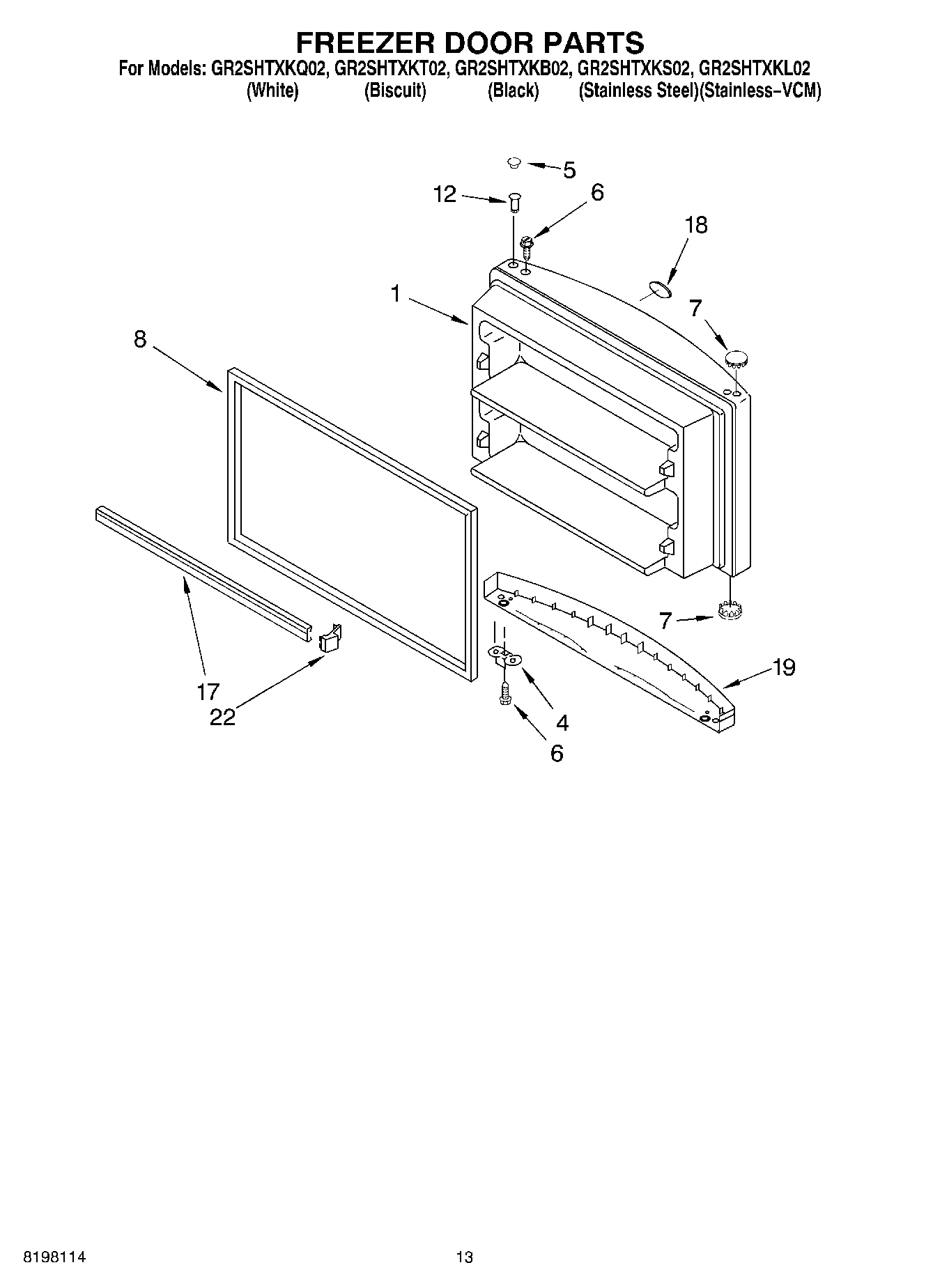

GR2SHTXKL02 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.8& No.12) (Stainless, Brushed)
1Freezer Door (Includes No.8& No.12) (Biscuit)
1Freezer Door (Includes Illus. 6 & 7) (White)
1Freezer Door (Includes Illus. 6 & 7) (Black)
1Freezer Door (Includes Illus. 6 & 7) (Stainless VCM)
4W11745278 Whirlpool Bracket
5Hole Plug, Handle (Biscuit)
5HOLE PLUG, ENDCAP (BLACK)
5HOLE PLUG, ENDCAP (WHITE)
6WP681249 Whirlpool Screw Assembly
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82177310 Whirlpool Refrigerator Door Gasket
8WHITE DOOR GASKET-FIP
12WP2183003 Whirlpool Thimble
17Trim, Door Shelf (2)
18Nameplate
19Endcap, Handle (White)
19Endcap, Handle (Black)
19Handle (Biscuit)
22ENDCAP
