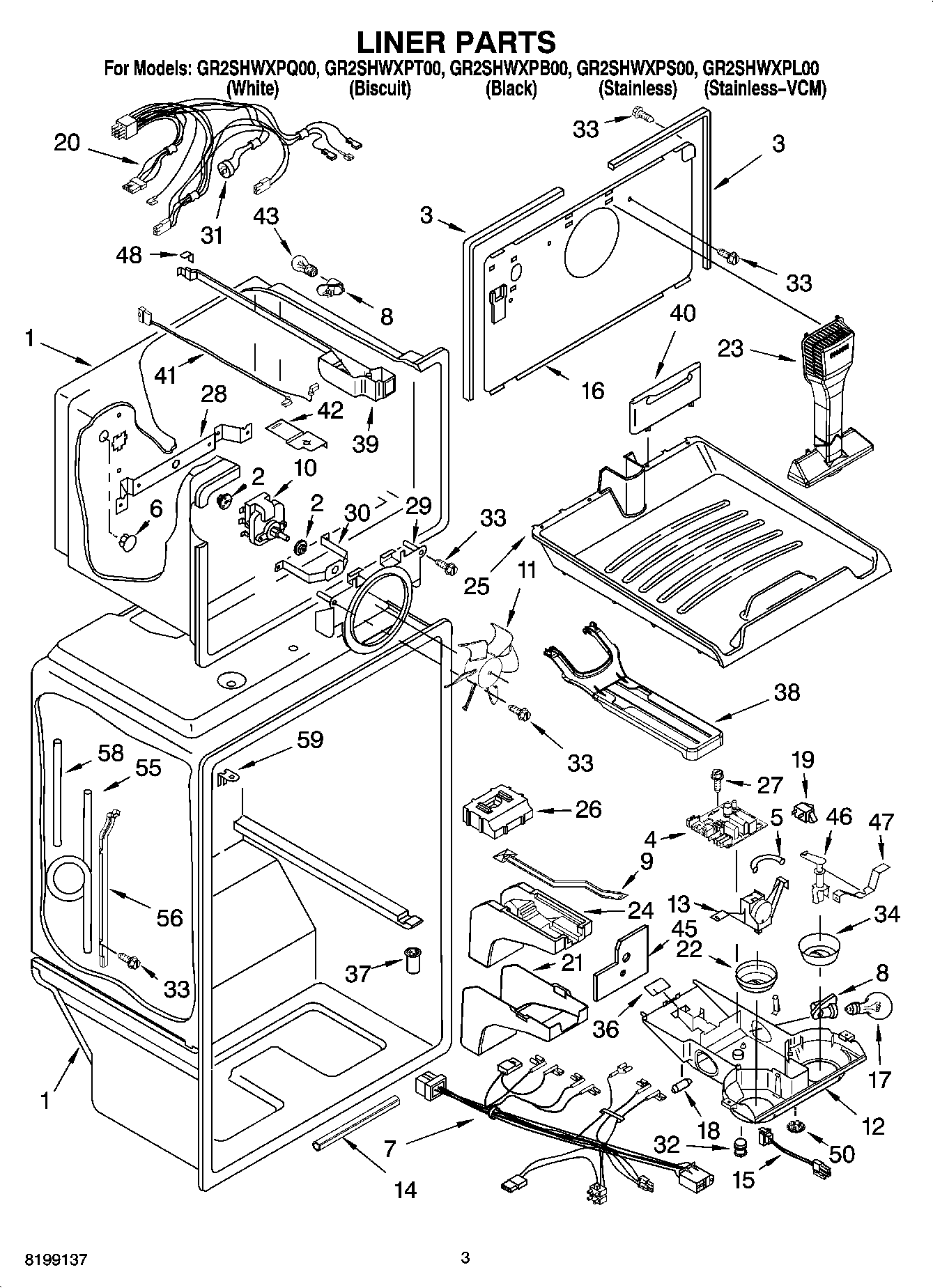

GR2SHWXPS00 02 – LINER PARTS

GR2SHWXPS00 02 – LINER PARTS

Written by

in

GR2SHWXPS00 02 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WP2304093 Whirlpool Refrigerator Electronic Control Board
5	Thermostat Tube Barrier
6	WP941839 Whirlpool Refrigerator Button Plug
7	Wire Assembly, Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assy. (Includes Items 5, 18 & 36)
14	Insulation, Water Tube
15	W10853646 Whirlpool Indicator Light
16	Cover, Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Wire Assembly Fzr. Compartment (Includes Item 25)
21	Cover, Air Diffuser
22	W10829461 Whirlpool Refrigerator Thermal Knob
23	WP2254354 Whirlpool Refrigerator Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	Pullout, Freezer Floor
26	AIR SEPARATOR ASSEMBLY
27	Screw
28	Bracket, Evap. Fan, Rear
29	Bracket, Fan Motor
30	Bracket, Evap. Fan, Front
31	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
32	Lens-LED
33	WP489478 Whirlpool Refrigerator Screw
34	Knob, Damper
36	WP2205079 Whirlpool Refrigerator Seal
37	WP2210509 Whirlpool Refrigerator Tub Valve
38	Retainer, Freezer Floor
39	Housing Base
40	REAR FENCE PULL-OUT FREEZER FLOOR
41	Wiring Harness, Freezer Light
42	Electrical Shield, Freezer Light
43	4396822 Whirlpool Refrigerator Light Bulb
45	Shield, heat
46	Post, Damper
47	Bracket, Damper Knob
48	Gasket, Rear
50	940014 Whirlpool Refrigerator Primary Button Plug
55	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
56	Cover, Tubing
58	Tube, Water Filter
59	Clip, Retainer
