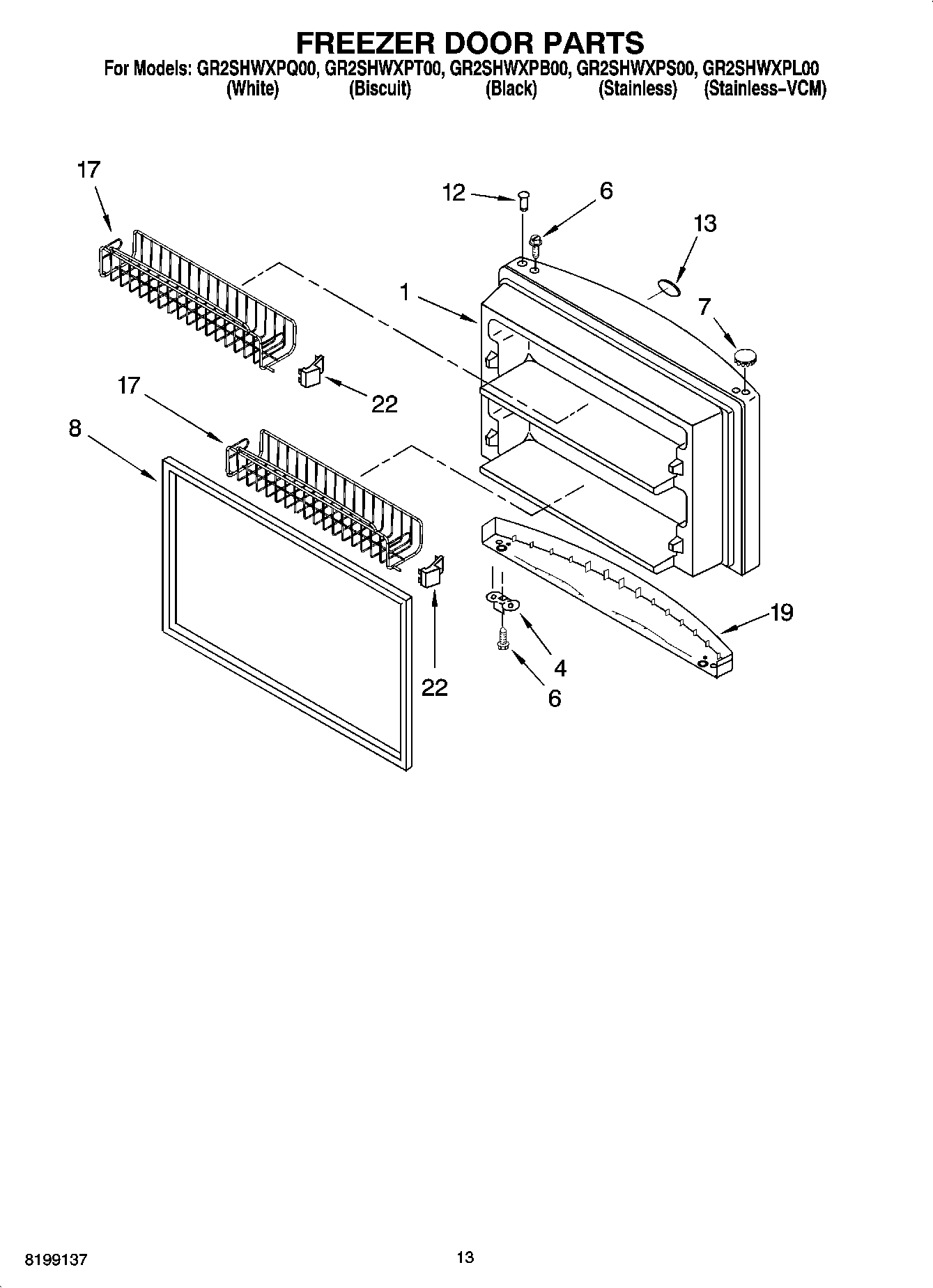

GR2SHWXPS00 07 – FREEZER DOOR PARTS

GR2SHWXPS00 07 – FREEZER DOOR PARTS

Written by

in

GR2SHWXPS00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Illus. 6 & 7) (Stainless VCM)
1Freezer Door (Includes No.8& No.12) (Stainless, Brushed)
1Freezer Door (Includes No.8& No.12) (Biscuit)
1Freezer Door (Includes Illus. 6 & 7) (White)
1Freezer Door (Includes Illus. 6 & 7) (Black)
4W11745278 Whirlpool Bracket
6WP681249 Whirlpool Screw Assembly
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212649 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8WHITE DOOR GASKET-FIP
82177310 Whirlpool Refrigerator Door Gasket
12WP2183003 Whirlpool Thimble
13Nameplate
17BASKET, DOOR (2)
19Endcap, Handle (Black)
19Handle (Biscuit)
19Endcap, Handle (White)
22ENDCAP, BSKT.(R)
22ENDCAP, BSKT.(L)
