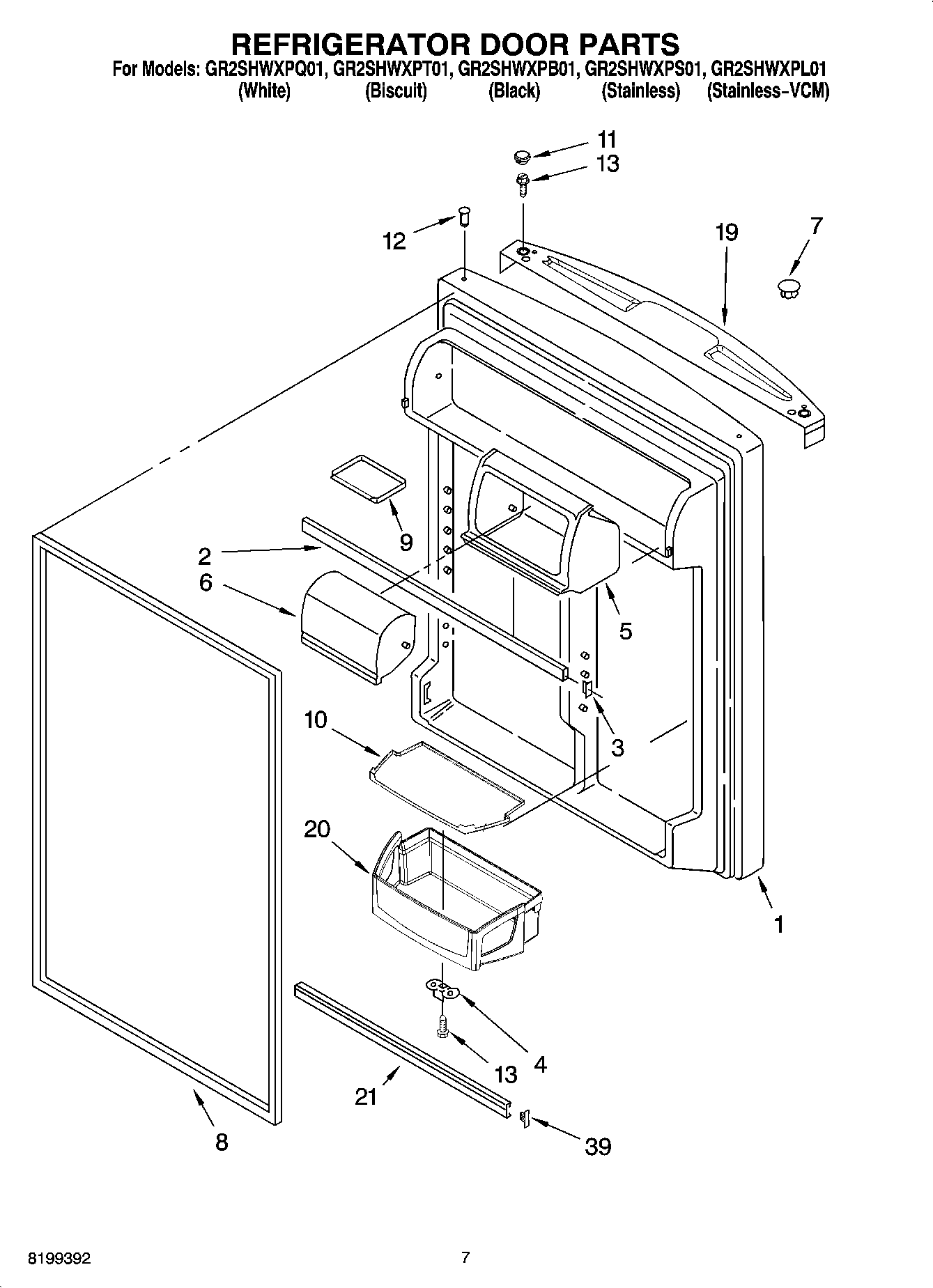

GR2SHWXPS01 04 – REFRIGERATOR DOOR PARTSadmin2025-04-26T12:01:54+00:00GR2SHWXPS01 04 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes Illus. 8 & 12) (Biscuit) |
| 1 | Refrigerator Door (Includes Illus. 8 & 12) (Black) |
| 1 | Refrigerator Door (Includes Illus. 8 & 12) (White) |
| 1 | Refrigerator Door (Includes Illus. 8 & 12) (Stainless-VCM) |
| 1 | Refrigerator Door (Includes Illus. 8 & 12) (Stainless) |
| 2 | Trim, Door Shelf |
| 3 | Endcap, Door Trim |
| 4 | W11745278 Whirlpool Bracket |
| 5 | Housing Compartment |
| 6 | DOOR-COMP |
| 7 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 7 | WP2212649 Whirlpool Refrigerator Button Plug |
| 7 | WP2212651 Whirlpool Refrigerator Button Plug |
| 8 | 2159061 Whirlpool Refrigerator Door Gasket |
| 8 | 2177311 Whirlpool Refrigerator Magnetic Door Gasket |
| 9 | Tray, Door |
| 10 | Mat, Door Bin |
| 11 | HOLE PLUG, ENDCAP (WHITE) |
| 11 | HOLE PLUG, ENDCAP (BLACK) |
| 11 | Hole Plug, Handle (Biscuit) |
| 12 | WP2183003 Whirlpool Thimble |
| 13 | WP681249 Whirlpool Screw Assembly |
| 19 | Handle (Biscuit) |
| 19 | Endcap, Handle (Black) |
| 19 | Endcap, Handle (White) |
| 20 | Bin, Door Shelf (3) |
| 21 | WPW10421486 Whirlpool Refrigerator Door Trim |
| 39 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
