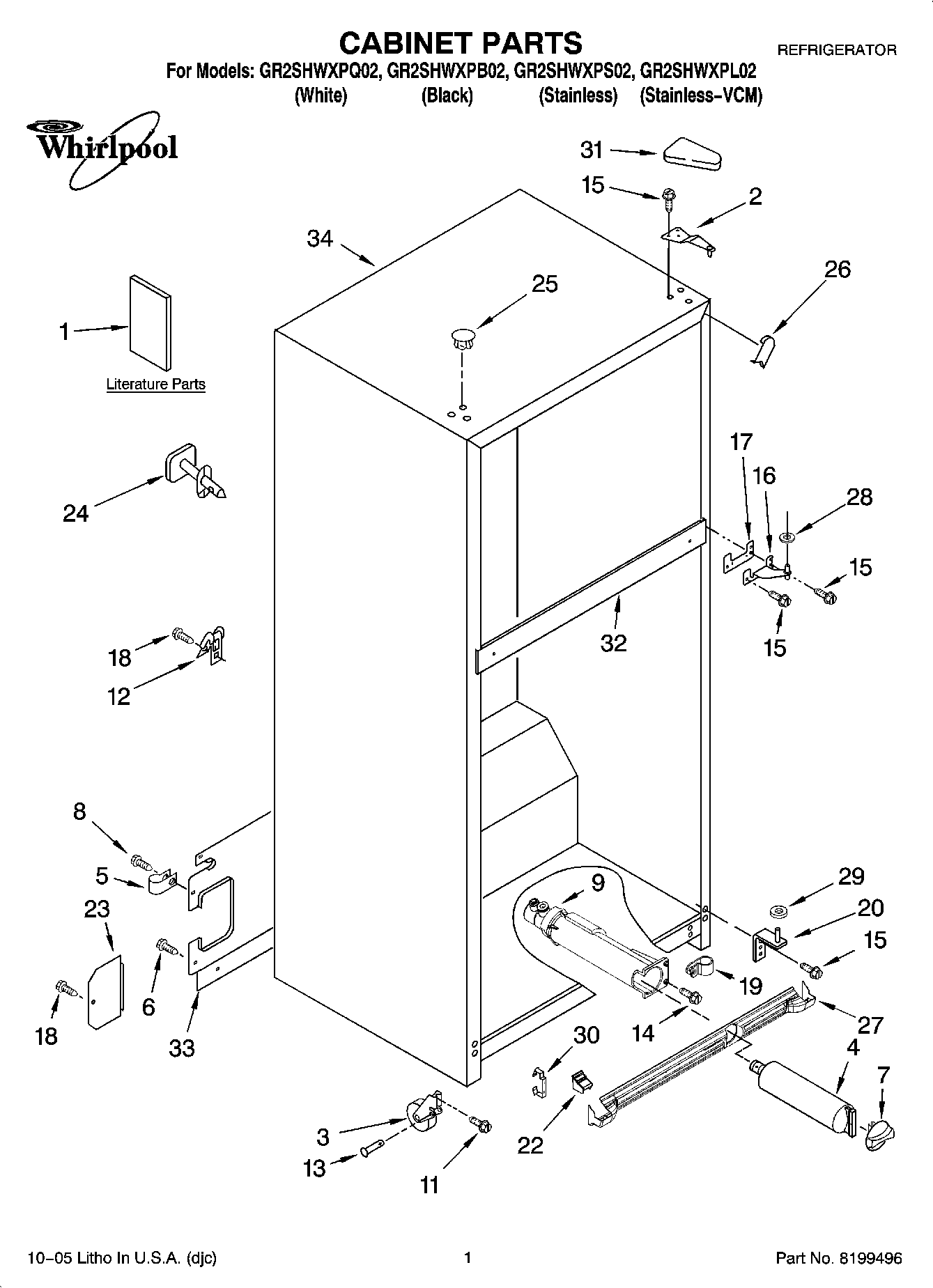

GR2SHWXPS02 01 – CABINET PARTS

GR2SHWXPS02 01 – CABINET PARTS

Written by

in

GR2SHWXPS02 01 – CABINET PARTS

Products

PositionProduct
1Customer Instructions
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Modular Icemaker Service Sheet
1Customer Instruct Sheet, Wtr Filter
1Energy Label
1Service & Wiring Sheet
1Use & Care Guide
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4EDR6D1 Whirlpool EveryDrop® Ice and Water Refrigerator Filter 6 (Dark Bl
5WP488366 Whirlpool Refrigerator Clamp
6WP489427 Whirlpool Refrigerator Screw
7WP2186494B Whirlpool Refrigerator Filter Cap
7WP2186494W Whirlpool Water Filter Cap
8WP488787 Whirlpool Refrigerator Screw
9WP2225521 Whirlpool Water Filter Housing
11WP3400504 Whirlpool Refrigerator Screw
12549193 Whirlpool Refrigerator Power Clamp
13W11594405 Whirlpool Axle
14SCREW
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
19CLAMP
20WP2254473 Whirlpool Refrigerator Door Hinge
22Endcap, Grille (White)
22Endcap, Grille (Black)
23Cover, Water Valve
24Fitting, Water Tube (Not Serviced)
25WP2151652 Whirlpool Refrigerator Button Plug
25WP2183998 Whirlpool Refrigerator Button Plug
26WPW10283959 Whirlpool Refrigerator Filler
26W11252732 Whirlpool Refrigerator Filler
27Grille (Includes Illus. 22 & 30) (Black)
27Grille (Includes Illus. 22 & 30) (White)
28WP489467 Whirlpool Hinge Shim
29WP487576 Whirlpool Washer
30CLIP, GRILLE
31WP2213360 Whirlpool Refrigerator Cover
31WP2213363 Whirlpool Refrigerator Cover
32Rail Center (Not Serviced)
33Cover, Unit
34Cabinet (Not A Serviceable Part)
