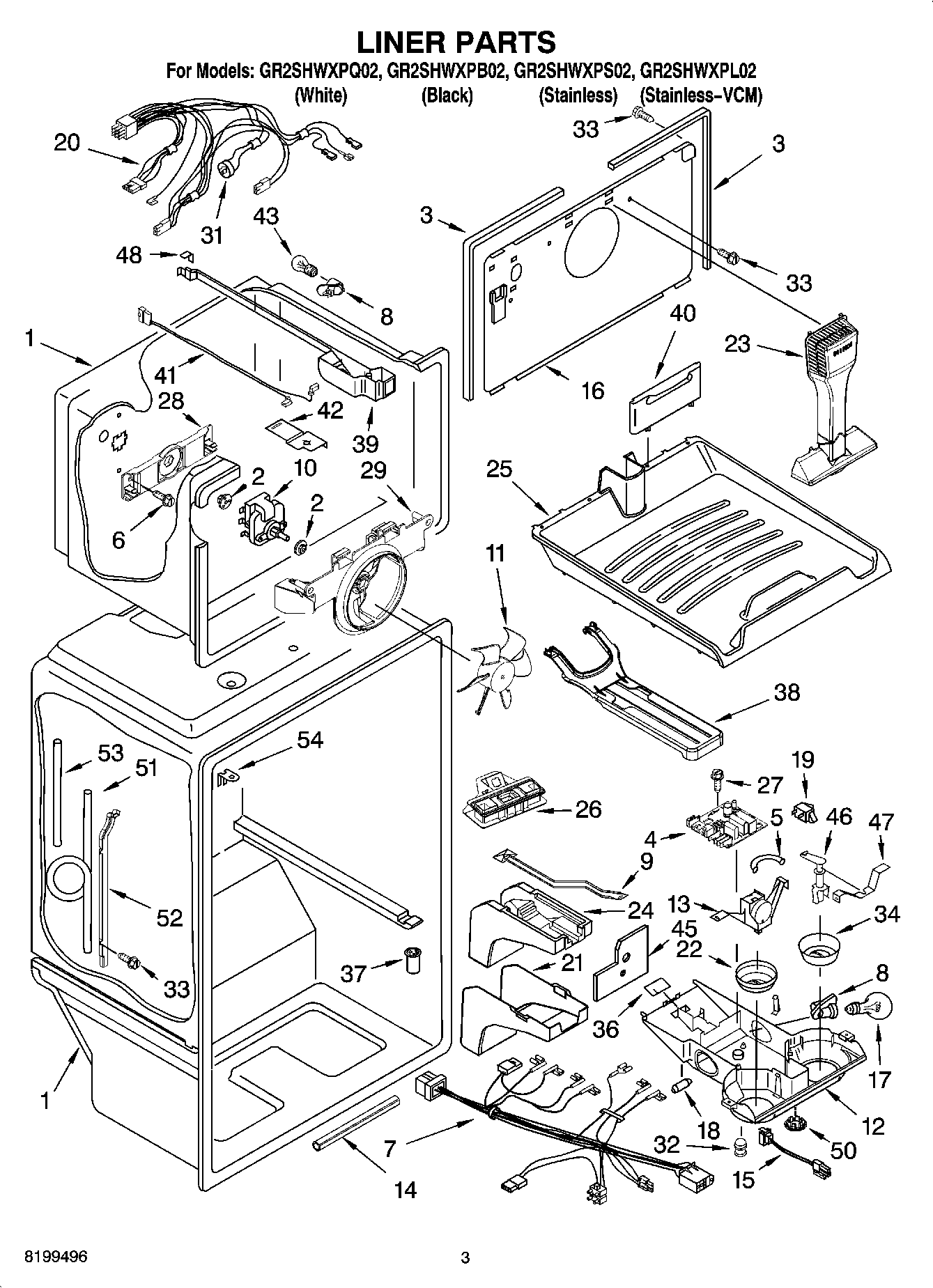

GR2SHWXPS02 02 – LINER PARTS

GR2SHWXPS02 02 – LINER PARTS

Written by

in

GR2SHWXPS02 02 – LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4WP2304093 Whirlpool Refrigerator Electronic Control Board
5Thermostat Tube Barrier
6WP488163 Whirlpool Refrigerator Screw
7Wire Assembly, Control Box
84387478 Whirlpool Refrigerator Light Socket
9Damper, Air
10WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13Thermostat Assy. (Includes Items 5, 18 & 36)
14Insulation, Water Tube
15W10853646 Whirlpool Indicator Light
16Cover, Evaporator
17RANGE ONLY 40W 120V APPL BULB
18Weight, Thermal
19W11384469 Whirlpool Door Switch
202310099 Whirlpool Refrigerator Wire Harness
21Cover, Air Diffuser
22W10829461 Whirlpool Refrigerator Thermal Knob
23WP2254354 Whirlpool Refrigerator Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
25Pullout, Freezer Floor
26Air Separator Assembly
27Screw
282254454 Whirlpool Refrigerator Bracket
29BRACKET, FAN MOTOR
31WP2321800 Whirlpool Refrigerator Bimetallic Defrost
32Lens-LED
33WP489478 Whirlpool Refrigerator Screw
34Knob, Damper
36WP2205079 Whirlpool Refrigerator Seal
37WP2210509 Whirlpool Refrigerator Tub Valve
38Retainer, Freezer Floor
39Housing Base
40REAR FENCE PULL-OUT FREEZER FLOOR
41Wiring Harness, Freezer Light
42Electrical Shield, Freezer Light
434396822 Whirlpool Refrigerator Light Bulb
45Shield, heat
46Post, Damper
47Bracket, Damper Knob
48Gasket, Rear
50940014 Whirlpool Refrigerator Primary Button Plug
518201597 Whirlpool Inlet Water Fill Tube Kit Filter
52Cover, Tubing
53Tube, Water Filter
54Clip, Retainer
