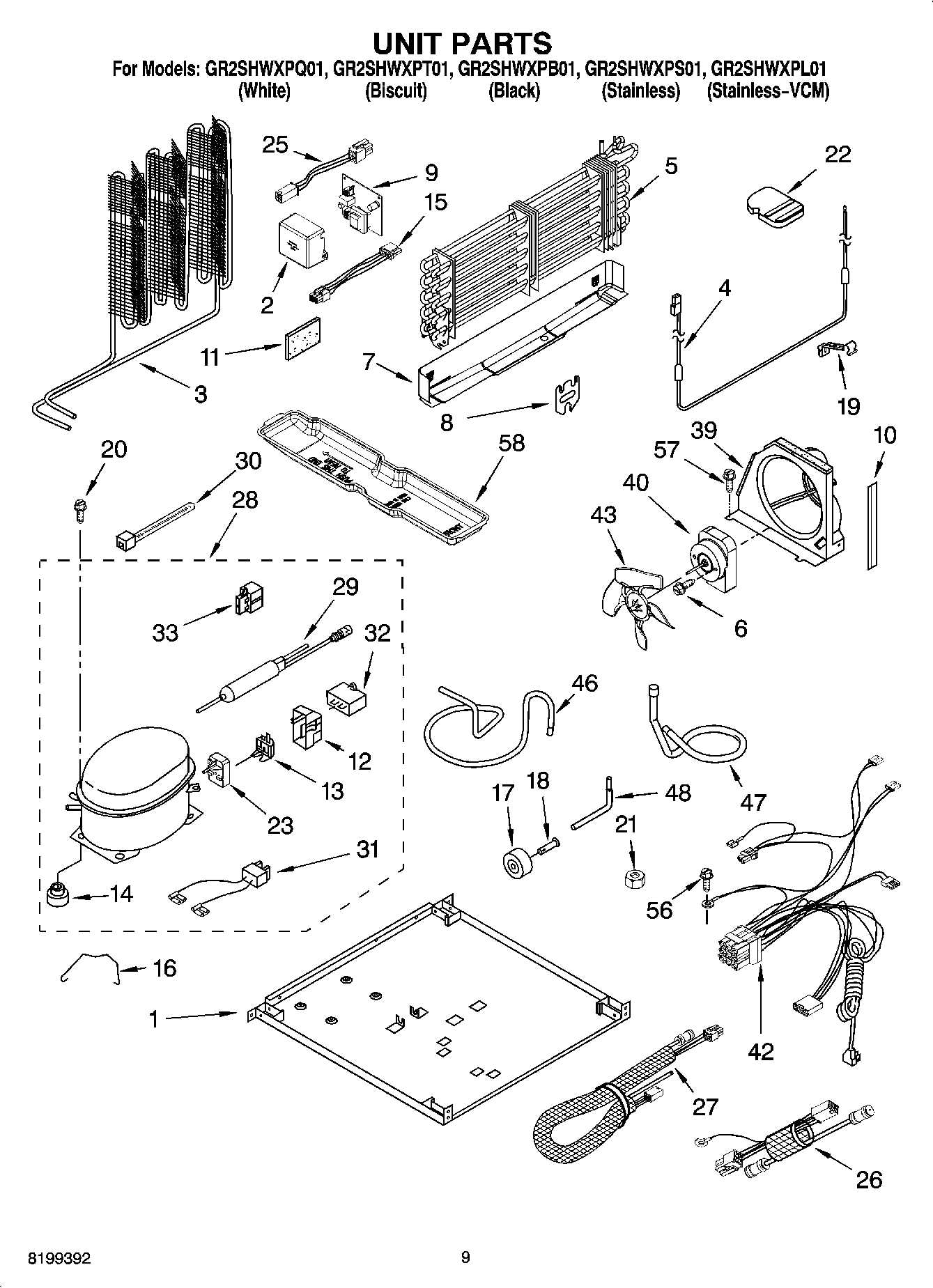

GR2SHWXPT01 05 – UNIT PARTS

Products

Position	Product
1	Plate, Unit Mounting
2	Control Box, Dispenser
3	WP2214960 Whirlpool Refrigerator Condenser
4	WPW10140847 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	WPW10171469 Whirlpool Refrigerator Screw
7	Drain Pan
8	Bracket, Heater
9	Power Supply, Dispenser
10	Extension, Air Baffle
11	W11553819 Whirlpool Refrigerator Insulation
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2214067 Whirlpool Refrigerator Overload Relay
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	Harness, Dispenser (High)
16	2212996 Whirlpool Refrigerator Retainer
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	Nut (Not Serviced)
22	Support Block
23	WP2225929 Whirlpool Refrigerator Start Device
25	Harness, Dispenser (Low)
26	Harness, Side Rail
27	Harness, Front Rail
28	W10309988 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
31	WP2172890 Whirlpool Refrigerator Wire
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	W10920279 Whirlpool Refrigerator Start Relay
39	Air Baffle
40	WP2188874 Whirlpool Refrigerator Condenser Motor
42	Wire Assy. Unit
43	W11458267 Whirlpool Refrigerator Fan Blade
46	Tube, Discharge
47	Tube, Suction
48	2154109 Whirlpool Refrigerator Tube
56	WP489128 Whirlpool Refrigerator Screw
57	3400518 Whirlpool Oven Foot Mount Screw
58	WPL ARI68316A1
58	WPL ARI68315A6
58	978027 Whirlpool Refrigerator Primary Valve
58	VALVE, ACCESS (5/8“)
58	876764 Whirlpool Refrigerator Primary Valve
58	978026 Whirlpool Refrigerator Primary Valve
58	8201826 Whirlpool Refrigerator Evaporator Tray
58	978030 Whirlpool Refrigerator Valve
58	VALVE, ACCESS (1/2“)
58	WP978025 Whirlpool Refrigerator Valve
