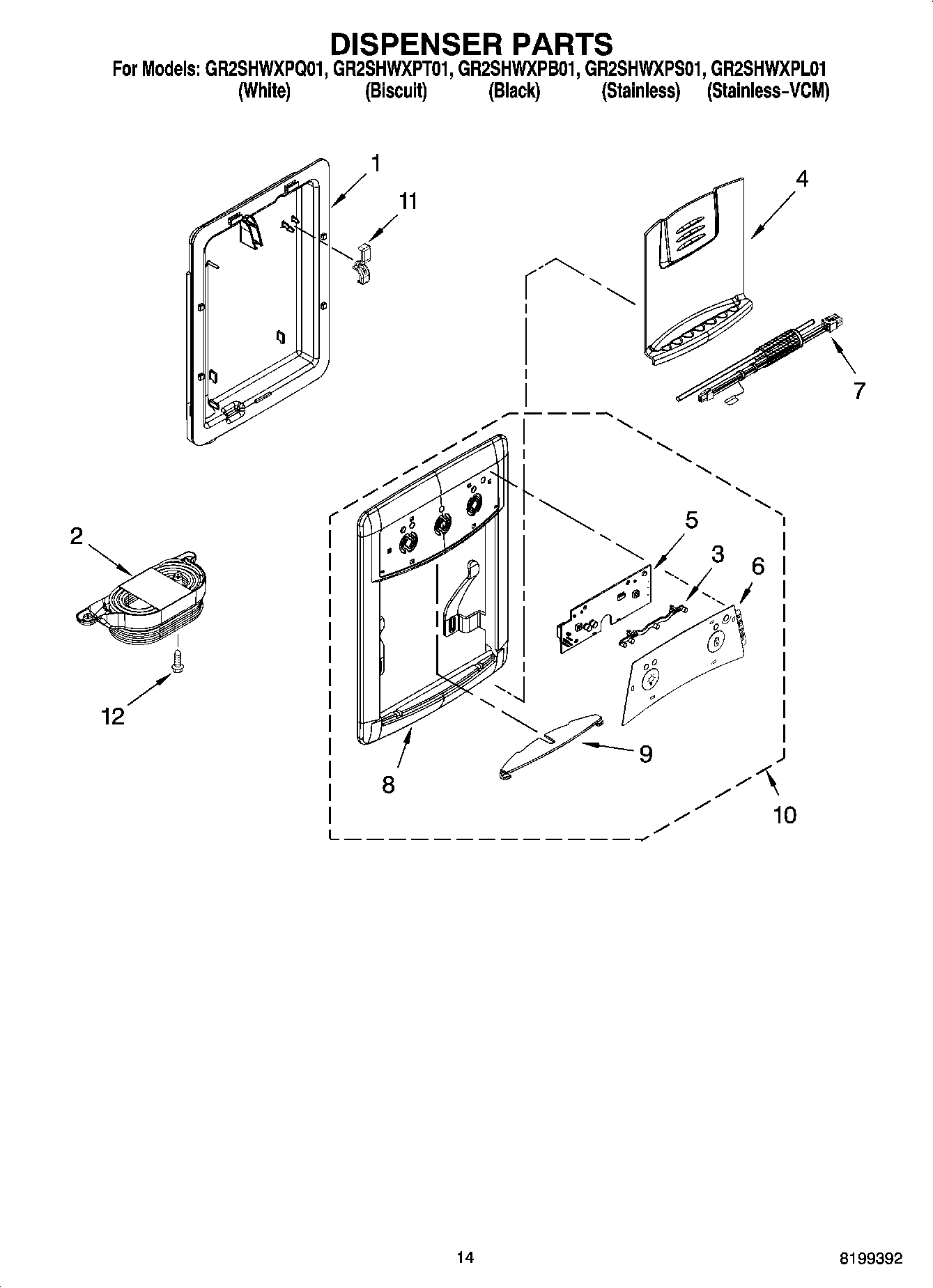

GR2SHWXPT01 08 – DISPENSER PARTS, OPTIONAL PARTS

Written by

Products

Position	Product
	WPL ARI68324A7
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799832
	WPL 799833
	WPL 876029
	8171357 Whirlpool Spray Nozzle
	PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
	PAINT, BULK (1 QT. GRAPHITE)
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WPL ARI68323A6
	WPL ARI68321A8
	WPL ARI68322A9
	TAPE, VINYL (3/4 X 108“)
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	Torx Key
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	606755 Whirlpool Refrigerator Bag
	WP542638 Whirlpool Refrigerator Grease
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
	212643 Whirlpool Refrigerator Permagum Sealer
	876370 Whirlpool Refrigerator Insulation
	833938 Whirlpool Refrigerator Terminal
1	Housing, Dispenser (Not Serviced)
2	RESERVOIR
3	Light Pipe
4	Lever, Water Dispenser (Biscuit)
4	Lever, Water Dispenser (Black)
4	Lever, Water Dispenser (White)
5	User Interface, Dispenser (Includes Illus. 3)
6	Overlay, Front Cover (Not Available Order 10)
7	Wire Assembly
8	Front Cover, Housing (Not Available Order 10)
9	Diffuser, Dispenser (Not Available Order 10)
10	Front Cover Assembly (Includes Items 3,5,6,8 & 9) (White)
10	Front Cover Assembly (Includes Items 3,5,6,8 & 9) (Black)
10	Front Cover Assembly (Includes Items 3,5,6,8 & 9) (Biscuit)
11	Switch, Toggle
12	W11544659 Whirlpool Refrigerator Screw
