GR2SHWXVB00 04 – REFRIGERATOR DOOR PARTS

GR2SHWXVB00 04 – REFRIGERATOR DOOR PARTS

Written by

in

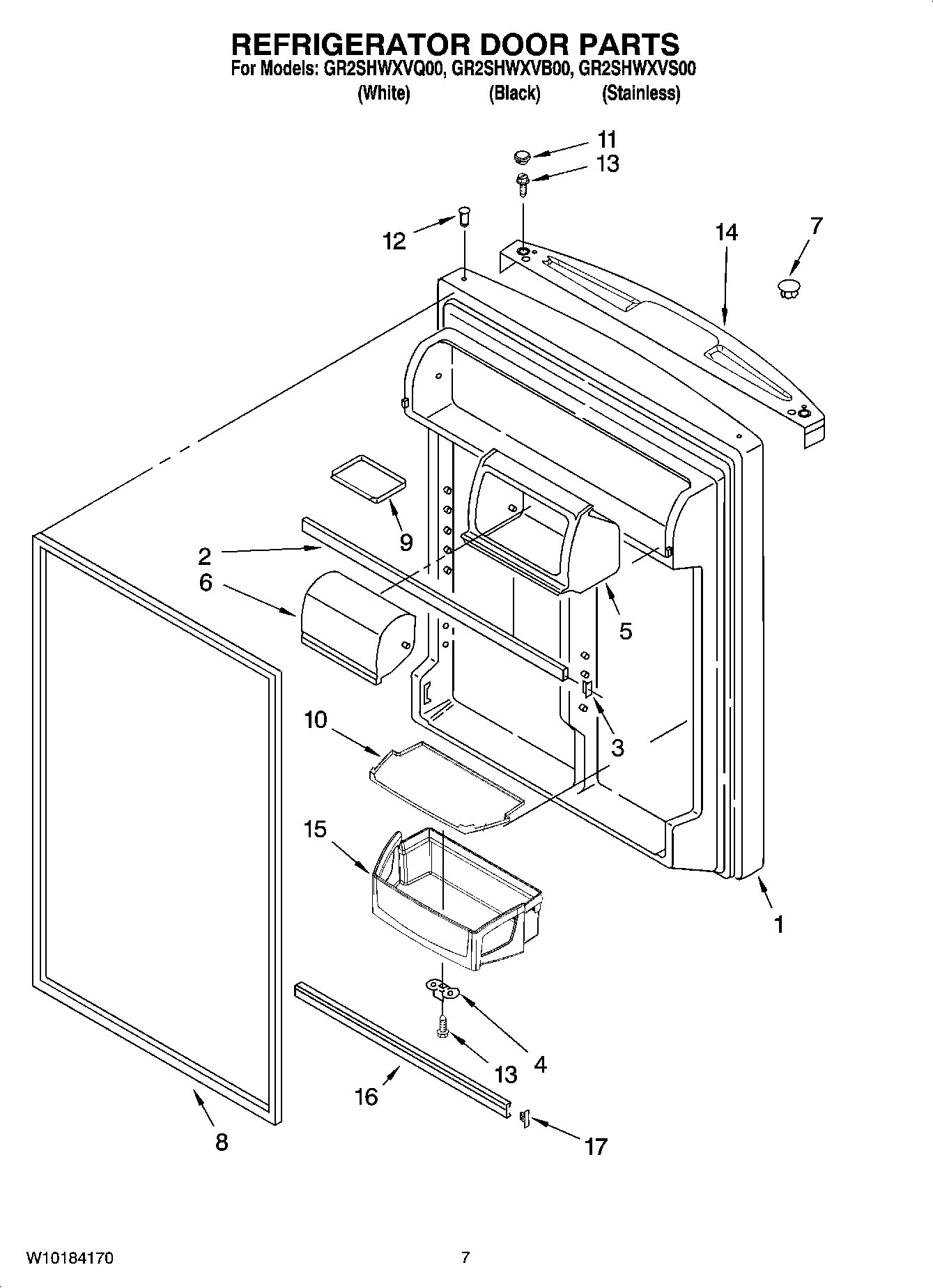

GR2SHWXVB00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 8 & 12) (Stainless)
1Refrigerator Door (Includes Illus. 8 & 12) (White)
1Refrigerator Door (Includes Illus. 8 & 12) (Black)
2Trim, Door Shelf
3Endcap, Door Trim
4W11745278 Whirlpool Bracket
5Housing Compartment
6DOOR-COMP
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82177311 Whirlpool Refrigerator Magnetic Door Gasket
82159061 Whirlpool Refrigerator Door Gasket
9Tray, Door
10Mat, Door Bin
11HOLE PLUG, ENDCAP (WHITE)
11HOLE PLUG, ENDCAP (BLACK)
12WP2183003 Whirlpool Thimble
13WP681249 Whirlpool Screw Assembly
14Endcap, Handle (Black)
14Endcap, Handle (White)
15Bin, Door Shelf (3)
16WPW10421486 Whirlpool Refrigerator Door Trim
17WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
