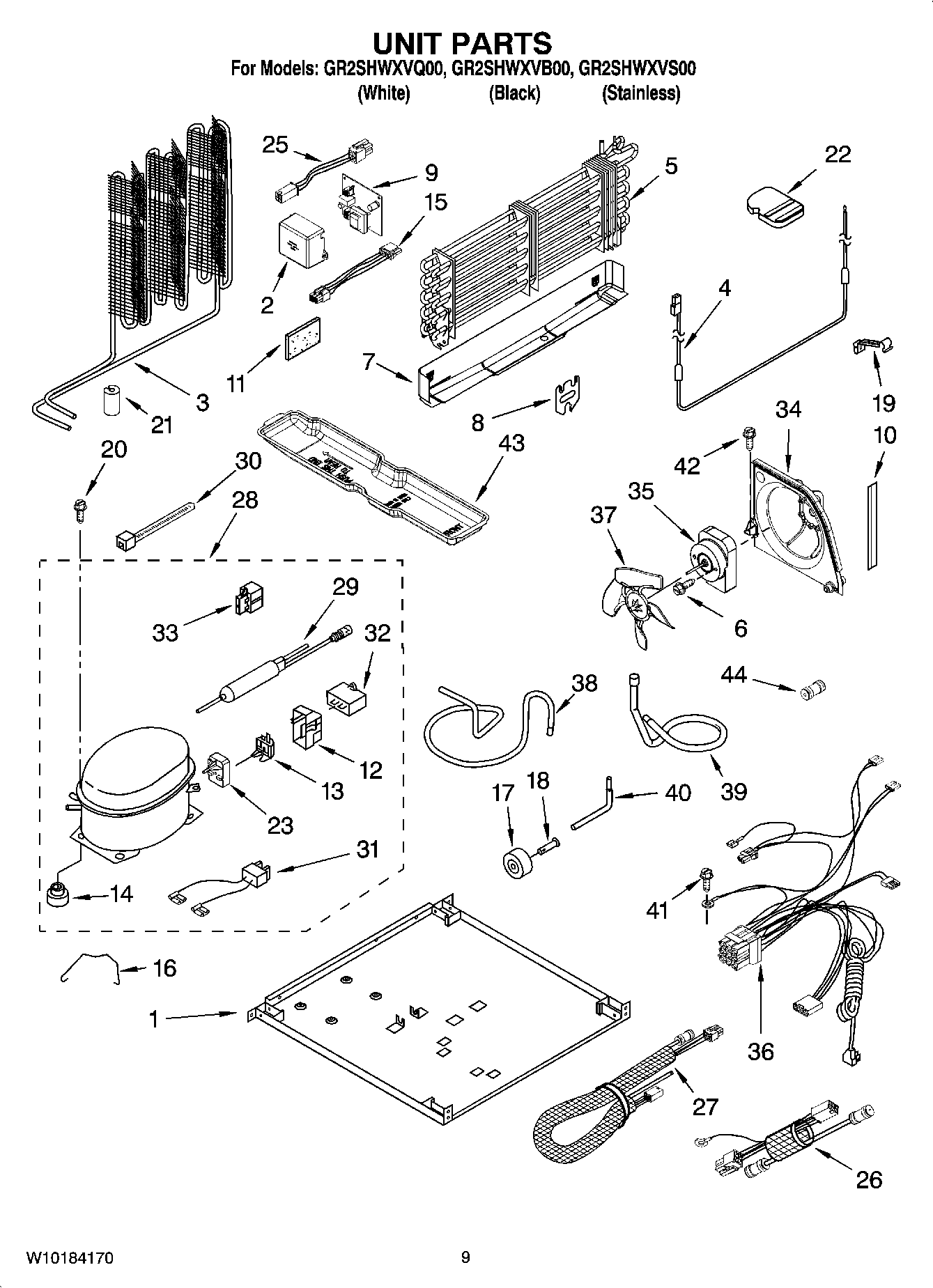

GR2SHWXVB00 05 – UNIT PARTS

Products

Position	Product
	978026 Whirlpool Refrigerator Primary Valve
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	WPL ARI68331A9
	WPL ARI68330A5
	VALVE, ACCESS (5/8“)
	VALVE, ACCESS (1/2“)
1	Plate, Unit Mounting
2	Control Box, Dispenser
3	WP2214960 Whirlpool Refrigerator Condenser
4	WPW10140847 Whirlpool Refrigerator Heater
5	EVAPORATOR ASSY.
6	WPW10171469 Whirlpool Refrigerator Screw
7	Drain Pan
8	Bracket, Heater
9	Power Supply, Dispenser
10	Extension, Air Baffle
11	W11553819 Whirlpool Refrigerator Insulation
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2214067 Whirlpool Refrigerator Overload Relay
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	Harness, Dispenser (High)
16	2223314 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	W10852725 Whirlpool Refrigerator Grommet
22	Support Block
23	WPW10197426 Whirlpool Refrigerator Start Device
25	Harness, Dispenser (Low)
26	Harness, Side Rail
27	Harness, Front Rail
28	W10309988 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
31	WP2172890 Whirlpool Refrigerator Wire
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	W10920279 Whirlpool Refrigerator Start Relay
34	WP2315541 Whirlpool Refrigerator Air Baffle
35	WP2188874 Whirlpool Refrigerator Condenser Motor
36	Wire Assy. Unit
37	W11458267 Whirlpool Refrigerator Fan Blade
38	Tube, Discharge
39	2214924 Whirlpool Refrigerator Tube
40	2154109 Whirlpool Refrigerator Tube
41	WP489128 Whirlpool Refrigerator Screw
42	3400518 Whirlpool Oven Foot Mount Screw
43	WP2254574 Whirlpool Refrigerator Evaporator Tray
44	WP4373559 Whirlpool Fitting
