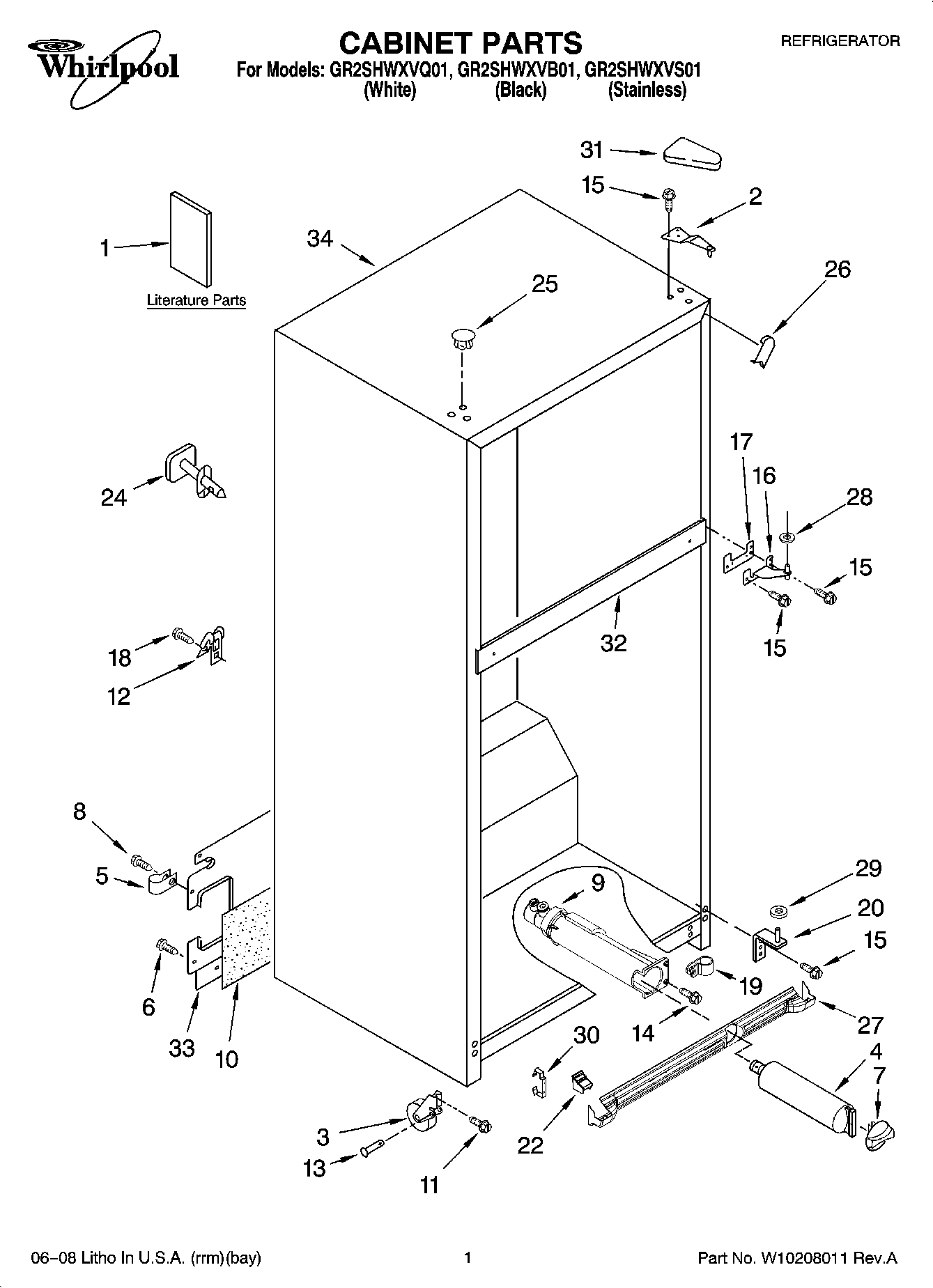

GR2SHWXVQ01 01 – CABINET PARTS

GR2SHWXVQ01 01 – CABINET PARTS

Written by

in

GR2SHWXVQ01 01 – CABINET PARTS

Products

Position	Product
1	Modular Icemaker Service Sheet
1	Customer Instruct Sheet, Wtr Filter
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Service & Wiring Sheet
1	Use & Care Guide (Bilingual)
1	Use & Care Guide (Trilingual)
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Energy Label
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	EDR6D1 Whirlpool EveryDrop® Ice and Water Refrigerator Filter 6 (Dark Bl
5	WP488366 Whirlpool Refrigerator Clamp
6	WP489427 Whirlpool Refrigerator Screw
7	WP2186494W Whirlpool Water Filter Cap
7	WP2186494B Whirlpool Refrigerator Filter Cap
8	WP488787 Whirlpool Refrigerator Screw
9	WP2225521 Whirlpool Water Filter Housing
10	Insulation
11	WP3400504 Whirlpool Refrigerator Screw
12	549193 Whirlpool Refrigerator Power Clamp
13	W11594405 Whirlpool Axle
14	SCREW
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183852 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
19	CLAMP
20	WP2254473 Whirlpool Refrigerator Door Hinge
22	Endcap, Grille (Black)
22	Endcap, Grille (White)
24	Fitting, Water Tube (Not Serviced)
25	WP2151652 Whirlpool Refrigerator Button Plug
25	WP2183998 Whirlpool Refrigerator Button Plug
26	WPW10283959 Whirlpool Refrigerator Filler
26	W11252732 Whirlpool Refrigerator Filler
27	Grille (Includes Illus. 22 & 30) (White)
27	Grille (Includes Illus. 22 & 30) (Black)
28	WP489467 Whirlpool Hinge Shim
29	WP487576 Whirlpool Washer
30	CLIP, GRILLE
31	WP2213363 Whirlpool Refrigerator Cover
31	WP2213360 Whirlpool Refrigerator Cover
32	Rail, Center (Not Serviced)
33	Cover, Unit
34	Cabinet, (Not A Serviceable Part)
