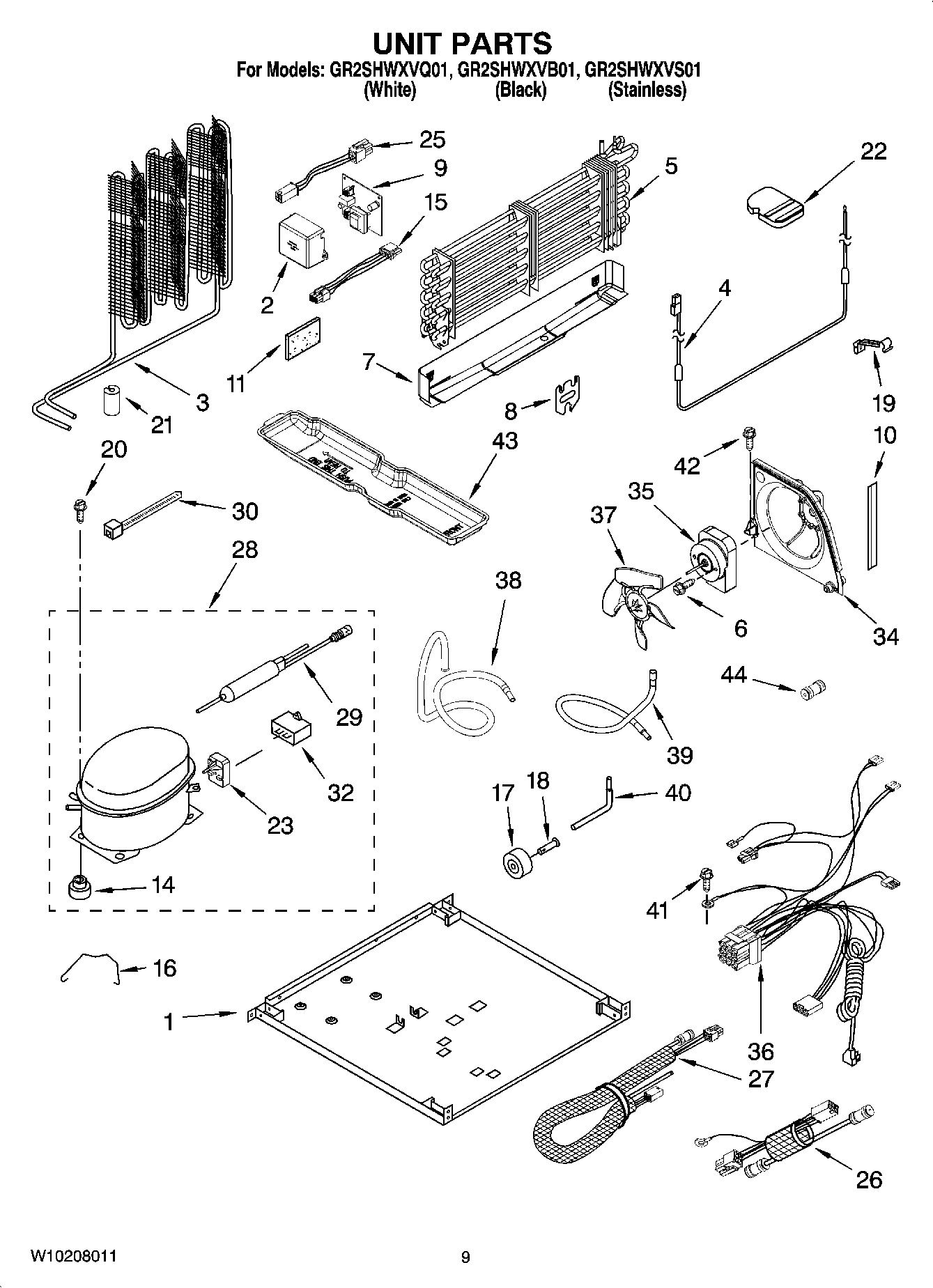

GR2SHWXVQ01 05 – UNIT PARTS

Products

Position	Product
	978027 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	WPL ARI68379A8
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Option
	VALVE, ACCESS (5/8“)
1	Plate, Unit Mounting
2	Control Box, Dispenser
3	WP2214960 Whirlpool Refrigerator Condenser
4	WPW10140847 Whirlpool Refrigerator Heater
5	EVAPORATOR ASSY.
6	W11501418 Whirlpool Refrigerator Screw
7	Drain Pan
8	Bracket, Heater
9	Power Supply, Dispenser
10	Extension, Air Baffle
11	W11553819 Whirlpool Refrigerator Insulation
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	Harness, Dispenser (High)
16	W11661170 Whirlpool Clip
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	W10852725 Whirlpool Refrigerator Grommet
22	Support Block
23	WPW10194431 Whirlpool Start Device
25	Harness, Dispenser (Low)
26	Harness, Side Rail
27	Harness, Front Rail
28	W10233960 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
34	WP2315541 Whirlpool Refrigerator Air Baffle
35	WP2188874 Whirlpool Refrigerator Condenser Motor
36	Wire Assy. Unit
37	W11458267 Whirlpool Refrigerator Fan Blade
38	Tube, Discharge
39	Tube, Suction
40	2154109 Whirlpool Refrigerator Tube
41	WP489128 Whirlpool Refrigerator Screw
42	3400518 Whirlpool Oven Foot Mount Screw
43	WP2254574 Whirlpool Refrigerator Evaporator Tray
44	WP4373559 Whirlpool Fitting
