GR2SHWXVQ01 06 – ICEMAKER PARTS

GR2SHWXVQ01 06 – ICEMAKER PARTS

Written by

in

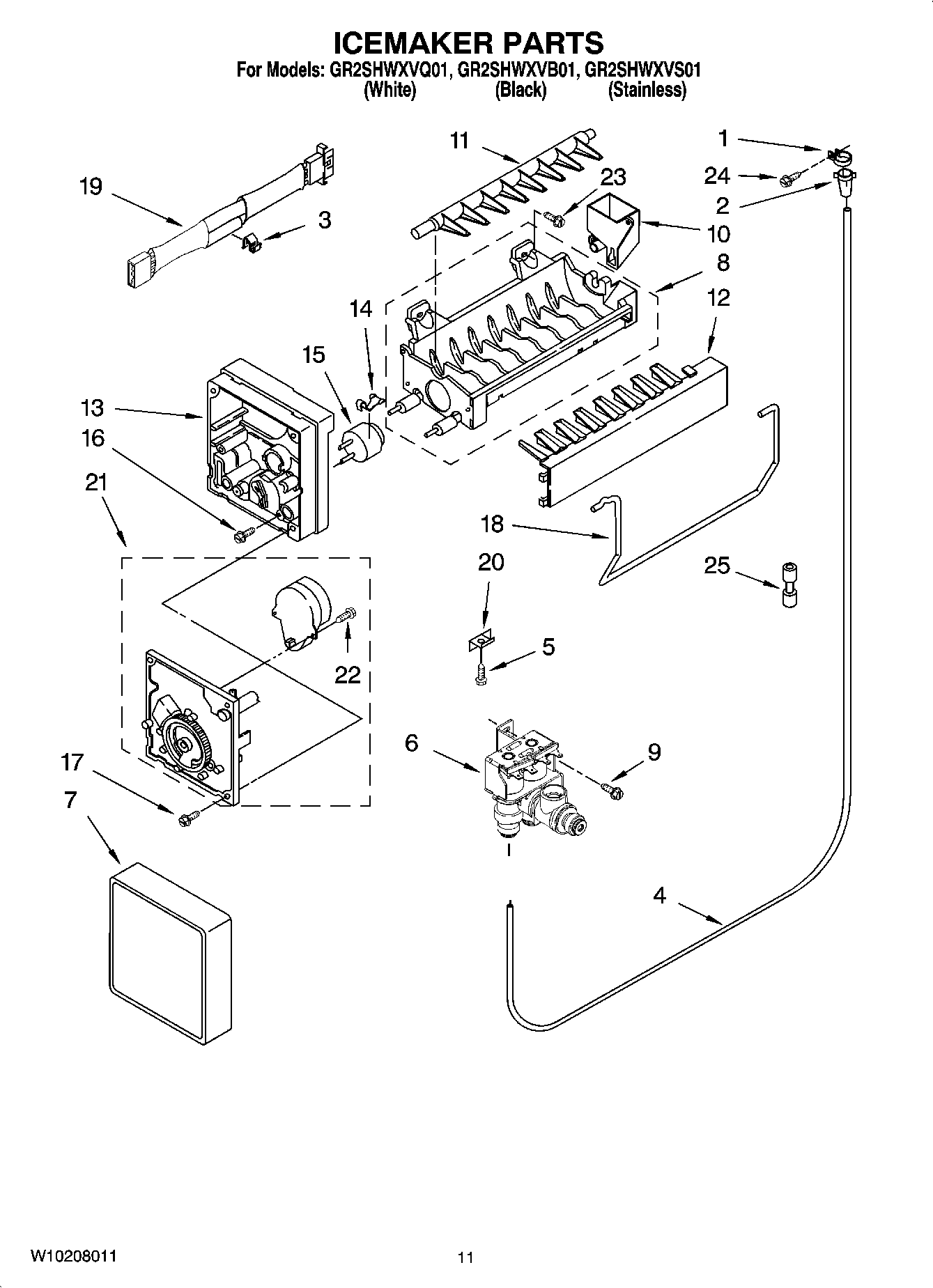

GR2SHWXVQ01 06 – ICEMAKER PARTS

Products

PositionProduct
1WP488878 Whirlpool Refrigerator Tube Clamp
24387491 Whirlpool Refrigerator Insert
3WP628379 Whirlpool Refrigerator Clip
4Tube Water
5WP489478 Whirlpool Refrigerator Screw
6WP2188808 Whirlpool Refrigerator Inlet Valve
7WPW10289690 Whirlpool Ice Maker Cover
8WPW10190929 Whirlpool Refrigerator Ice Maker Mold
9WP489442 Whirlpool Refrigerator Screw
10W10122561 Whirlpool Refrigerator Cup Fill
11WP627843 Whirlpool Refrigerator Ejector Arm
12WP2182124 Whirlpool Refrigerator Stripper Arm
13WP2195914 Whirlpool Refrigerator Ice Maker Housing
14WP2315522 Whirlpool Refrigerator Clip
15WP627985 Whirlpool Icemaker Cycling Thermostat
168533917 Whirlpool Refrigerator Screw
17WP681249 Whirlpool Screw Assembly
18WP627792 Whirlpool Refrigerator Shut Off Arm
19WP2187464 Whirlpool Refrigerator Wire Harness
20W11500948 Whirlpool Refrigerator Bracket
21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22489136 Whirlpool Refrigerator Screw
23WP488163 Whirlpool Refrigerator Screw
24WP488787 Whirlpool Refrigerator Screw
25WP2198677 Whirlpool Refrigerator Connector
1004317943 Whirlpool Refrigerator Ice Maker Assembly
