GR2SHWXVQ01 07 – FREEZER DOOR PARTS

GR2SHWXVQ01 07 – FREEZER DOOR PARTS

Written by

in

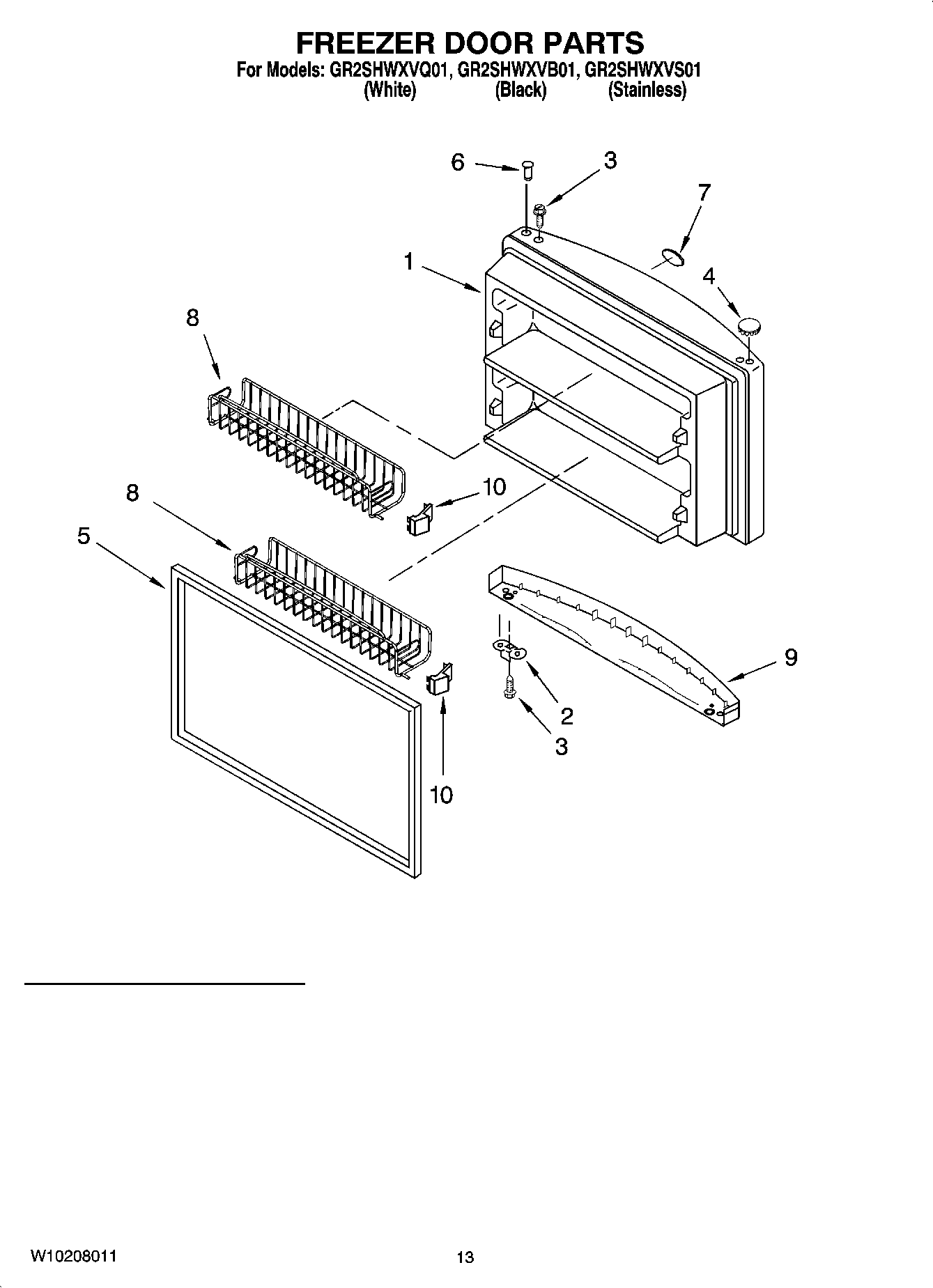

GR2SHWXVQ01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Illus. 6 & 7) (White)
1Freezer Door (Includes Illus. 6 & 7) (Black)
1Freezer Door (Includes Illus. 6 & 7) (Stainless)
2W11745278 Whirlpool Bracket
3WP681249 Whirlpool Screw Assembly
4WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
4WP2212651 Whirlpool Refrigerator Button Plug
52177310 Whirlpool Refrigerator Door Gasket
5WHITE DOOR GASKET-FIP
6WP2183003 Whirlpool Thimble
7Nameplate
8BASKET, DOOR (2)
9Endcap, Handle (Black)
9Endcap, Handle (White)
10ENDCAP, BSKT.(L)
10ENDCAP, BSKT.(R)
