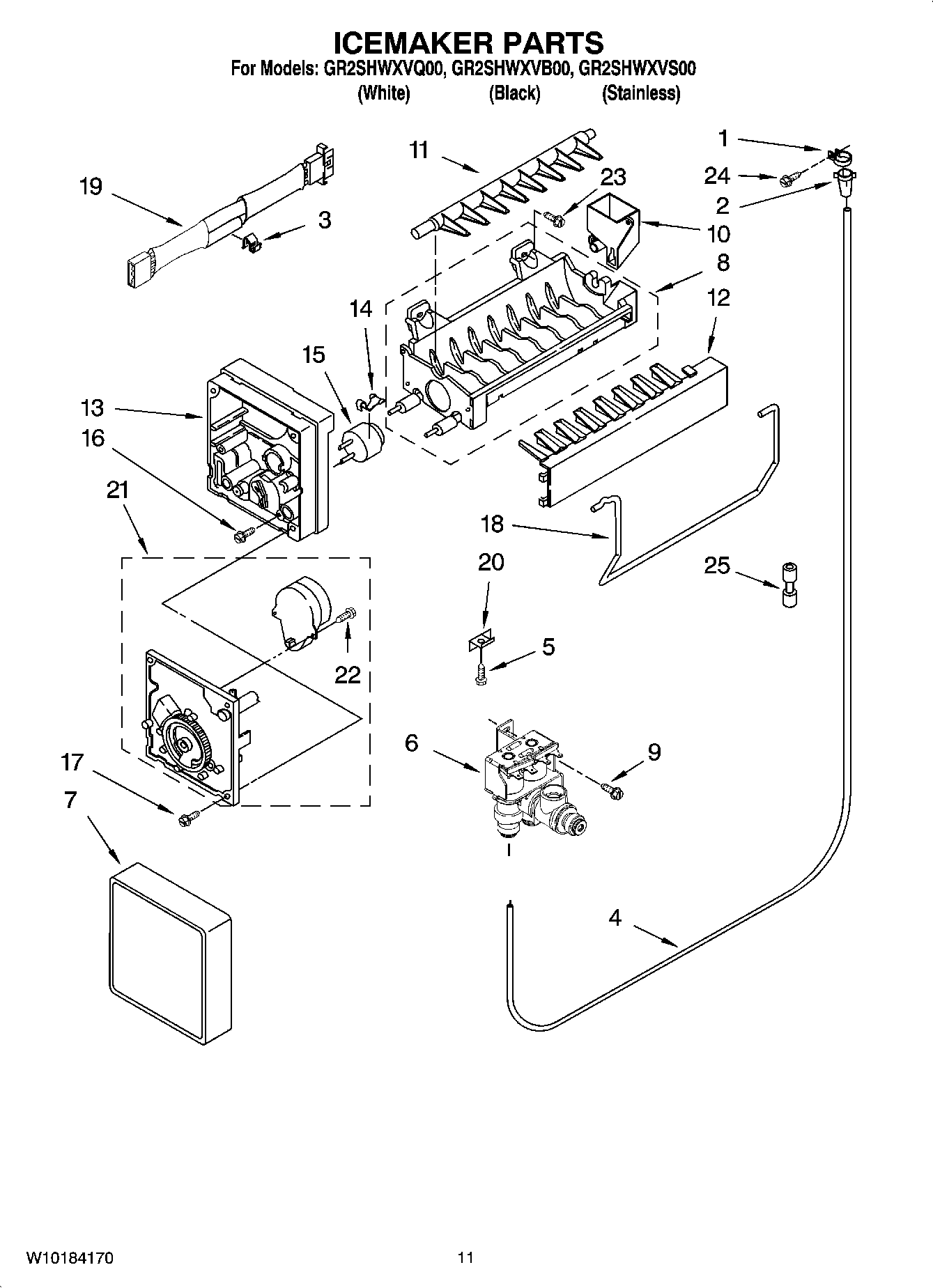

GR2SHWXVS00 06 – ICEMAKER PARTSadmin2025-04-26T12:02:13+00:00GR2SHWXVS00 06 – ICEMAKER PARTS ProductsPositionProduct1WP488878 Whirlpool Refrigerator Tube Clamp24387491 Whirlpool Refrigerator Insert3WP628379 Whirlpool Refrigerator Clip4W10823511 Whirlpool Refrigerator Water Tube5WP489478 Whirlpool Refrigerator Screw6WP2188808 Whirlpool Refrigerator Inlet Valve7WPW10289690 Whirlpool Ice Maker Cover8WPW10190929 Whirlpool Refrigerator Ice Maker Mold9WP489442 Whirlpool Refrigerator Screw10W10122561 Whirlpool Refrigerator Cup Fill11WP627843 Whirlpool Refrigerator Ejector Arm12WP2182124 Whirlpool Refrigerator Stripper Arm13WP2195914 Whirlpool Refrigerator Ice Maker Housing14WP2315522 Whirlpool Refrigerator Clip15WP627985 Whirlpool Icemaker Cycling Thermostat168533917 Whirlpool Refrigerator Screw17WP681249 Whirlpool Screw Assembly18WP627792 Whirlpool Refrigerator Shut Off Arm19WP2187464 Whirlpool Refrigerator Wire Harness20W11500948 Whirlpool Refrigerator Bracket21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly22489136 Whirlpool Refrigerator Screw23WP488163 Whirlpool Refrigerator Screw24WP488787 Whirlpool Refrigerator Screw25WP2198677 Whirlpool Refrigerator Connector1004317943 Whirlpool Refrigerator Ice Maker Assembly
