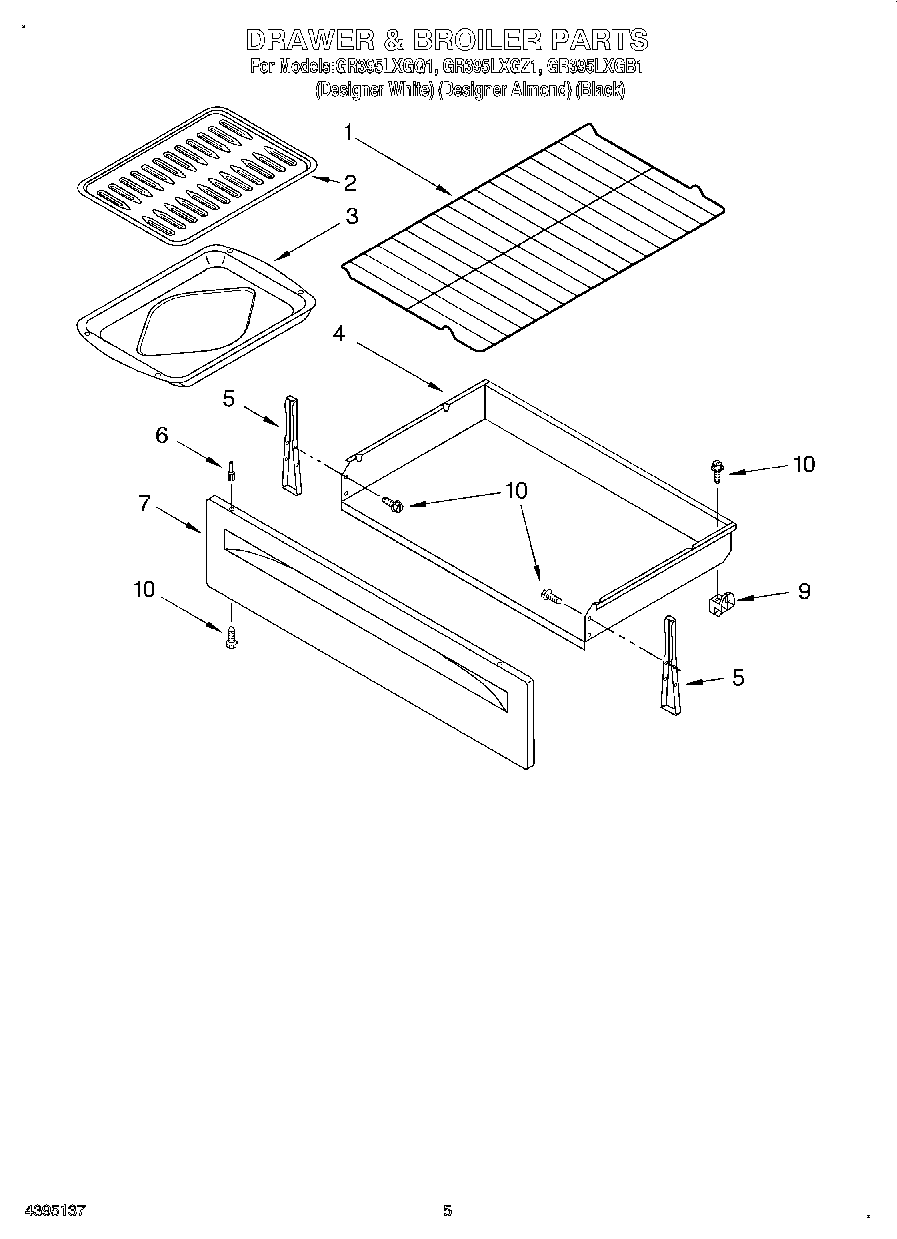

GR395LXGB1 04 – DRAWER & BROILER

GR395LXGB1 04 – DRAWER & BROILER

Written by

in

GR395LXGB1 04 – DRAWER & BROILER

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196813 Whirlpool Rivet
63196815 Whirlpool Oven Rivet
6WP3196814 Whirlpool Rivet
7Panel, Drawer Front (Almond)
7W11219377 Whirlpool Drawer Panel
7W11230488 Whirlpool Drawer Panel
9WP8053334 Whirlpool Drawer Glide
10WP3400832 Whirlpool Screw
