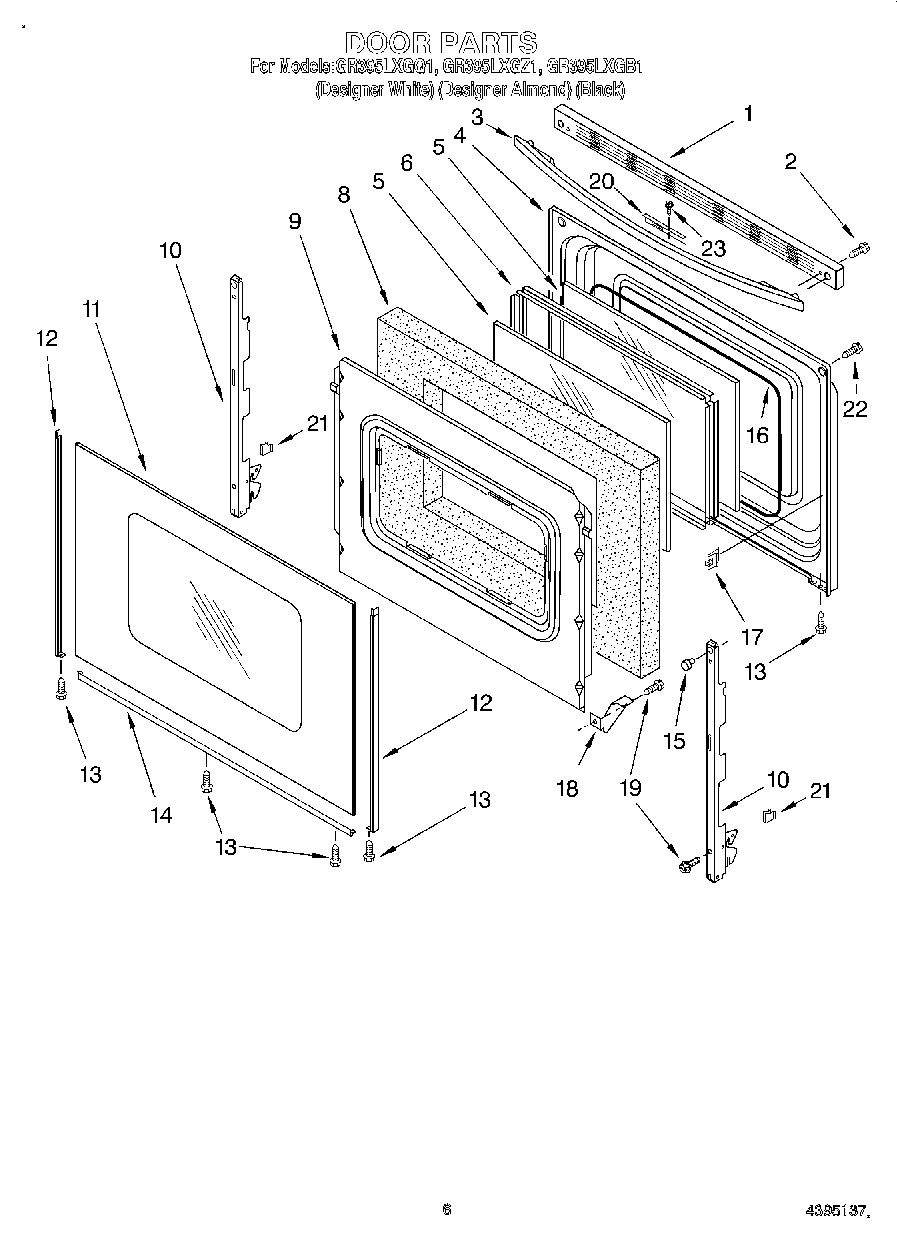

GR395LXGB1 05 – DOOR, OPTIONAL

GR395LXGB1 05 – DOOR, OPTIONAL

Written by

in

GR395LXGB1 05 – DOOR, OPTIONAL

Products

Position	Product
1	Trim, Door Top (Almond)
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
3	Handle, Door (Almond)
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	WP8053948 Whirlpool Door Glass
6	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	WPW10118455 Whirlpool Door Glass Assembly
11	WP8053834 Whirlpool Door Glass
11	Glass, Outer Door (Almond)
13	W10491985 Whirlpool Screw
14	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
14	8184858 Whirlpool Door Trim
14	8184860 Whirlpool Oven Door Trim
15	238614 Whirlpool Bumper Hinge
16	Seal, Window
17	Clip, Glass (4)
18	WP3196794 Whirlpool Glass Bracket
19	WP3196175 Whirlpool Screw
20	Bracket, Latch
21	WP3196925 Whirlpool Clip Assembly
22	WP179051 Whirlpool Screw
23	Wire (14 Ga. 200 c Brown)
23	1
23	18 Ga. 80~c Rating (Red)
23	WP3196174 Whirlpool Screw
23	W11244557 Whirlpool Screw
23	W11396691 Whirlpool Element Receptacle and Wire Kit
23	WP3400832 Whirlpool Screw
23	WP3196154 Whirlpool Screw Assembly
23	WPL 8053513
23	8212471 Whirlpool Oven Paint
23	3184020 Whirlpool Oven Wire
23	3196696 Whirlpool Clip
23	Grease
23	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
23	Harness, Wire (Door Switch)
23	Wire (12 Ga. 150 c Black)
23	Wire (14 Ga. 150 c Yellow)
23	Wire (14 Ga. 150 c Orange)
23	511873 Whirlpool Refrigerator Paint
23	350942 Whirlpool Spray Paint
23	WPL 72112
23	Platinum (Uncut)
23	Enamal, Toast (1 Qt. Uncut)
23	Paint, Spray (13 Oz.) (Platinum)
23	Toast
23	Golden Harvest (Uncut)
23	Golden Harvest
23	72113 Whirlpool Touch-Up Paint
23	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
23	Almond (Uncut)
23	WP72107 Whirlpool Touchup
23	799344 Whirlpool Refrigerator Paint
23	72017 Whirlpool Appliance Touch-Up Paint White
23	350956 Whirlpool Spray Assembly
23	WPL 799832
23	WPW10208653 Whirlpool Insulation
23	FOIL, ALUMINUM OVEN (18“ X 25 )
23	Wire (14 Ga. 150 c Green)
23	Wire (14 Ga. 150 c Brown)
23	Wire (14 Ga. 150 c Blue)
23	242831 Whirlpool Oven Wire
23	Clip, Ground Wire
23	3400964 Whirlpool Oven Clip
23	814381 Whirlpool Pin
23	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
23	Paint, Spray 13 Oz. (Avocado)
23	paint, spray 13 oz. (coffee)
23	Paint, Touch-Up 1/2 Oz. (Coffee)
23	72109 Whirlpool Dacor Avocado Touch-Up Paint
23	285006 Whirlpool Spray
23	Wire, 25“ Roll (White 14 GA.)
23	Wire, 25` Roll (Red 14 Ga.)
23	Wire, 25` Roll (Black 14 Ga.)
23	350930 Whirlpool White Spray Paint
