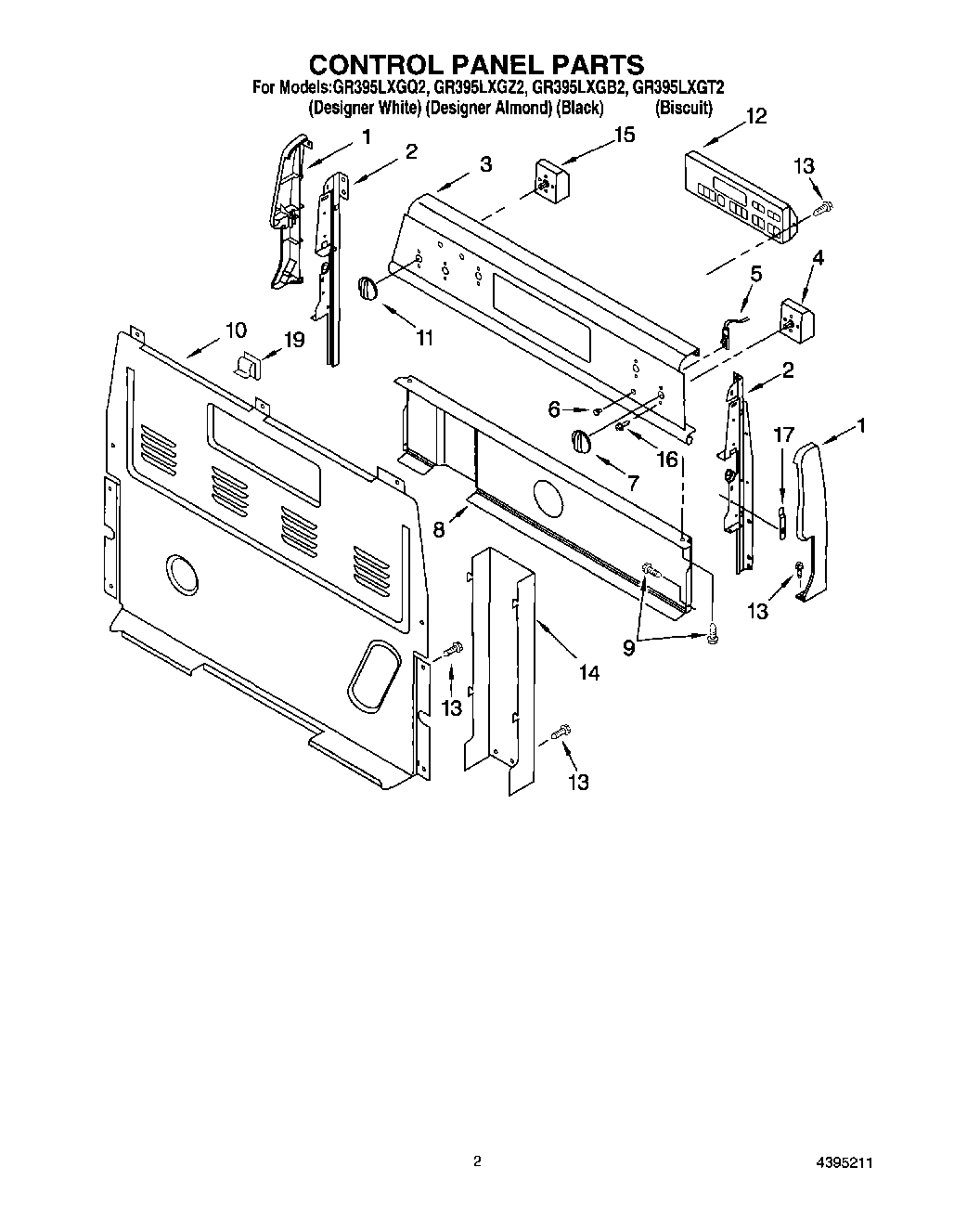

GR395LXGT2 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Black Left Hand)
1Endcap, Right Hand (Black)
1Endcap (Biscuit Left Hand)
1Endcap (Biscuit Right Hand)
1Endcap (Almond Right Hand)
1Endcap (Almond Left Hand)
1Endcap (White Right Hand)
1Endcap (White Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (Biscuit)
3Panel, Backguard (Almond)
3Panel, Backguard (White)
3Panel, Backguard (Black)
4WP3148952 Whirlpool Oven Infinite Switch
4WP3149400 Whirlpool Oven Infinite Switch
5Light, Indicator (Accusimmer)
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7WP3196232 Whirlpool Knob
7WP3196231 Whirlpool Knob
7Knob, Infinite (4) (Almond)
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Knob, Infinite (2) Accusim/Keep Warm (Biscuit)
11Knob, Accusimmer (Almond)
11Knob, Accusimmer (White)
11Knob, Accusimmer (Black)
12Control, Range (Almond)
12Control, Range (Black)
12Control, Range (White)
12WPL 6610201
13SCREW
14WPW10326122 Whirlpool Black Cover
15Switch, Rotary
16WP3400882 Whirlpool Screw
173196200 Whirlpool Clip
19WP8273564 Whirlpool Clip
