GR396LXGZ0 01 – COOKTOP

GR396LXGZ0 01 – COOKTOP

Written by

in

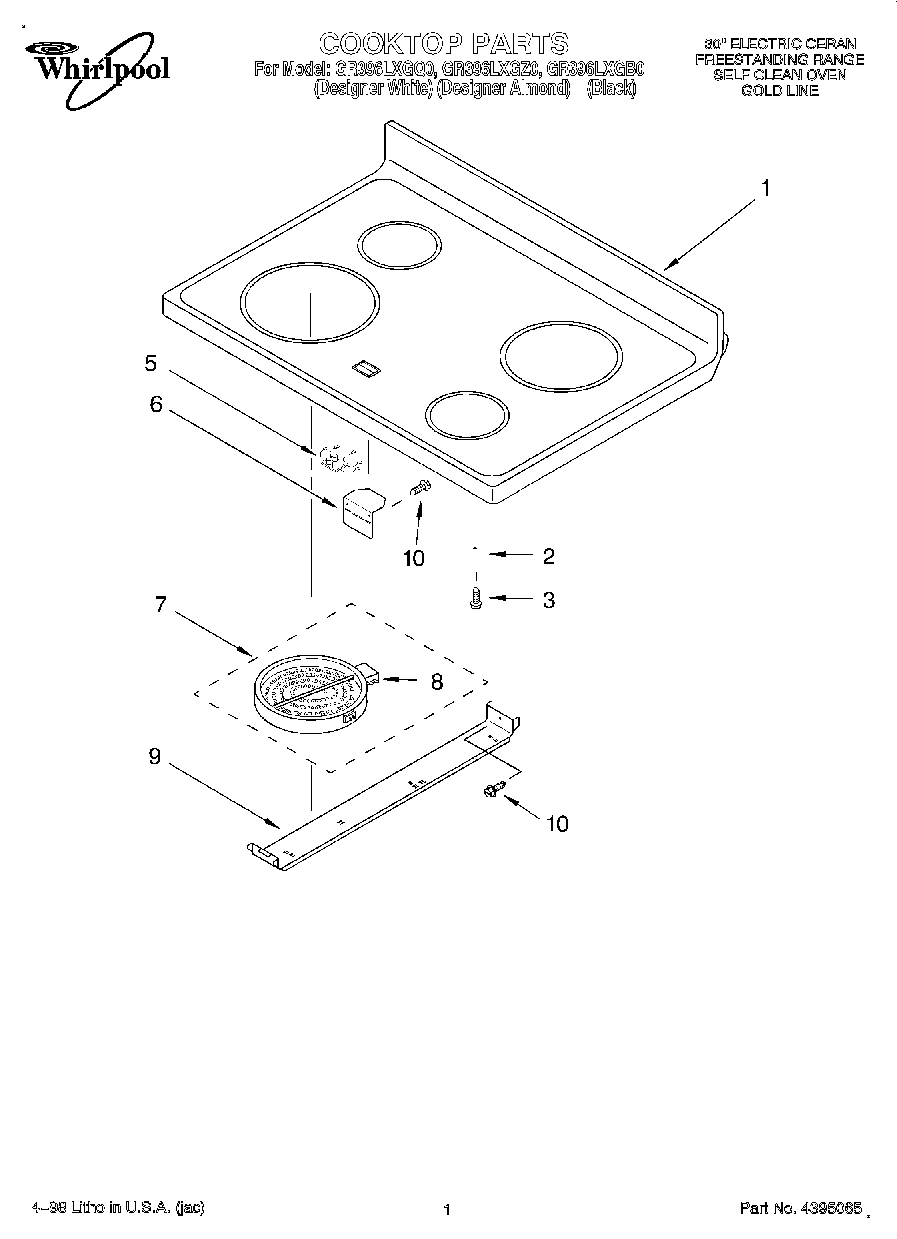

GR396LXGZ0 01 – COOKTOP

Products

PositionProduct
1Cooktop (Black)
1Cooktop (Almond)
1Cooktop (White)
2Spring, Locator
3WP3196170 Whirlpool Screw
5Light, Indicator (Hot Surface)
6Bracket, Ind Light
7W10823711 Whirlpool Surface Element Left Front and Right Rear
72500W – RR
7W10823698 Whirlpool Surface Element Right Rear
8Limiter, Temp. (LR-RF-RR)
9Bracket, Element
10WP3196175 Whirlpool Screw
←DU1055XTVS6 02 – CONTROL PANEL AND LATCH PARTS
DU1148XTPQ9 02 – CONTROL PANEL PARTS→
