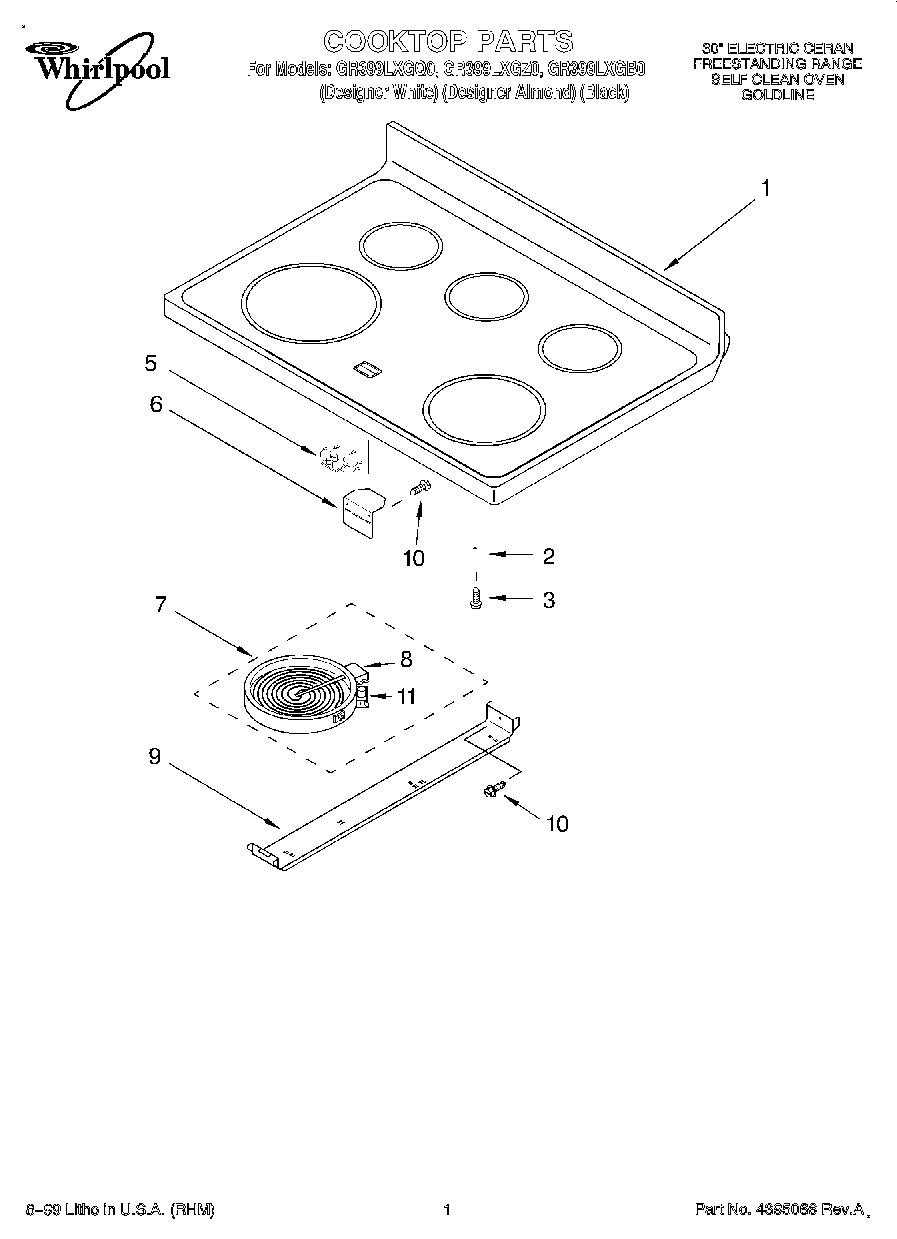

| 1 | Cooktop (Black) |
| 1 | Cooktop (Almond) |
| 1 | Cooktop (White) |
| 2 | Spring, Locator |
| 3 | WP3196170 Whirlpool Screw |
| 5 | Light, Indicator (Hot Surface) |
| 6 | Bracket, Ind Light |
| 7 | 2500W - RR |
| 7 | W10823698 Whirlpool Surface Element Right Rear |
| 7 | Element, Surface (Includes No. 8) (100 W - CR) |
| 7 | W10823711 Whirlpool Surface Element Left Front and Right Rear |
| 8 | Limiter, Temp. (1400 W - LR) |
| 8 | Limiter, Temp. (LR-RF-RR) |
| 9 | Bracket, Element (1) (Back Center) |
| 9 | Bracket, Element (2) |
| 10 | WP3196175 Whirlpool Screw |
| 11 | Light, Indicator (For 8273641 Only) |
