GR399LXGB0 02 – DOOR

GR399LXGB0 02 – DOOR

Written by

in

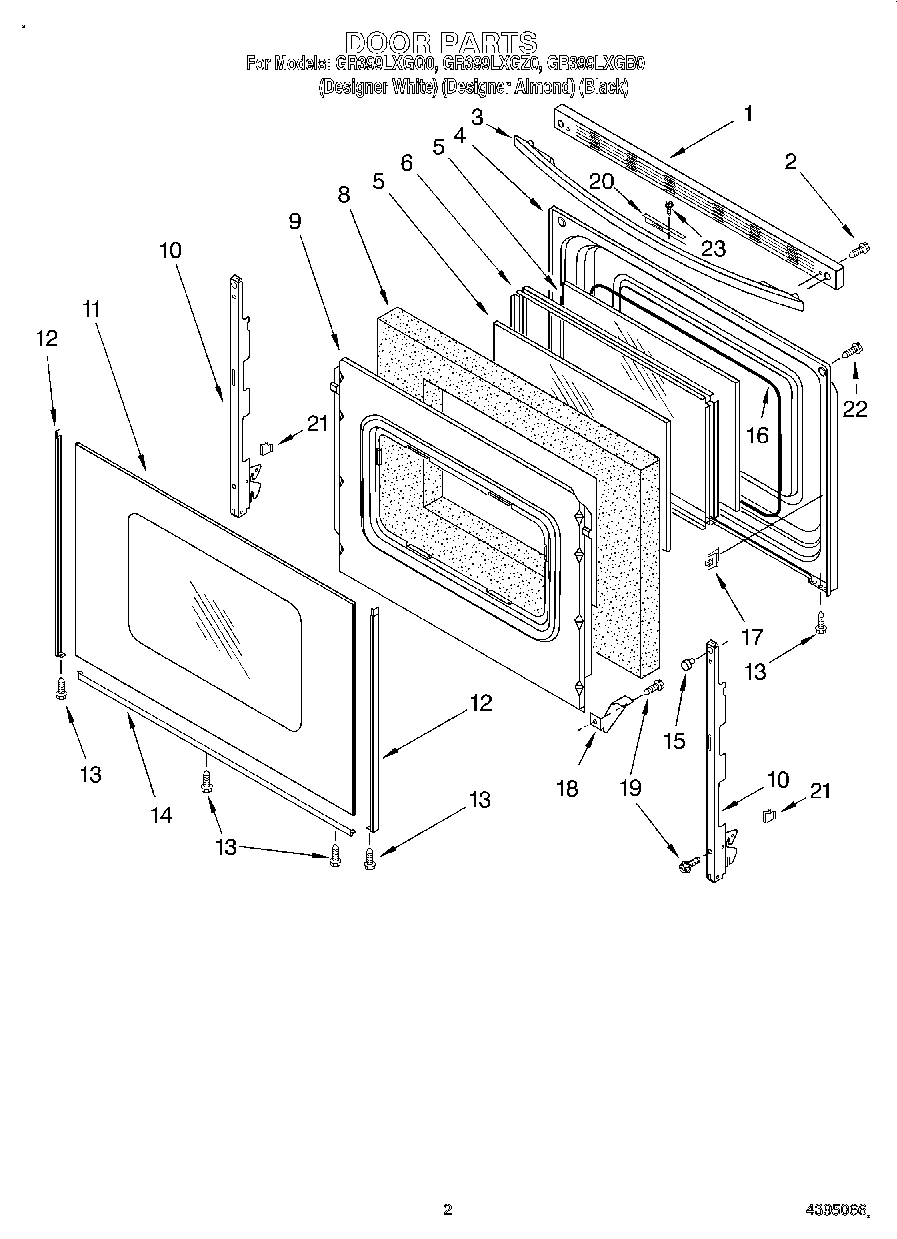

GR399LXGB0 02 – DOOR

Products

PositionProduct
1WPW10016370 Whirlpool Door Trim
1Trim, Door Top (Almond)
1Trim, Top (Black)
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
3Handle, Door (Almond)
3WPW10202216 Whirlpool Door Handle
4Liner, Door
5WP8053948 Whirlpool Door Glass
6WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WP8053807 Whirlpool Oven Door Hinge
11WP8053834 Whirlpool Door Glass
11WPW10118455 Whirlpool Door Glass Assembly
11Glass, Outer Door (Almond)
13W10491985 Whirlpool Screw
148184858 Whirlpool Door Trim
148184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
148184860 Whirlpool Oven Door Trim
15238614 Whirlpool Bumper Hinge
16Seal, Window
17Clip, Glass (4)
18WP3196794 Whirlpool Glass Bracket
19WP3196175 Whirlpool Screw
20Bracket, Latch
21WP3196925 Whirlpool Clip Assembly
22WP179051 Whirlpool Screw
23WP3400832 Whirlpool Screw
