GR399LXGB1 05 – CONTROL PANEL, OPTIONAL

GR399LXGB1 05 – CONTROL PANEL, OPTIONAL

Written by

in

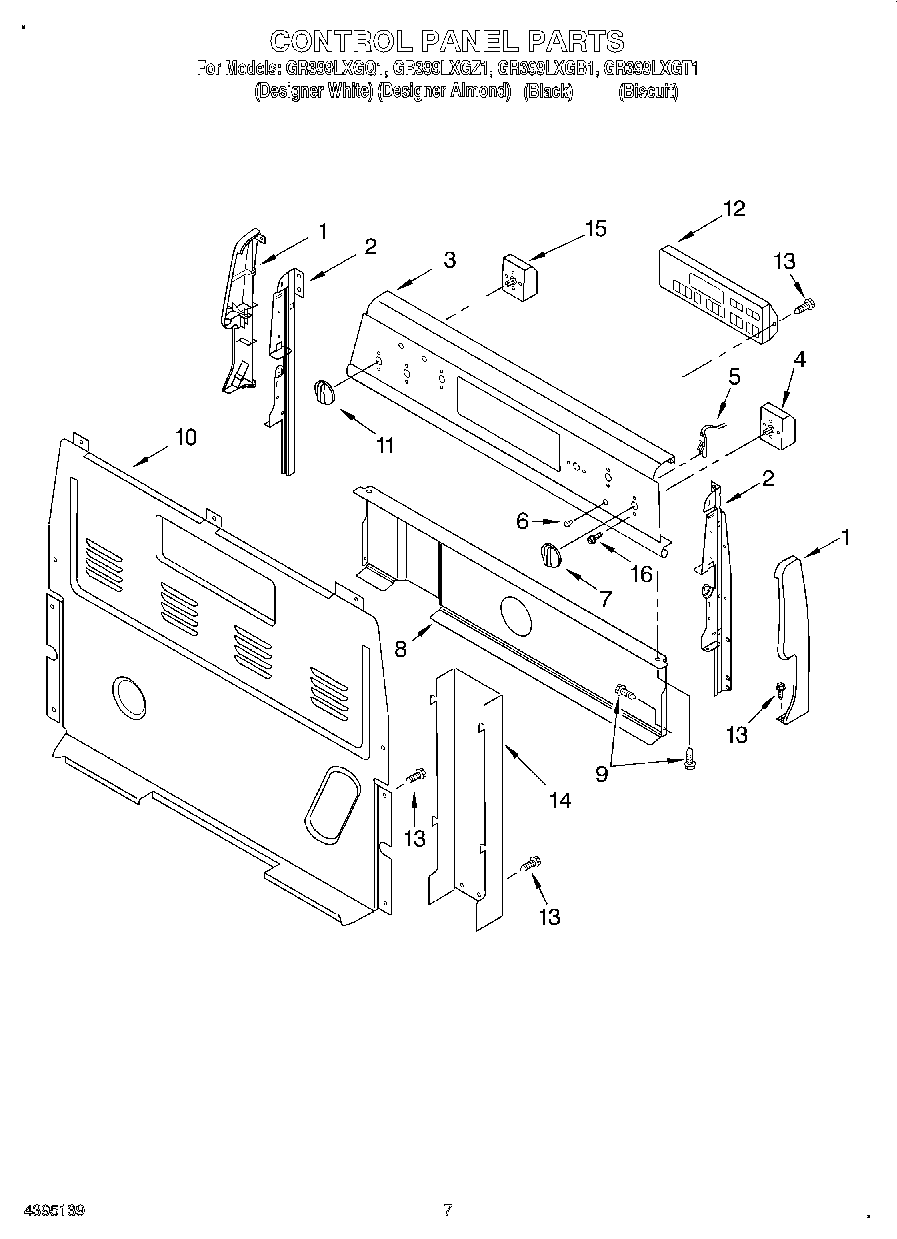

GR399LXGB1 05 – CONTROL PANEL, OPTIONAL

Products

Position	Product
1	Endcap (Biscuit Left Hand)
1	Endcap (Black Left Hand)
1	Endcap (Almond Left Hand)
1	Endcap, Right Hand (Black)
1	Endcap (Almond Right Hand)
1	Endcap (Biscuit Right Hand)
1	Endcap (White Right Hand)
1	Endcap (White Left Hand)
2	Support, Endcap (Right Hand)
2	Support, Endcap (Left Hand)
3	Panel, Backguard (Black)
3	Panel, Backguard (Almond)
3	Panel, Backguard (White)
3	Panel, Backguard (Biscuit)
4	WP3149404 Whirlpool Oven Surface Element Switch
4	Switch, Infinite (Center Rear)
4	WP3149400 Whirlpool Oven Infinite Switch
4	WP3148952 Whirlpool Oven Infinite Switch
5	Light, Indicator (Surface Unit (2))
5	Light, Indicator (Accusimmer)
5	Light, Ind. (Warming Zone)
6	WP3196068 Whirlpool Light Lens
7	WP3196232 Whirlpool Knob
7	Knob, Infinite (4) (Almond)
7	WP3196231 Whirlpool Knob
8	Shield, Heat
9	Screw
10	WP8272473 Whirlpool Rear Cover
11	Knob, Infinite (2) Accusim/Keep Warm (Biscuit)
11	Knob, Accusimmer (Black)
11	Knob, Accusimmer (White)
11	Knob, Accusimmer (Almond)
12	Control, Range (Almond)
12	Control, Range (White)
12	WPL 6610201
12	Control, Range (Black)
13	SCREW
14	WPW10326122 Whirlpool Black Cover
15	Switch, Rotary
16	Wire (14 Ga. 150 c Yellow)
16	WPL 8053278
16	WPL 8272415
16	Harness, Wire (Door Switch)
16	350942 Whirlpool Spray Paint
16	WPL 8053692
16	WP3196154 Whirlpool Screw Assembly
16	350930 Whirlpool White Spray Paint
16	WPW10208653 Whirlpool Insulation
16	FOIL, ALUMINUM OVEN (18“ X 25 )
16	WP3196175 Whirlpool Screw
16	Wire, 25` Roll (Black 14 Ga.)
16	Wire, 25` Roll (Red 14 Ga.)
16	Wire, 25“ Roll (White 14 GA.)
16	285006 Whirlpool Spray
16	72109 Whirlpool Dacor Avocado Touch-Up Paint
16	WPL 799832
16	511873 Whirlpool Refrigerator Paint
16	350956 Whirlpool Spray Assembly
16	72017 Whirlpool Appliance Touch-Up Paint White
16	799344 Whirlpool Refrigerator Paint
16	WP72107 Whirlpool Touchup
16	Almond (Uncut)
16	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
16	Golden Harvest
16	Golden Harvest (Uncut)
16	Paint, Touch-Up 1/2 Oz. (Coffee)
16	paint, spray 13 oz. (coffee)
16	Paint, Spray 13 Oz. (Avocado)
16	18 Ga. 80~c Rating (Red)
16	Wire (14 Ga. 200 c Brown)
16	1
16	WP3400882 Whirlpool Screw
16	8212471 Whirlpool Oven Paint
16	3184020 Whirlpool Oven Wire
16	3196696 Whirlpool Clip
16	Grease
16	Wire (12 Ga. 150 c Black)
16	Wire (14 Ga. 150 c Orange)
16	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
16	814381 Whirlpool Pin
16	3400964 Whirlpool Oven Clip
16	Clip, Ground Wire
16	242831 Whirlpool Oven Wire
16	Wire (14 Ga. 150 c Blue)
16	Wire (14 Ga. 150 c Brown)
16	Wire (14 Ga. 150 c Green)
16	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
