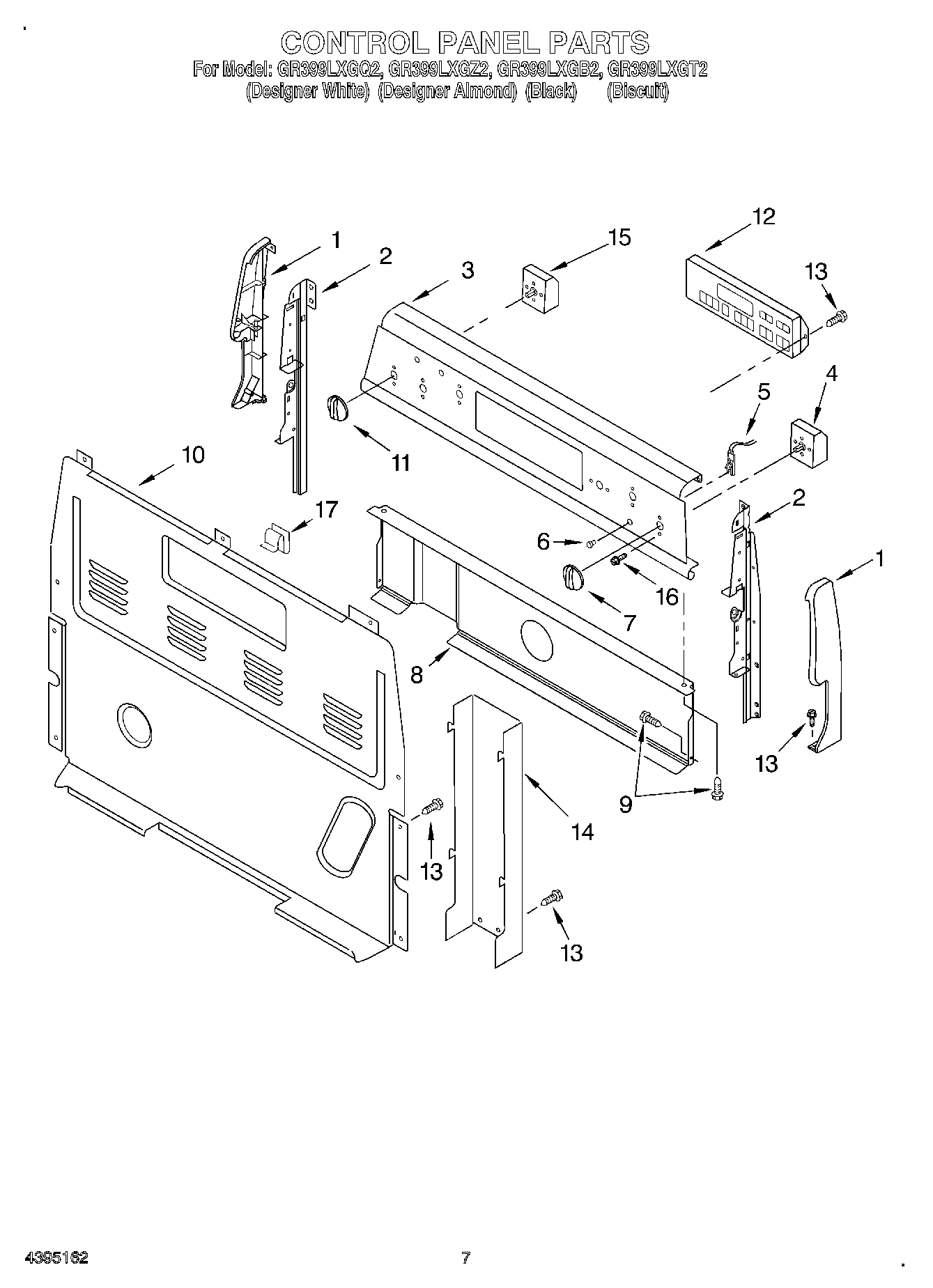

GR399LXGB2 05 – CONTROL PANEL, OPTIONAL

GR399LXGB2 05 – CONTROL PANEL, OPTIONAL

Written by

in

GR399LXGB2 05 – CONTROL PANEL, OPTIONAL

Products

Position	Product
1	Endcap (Biscuit Right Hand)
1	Endcap (Black Left Hand)
1	Endcap, Right Hand (Black)
1	Endcap (Almond Left Hand)
1	Endcap (Almond Right Hand)
1	Endcap (Biscuit Left Hand)
1	Endcap (White Right Hand)
1	Endcap (White Left Hand)
2	Support, Endcap (Left Hand)
2	Support, Endcap (Right Hand)
3	Panel, Backguard (White)
3	Panel, Backguard (Almond)
3	Panel, Backguard (Biscuit)
3	Panel, Backguard (Black)
4	WP3149404 Whirlpool Oven Surface Element Switch
4	WP3149400 Whirlpool Oven Infinite Switch
4	Switch, Infinite (Center Rear)
4	WP3148952 Whirlpool Oven Infinite Switch
5	Light, Ind. (Warming Zone)
5	Light, Indicator (Accusimmer)
5	Light, Indicator (Surface Unit (2))
6	WP3196068 Whirlpool Light Lens
7	WP3196232 Whirlpool Knob
7	Knob, Infinite (4) (Almond)
7	WP3196231 Whirlpool Knob
8	Shield, Heat
9	Screw
10	WP8272473 Whirlpool Rear Cover
11	Knob, Accusimmer (Black)
11	Knob, Accusimmer (White)
11	Knob, Accusimmer (Almond)
11	Knob, Infinite (2) Accusim/Keep Warm (Biscuit)
12	Control, Range (Black)
12	WPL 6610201
12	Control, Range (White)
12	Control, Range (Almond)
13	SCREW
14	WPW10326122 Whirlpool Black Cover
15	Switch, Rotary
16	WP3400882 Whirlpool Screw
17	WPL 8273266
17	WPL 8053692
17	Wire (14 Ga. 150 c Yellow)
17	WPL 8273000
17	WP8273564 Whirlpool Clip
17	WPL 8273329
17	350930 Whirlpool White Spray Paint
17	WPW10208653 Whirlpool Insulation
17	FOIL, ALUMINUM OVEN (18“ X 25 )
17	WP3196175 Whirlpool Screw
17	Wire, 25` Roll (Black 14 Ga.)
17	Wire, 25` Roll (Red 14 Ga.)
17	Wire, 25“ Roll (White 14 GA.)
17	285006 Whirlpool Spray
17	72109 Whirlpool Dacor Avocado Touch-Up Paint
17	WPL 799832
17	511873 Whirlpool Refrigerator Paint
17	350942 Whirlpool Spray Paint
17	350956 Whirlpool Spray Assembly
17	72017 Whirlpool Appliance Touch-Up Paint White
17	799344 Whirlpool Refrigerator Paint
17	WP72107 Whirlpool Touchup
17	Almond (Uncut)
17	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
17	Golden Harvest
17	Golden Harvest (Uncut)
17	Paint, Touch-Up 1/2 Oz. (Coffee)
17	paint, spray 13 oz. (coffee)
17	18 Ga. 80~c Rating (Red)
17	Wire (14 Ga. 200 c Brown)
17	1
17	8212471 Whirlpool Oven Paint
17	3184020 Whirlpool Oven Wire
17	3196696 Whirlpool Clip
17	Grease
17	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
17	Wire (12 Ga. 150 c Black)
17	Wire (14 Ga. 150 c Orange)
17	Wire (14 Ga. 150 c Green)
17	Paint, Spray 13 Oz. (Avocado)
17	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
17	814381 Whirlpool Pin
17	3400964 Whirlpool Oven Clip
17	Clip, Ground Wire
17	242831 Whirlpool Oven Wire
17	Wire (14 Ga. 150 c Blue)
17	Wire (14 Ga. 150 c Brown)
17	WP3196154 Whirlpool Screw Assembly
