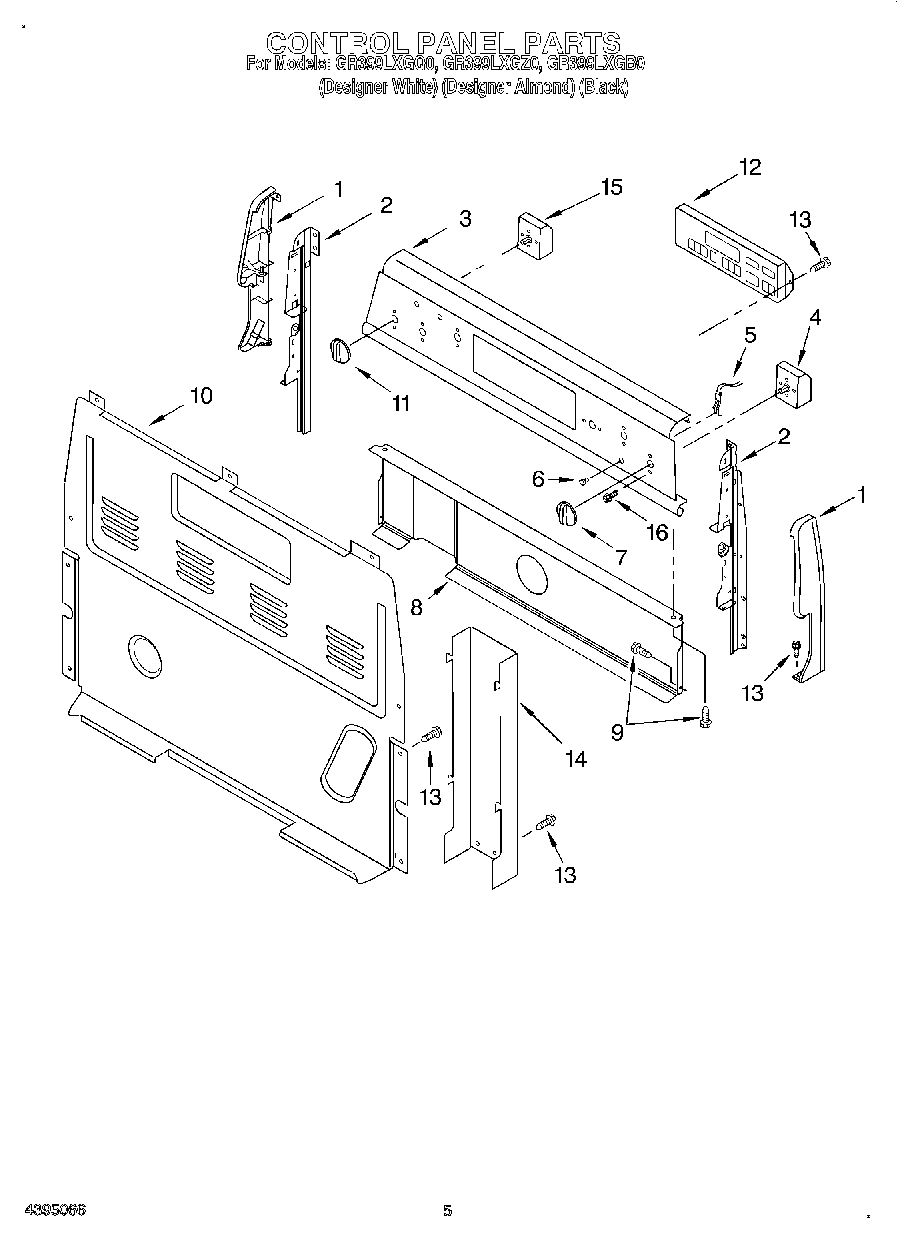

GR399LXGQ0 04 – CONTROL PANEL

Products

PositionProduct
1Endcap (Black Left Hand)
1Endcap, Right Hand (Black)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap (Almond Left Hand)
1Endcap (Almond Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Almond)
3Panel, Backguard (White)
3Panel, Backguard (Black)
4WP3148952 Whirlpool Oven Infinite Switch
4WP3149404 Whirlpool Oven Surface Element Switch
4WP3149400 Whirlpool Oven Infinite Switch
4Switch, Infinite (Center Rear)
5Light, Indicator (Accusimmer)
5Light, Indicator (Surface Unit (2))
5Light, Ind. (Warming Zone)
6WP3196068 Whirlpool Light Lens
7WP3196231 Whirlpool Knob
7WP3196232 Whirlpool Knob
7Knob, Infinite (4) (Almond)
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Knob, Accusimmer (Almond)
11Knob, Accusimmer (White)
11Knob, Accusimmer (Black)
12Control, Range (Black)
12Control, Range (White)
12Control, Range (Almond)
13SCREW
14WPW10326122 Whirlpool Black Cover
15Switch, Rotary
16Switch, Infinite (Screw (8))
