GR399LXGZ1 01 – COOKTOP, LITERATURE

GR399LXGZ1 01 – COOKTOP, LITERATURE

Written by

in

GR399LXGZ1 01 – COOKTOP, LITERATURE

Products

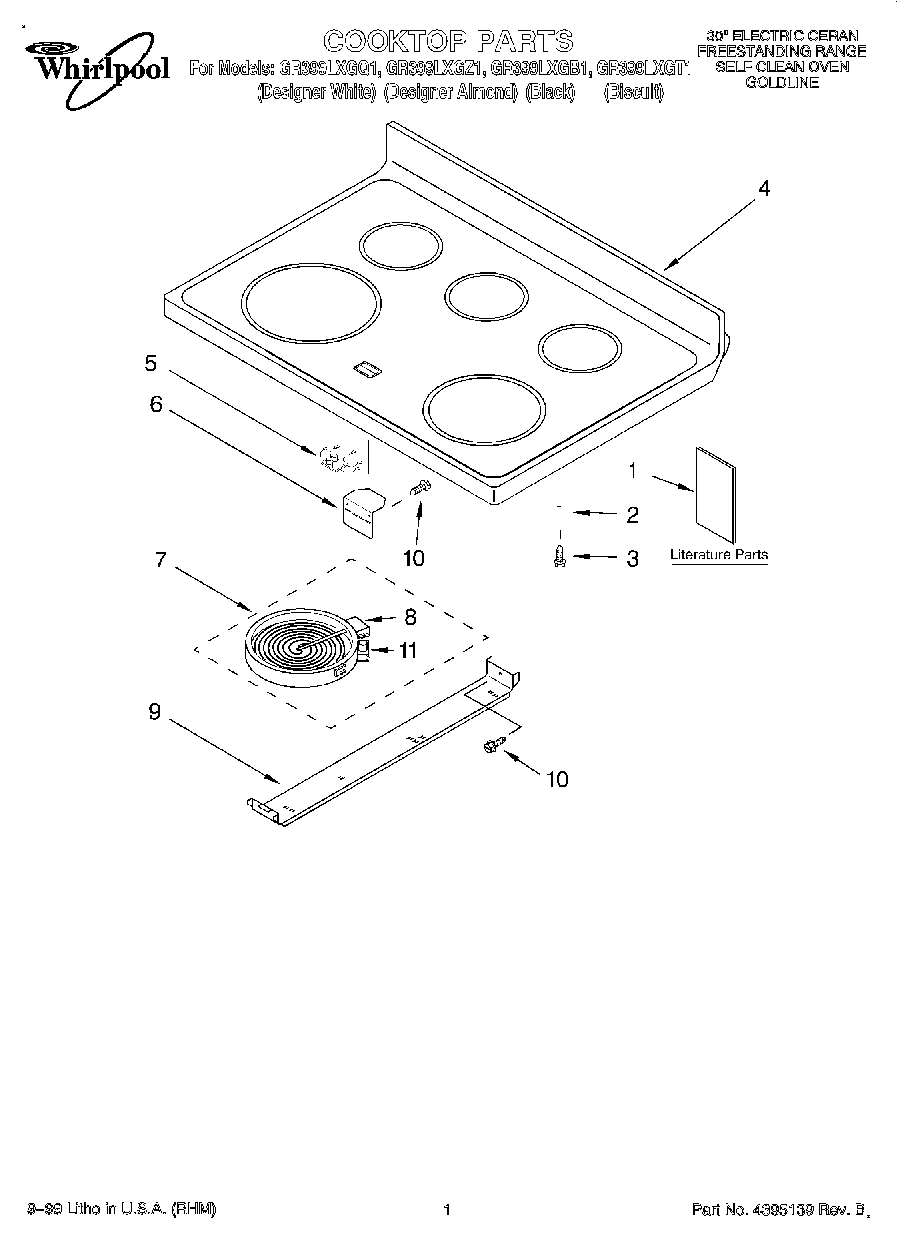

PositionProduct
1Safer Cooking Tips
1Literature (Instruction, Installation)
1Literature (Installation, Instructions (Template))
1Literature Parts (Guide, Use & Care)
1Literature Parts (Tech Sheet)
2Spring, Locator
3WP3196170 Whirlpool Screw
4Cooktop (White)
4Cooktop (Almond)
4Cooktop (Black)
4Cooktop (Biscuit)
5Light, Indicator (Hot Surface)
6Bracket, Ind Light
7W10823711 Whirlpool Surface Element Left Front and Right Rear
72500W – RR
7Element, Surface (Includes No. 8) (100 W – CR)
7W10823698 Whirlpool Surface Element Right Rear
8Limiter, Temp. (LR-RF-RR)
8Limiter, Temp. (1400 W – LR)
9Bracket, Element (1) (Back Center)
9Bracket, Element (2)
10WP3196175 Whirlpool Screw
11Light, Indicator (For 8273641 Only)
