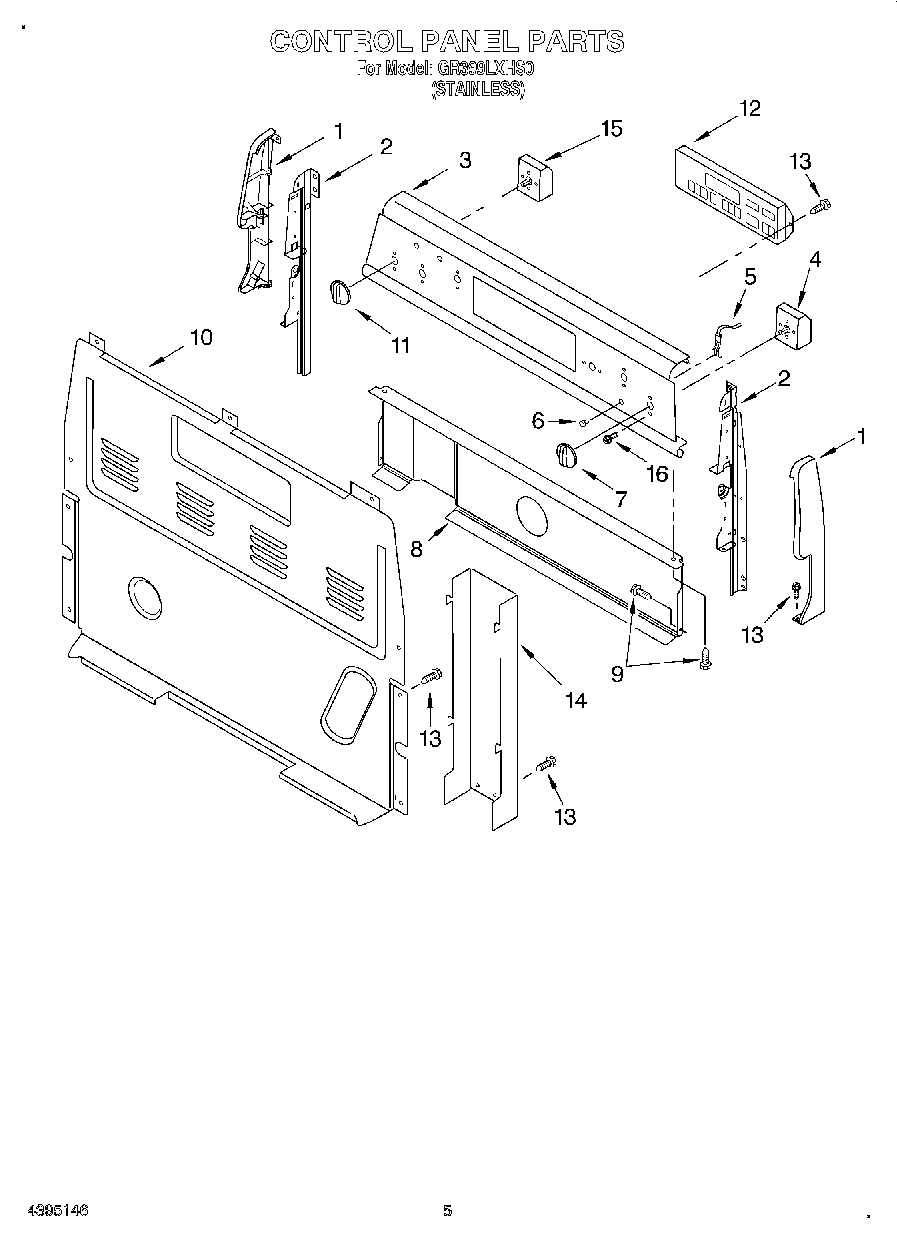

GR399LXHS0 04 – CONTROL PANEL

GR399LXHS0 04 – CONTROL PANEL

Written by

in

GR399LXHS0 04 – CONTROL PANEL

Products

PositionProduct
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard
4WP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
4Switch, Infinite (Center Rear)
4WP3149404 Whirlpool Oven Surface Element Switch
5Light, Indicator (Accusimmer)
5Light, Indicator (Surface Unit (2))
5Light, Ind. (Warming Zone)
6WP3196068 Whirlpool Light Lens
7WP3196231 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Knob, Accusimmer (Black)
12Control, Range (Black)
13SCREW
14WPW10326122 Whirlpool Black Cover
15Switch, Rotary
16WP3400882 Whirlpool Screw
