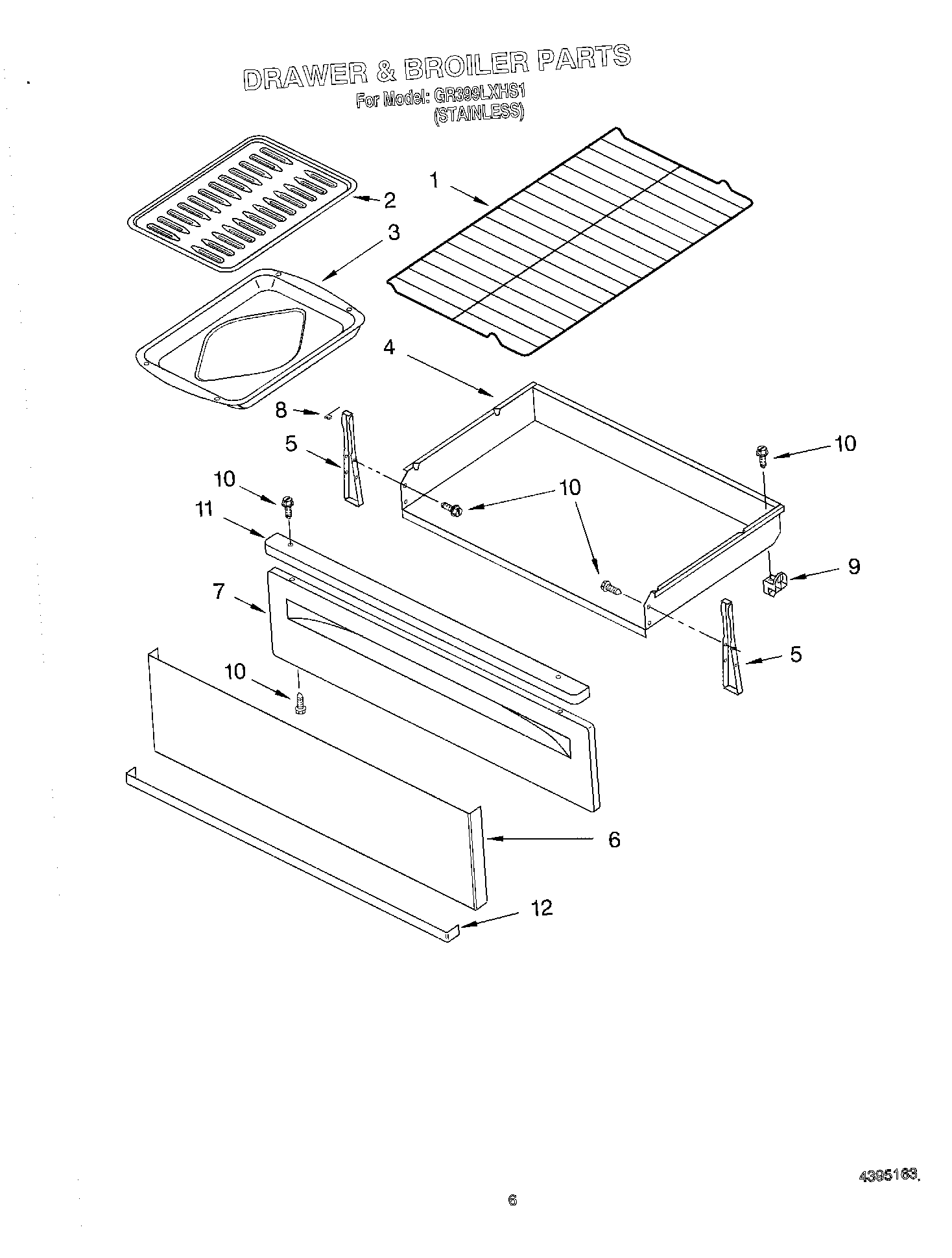

GR399LXHS1 05 – DRAWER AND BROILER, OPTIONAL

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Storage
5	W10838990 Whirlpool Mounting Bracket
6	Panel, Stainless
7	W11230488 Whirlpool Drawer Panel
8	WP9781235 Whirlpool Clip
9	WP8053334 Whirlpool Drawer Glide
10	WP3400832 Whirlpool Screw
11	WPL 8053949
12	18 Ga. 80~c Rating (Red)
12	Wire (12 Ga. 150 c Black)
12	Wire (14 Ga. 150 c Yellow)
12	Wire (14 Ga. 150 c Orange)
12	Wire (14 Ga. 150 c Green)
12	Wire (14 Ga. 150 c Brown)
12	Wire (14 Ga. 150 c Blue)
12	Wire (14 Ga. 200 c Brown)
12	1
12	WPL 8273000
12	WPL 8053692
12	Bottom, Drawer
12	3196696 Whirlpool Clip
12	WPL 8273266
12	WP3196154 Whirlpool Screw Assembly
12	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
12	Grease
12	3184020 Whirlpool Oven Wire
12	8212471 Whirlpool Oven Paint
12	WPL 8273329
12	242831 Whirlpool Oven Wire
12	Clip, Ground Wire
12	WPL 799832
12	511873 Whirlpool Refrigerator Paint
12	350942 Whirlpool Spray Paint
12	Golden Harvest (Uncut)
12	Golden Harvest
12	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
12	Almond (Uncut)
12	WP72107 Whirlpool Touchup
12	799344 Whirlpool Refrigerator Paint
12	72017 Whirlpool Appliance Touch-Up Paint White
12	350956 Whirlpool Spray Assembly
12	WPW10208653 Whirlpool Insulation
12	FOIL, ALUMINUM OVEN (18“ X 25 )
12	WP3196175 Whirlpool Screw
12	3400964 Whirlpool Oven Clip
12	814381 Whirlpool Pin
12	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
12	Paint, Spray 13 Oz. (Avocado)
12	paint, spray 13 oz. (coffee)
12	Paint, Touch-Up 1/2 Oz. (Coffee)
12	72109 Whirlpool Dacor Avocado Touch-Up Paint
12	285006 Whirlpool Spray
12	Wire, 25“ Roll (White 14 GA.)
12	Wire, 25` Roll (Red 14 Ga.)
12	Wire, 25` Roll (Black 14 Ga.)
12	350930 Whirlpool White Spray Paint
