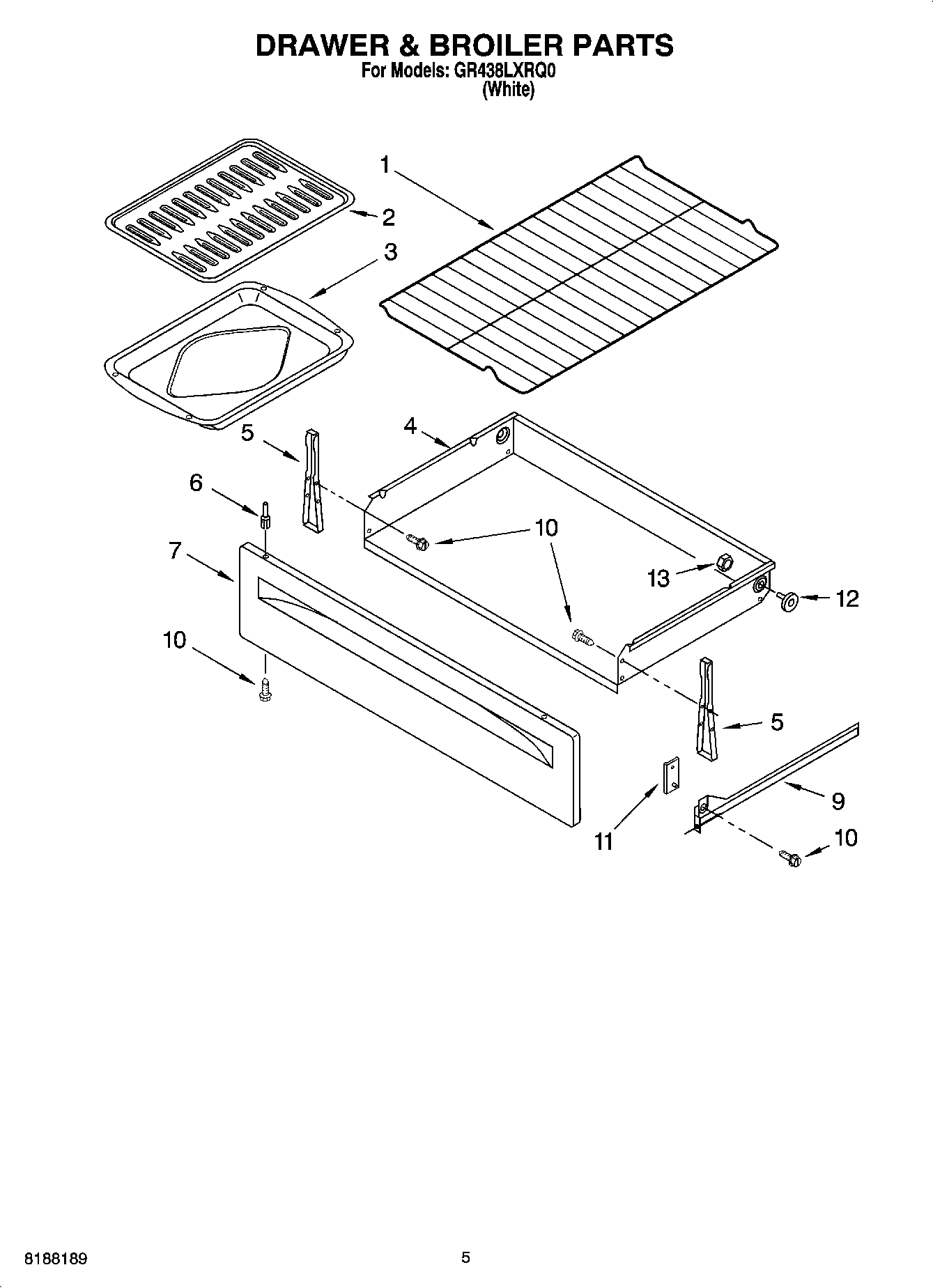

GR438LXRQ0 04 – DRAWER & BROILER PARTS

GR438LXRQ0 04 – DRAWER & BROILER PARTS

Written by

in

GR438LXRQ0 04 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196814 Whirlpool Rivet
7W11230476 Whirlpool Drawer Panel
7W11230488 Whirlpool Drawer Panel
7W11219377 Whirlpool Drawer Panel
9Rail, Drawer (Right Hand)
9Rail, Drawer (Left Hand)
10WP3400832 Whirlpool Screw
11Spacer, Glide
12814229 Whirlpool Primary Roller
13WP487939 Whirlpool Refrigerator Nut
