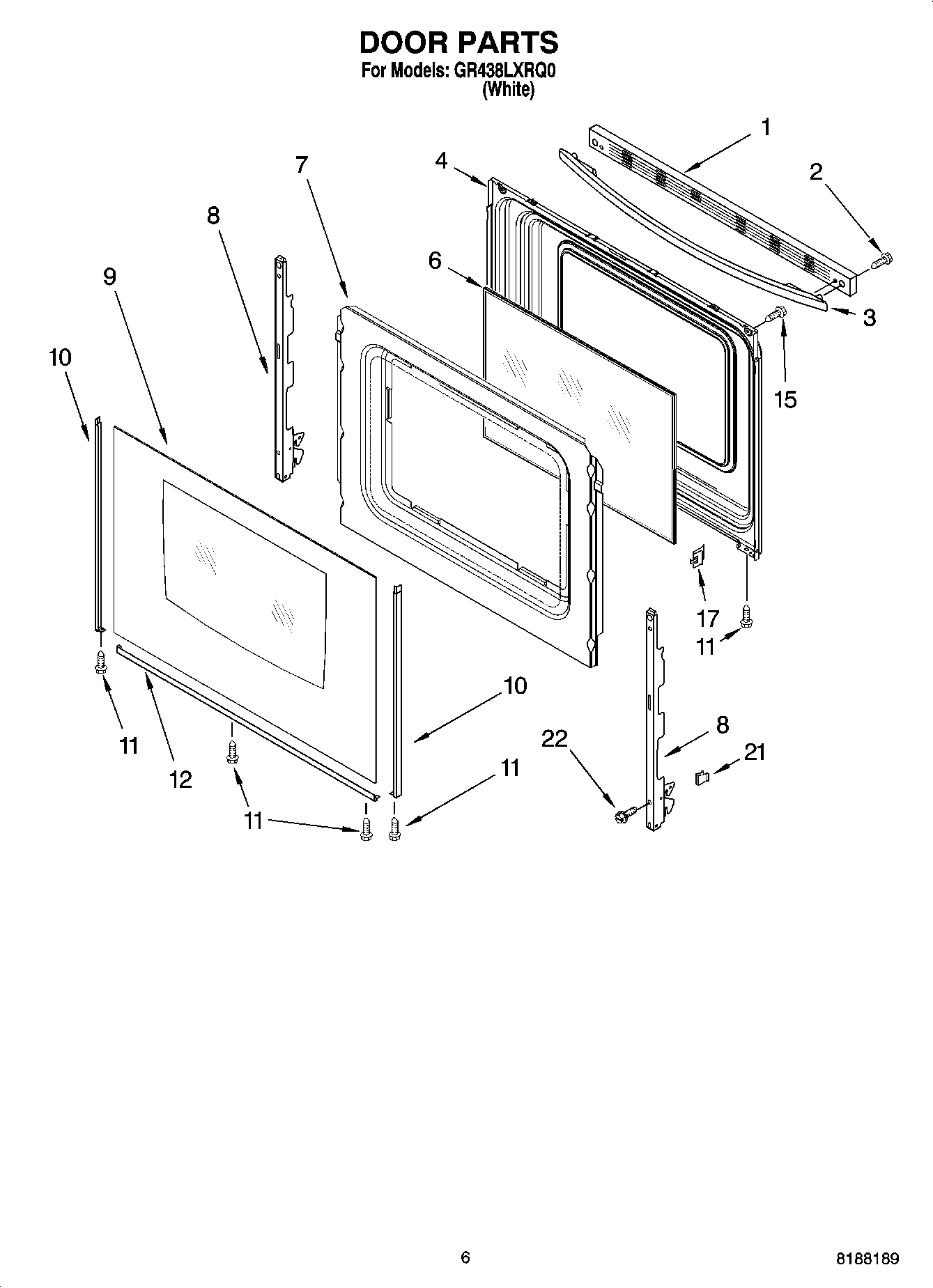

GR438LXRQ0 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI148912A
	Grease
	8212471 Whirlpool Oven Paint
	WP3196174 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP3196154 Whirlpool Screw Assembly
	WPL ARI148913A
	WPL ARI148911A
	WPL ARI148910A
	WPL ARI148909A
	WPL ARI148908A
	WPL ARI148907A
	WPL ARI148906A
	WPL 9762569
	WPL 9761452
	WPL 9761451
	WPL 9756752
	242831 Whirlpool Oven Wire
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	WPL 799832
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	Wire, 25` Roll (Red 14 Ga.)
	4392901 Whirlpool Biscuit Spray Paint
	285006 Whirlpool Spray
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	814381 Whirlpool Pin
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	3184020 Whirlpool Oven Wire
	799344 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	W11447673 Whirlpool Range Tip Anchor
	4392899 Whirlpool Biscuit Touch-Up Paint
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
6	WP8053948 Whirlpool Door Glass
7	Retainer, Insul.
8	Hinge, Door (2)
9	WPW10118454 Whirlpool Door Outer Glass White
10	WP8523172 Whirlpool Left Door Trim
10	WP8523166 Whirlpool Door Trim
11	W10491985 Whirlpool Screw
12	WP8523175 Whirlpool Door Trim Assembly
15	WP179051 Whirlpool Screw
17	Clip, Glass (4)
21	WP3196925 Whirlpool Clip Assembly
22	WP3196175 Whirlpool Screw
