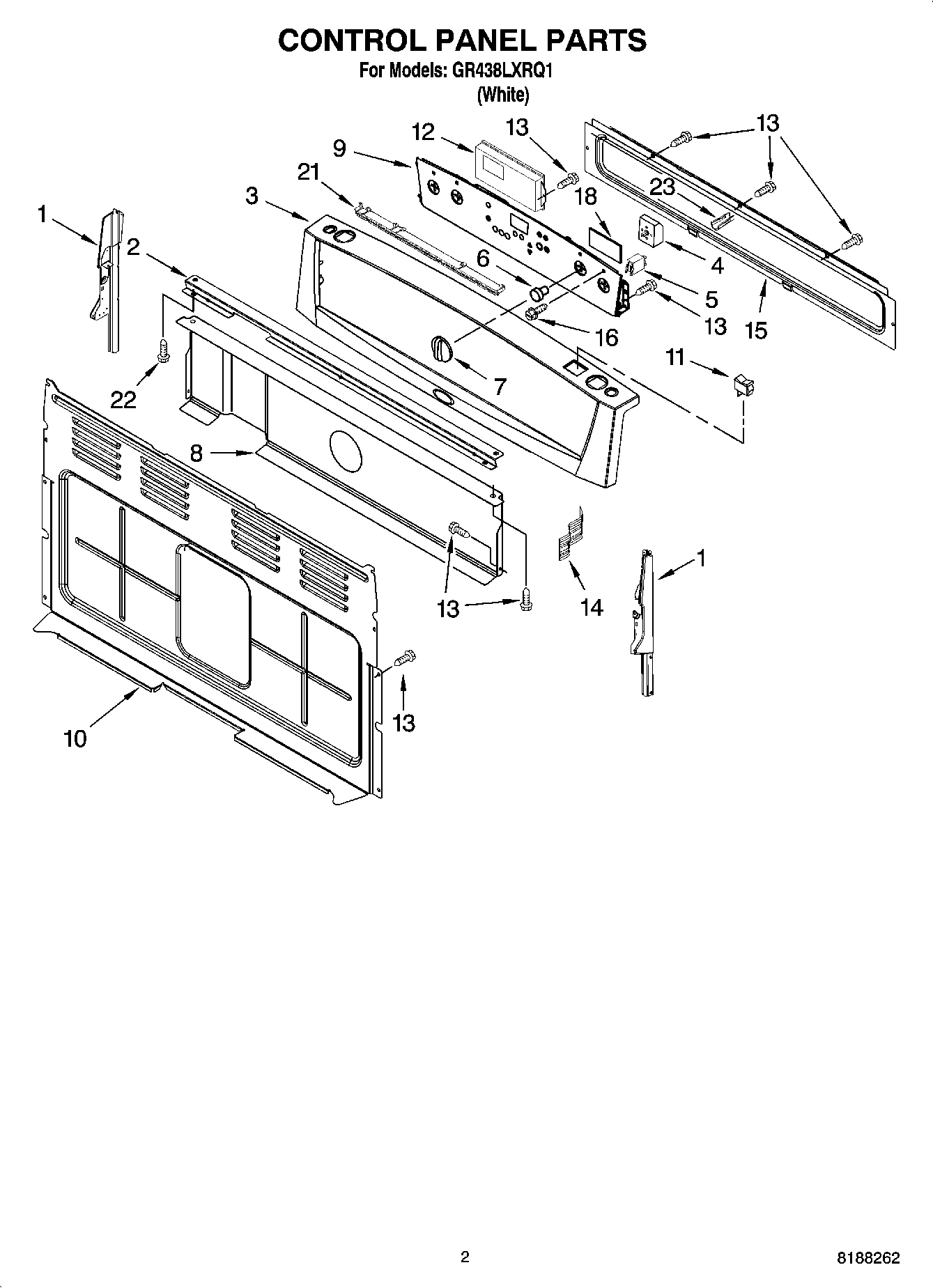

GR438LXRQ1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
2	Bracket, Console
3	Panel, Backguard (White)
4	WP3149400 Whirlpool Oven Infinite Switch
4	WP3149404 Whirlpool Oven Surface Element Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	Knob, Infinite (4) (White)
8	Shield, Heat
9	Bracket, Control (White)
10	Cover, Rear
11	Switch, Rocker (White)
12	Control, Range
13	SCREW
14	WPL 9762424
15	Cover, Rear (Console)
16	WP3400882 Whirlpool Screw
18	Card, Insulator
21	Re
22	3196166 Whirlpool Screw
23	WPL 9757490
