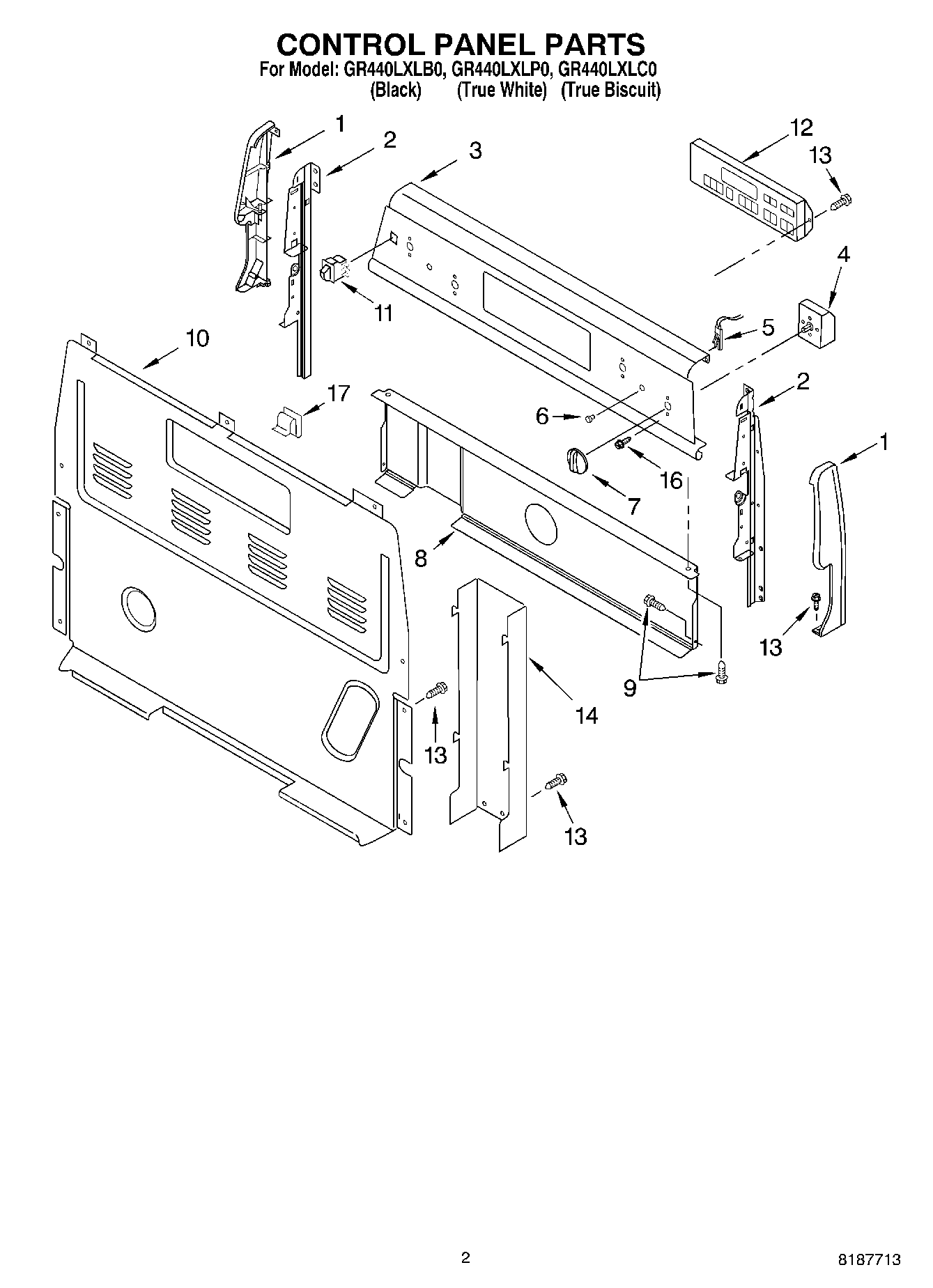

GR440LXLP0 02 – CONTROL PANEL PARTS

GR440LXLP0 02 – CONTROL PANEL PARTS

Written by

in

GR440LXLP0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (White Right Hand)
1Endcap (Biscuit Right Hand)
1Endcap (Biscuit Left Hand)
1Endcap, Right Hand (Black)
1Endcap (White Left Hand)
1Endcap (Black Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Biscuit)
3Panel, Backguard (White)
3Panel, Backguard (Black)
4WP9761048 Whirlpool Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
4WP3149404 Whirlpool Oven Surface Element Switch
5WP8523265 Whirlpool Indicator Light
5WP8523266 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP8522565 Whirlpool Knob
7WP8522566 Whirlpool Knob
7Knob, Control (4) (Biscuit)
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Switch, Rocker (White)
11Switch, Rocker (Black)
11Switch, Rocker (Biscuit)
12Control, Range (Biscuit)
12Control, Range (White)
12Control, Range (Black)
13SCREW
14WPW10326122 Whirlpool Black Cover
16WP3400882 Whirlpool Screw
17WP8273564 Whirlpool Clip
