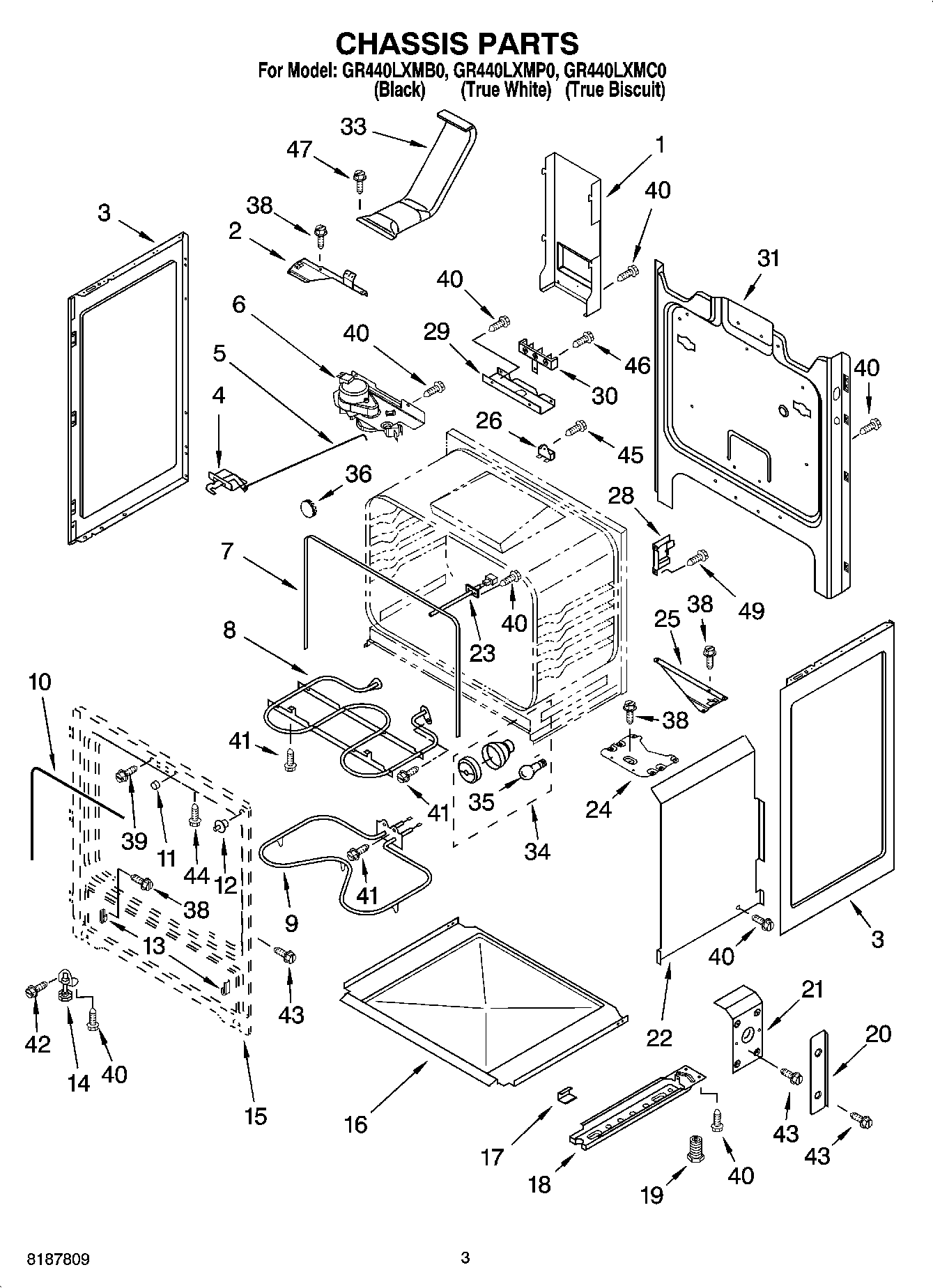

GR440LXMC0 03 – CHASSIS PARTS

GR440LXMC0 03 – CHASSIS PARTS

Written by

in

GR440LXMC0 03 – CHASSIS PARTS

Products

PositionProduct
1WPW10326122 Whirlpool Black Cover
2Support, Corner LR
3W10162246 Whirlpool Side Panel
3WPW10575396 Whirlpool Side Panel
3W11730303 Whirlpool Side Panel
4WP9761013 Whirlpool Door Latch
5Rod, Latch
6WPW10107820 Whirlpool Door Latch
7Seal, Oven Flange
8W10856603 Whirlpool Broil Element
9WPW10308477 Whirlpool Bake Element
10W11542153 Whirlpool Door Gasket
11W10877054 Whirlpool Spacer Assembly
12WP3196262 Whirlpool Light Switch
13WP3195546 Whirlpool Drawer Glide
14WP3196037 Whirlpool Leveling Foot
15Frame, Front (Non-Serviceable)
16WP8054068 Whirlpool Retainer
17Clip, Panel (6)
18WPW10306546 Whirlpool Base Rail
19WPW10058460 Whirlpool Appliance Levelling Leg
20Shield, Outer (2)
21Shield, Inner (2)
22Retainer, Side (2)
23WPW10181986 Whirlpool Oven Sensor
24Support, Front (2)
25Support, Corner RR
26WP3196548 Whirlpool Thermal Fuse
28W10404688 Whirlpool Bracket Support
29W11728255 Whirlpool Service Bracket
30WP9761958 Whirlpool Range Terminal Block
30WP112432 Whirlpool Nut Assembly
31Back, Main
33WPW10134285 Whirlpool Vent Tube
34W11594027 Whirlpool Range Oven Light Socket
35RANGE ONLY 40W 120V APPL BULB
36Button, Plug
38WP3196175 Whirlpool Screw
39WP3400832 Whirlpool Screw
41WP3196174 Whirlpool Screw
42Screw
43WP7101P246-60 Whirlpool Screw
44SCREW
453196172 Whirlpool Oven Screw
46WP3400016 Whirlpool Screw Assembly
47WP489491 Whirlpool Refrigerator Screw
49WP8272612 Whirlpool Insulation
49WPW10208653 Whirlpool Insulation
49WP3196557 Whirlpool Screw
49Insulation
498053915 Whirlpool Oven Insulation
