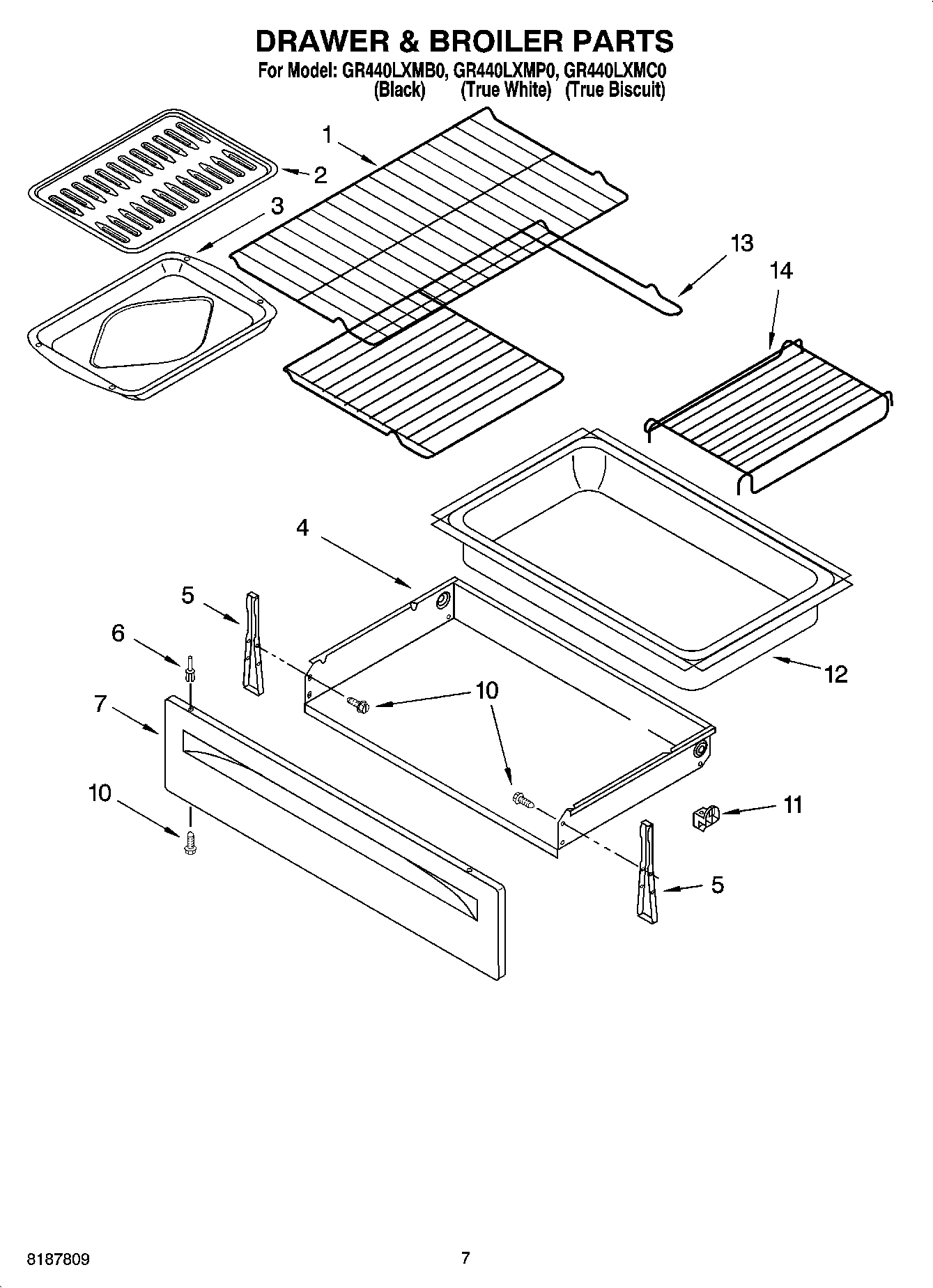

GR440LXMP0 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

GR440LXMP0 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Written by

in

GR440LXMP0 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL 9756202
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
Grease
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
1
Wire (14 Ga. 200 c Brown)
WPL ARI148985A
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
WP3196154 Whirlpool Screw Assembly
WPL 8273266
WPL ARI148991A
WPL ARI148990A
WPL ARI148989A
WPL ARI148988A
WPL ARI148987A
WPL ARI148986A
WPL 8523717
WPL 8524072
WPL 8524070
WPL ARI148992A
WPL 4454240
WPL 8316781
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
8528351 Whirlpool Clip
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
814381 Whirlpool Pin
242831 Whirlpool Oven Wire
18 Ga. 80~c Rating (Red)
Clip, Ground Wire
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196813 Whirlpool Rivet
6WP3196814 Whirlpool Rivet
63196815 Whirlpool Oven Rivet
7W11219377 Whirlpool Drawer Panel
7W11230488 Whirlpool Drawer Panel
7W11230476 Whirlpool Drawer Panel
10WP3400832 Whirlpool Screw
11WP8053334 Whirlpool Drawer Glide
12Liner, Drawer
13WP8274021 Whirlpool Oven Rack
14WP8274022 Whirlpool Oven Rack
