GR445LXLS0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

GR445LXLS0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Written by

in

GR445LXLS0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI149002A
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
1
Wire (14 Ga. 200 c Brown)
WPL ARI148995A
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Grease
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
WP3196154 Whirlpool Screw Assembly
WPL ARI149001A
WPL ARI149000A
WPL ARI148999A
WPL ARI148998A
WPL ARI148997A
WPL ARI148996A
WPL 8524071
WPL 8523562
WPL 8524070
WPL ARI149003A
WPL 8273266
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
Wire, 25“ Roll (White 14 GA.)
799344 Whirlpool Refrigerator Paint
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPW10208653 Whirlpool Insulation
285006 Whirlpool Spray
72017 Whirlpool Appliance Touch-Up Paint White
8528351 Whirlpool Clip
242831 Whirlpool Oven Wire
18 Ga. 80~c Rating (Red)
Clip, Ground Wire
WPL 799832
350930 Whirlpool White Spray Paint
814381 Whirlpool Pin
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)

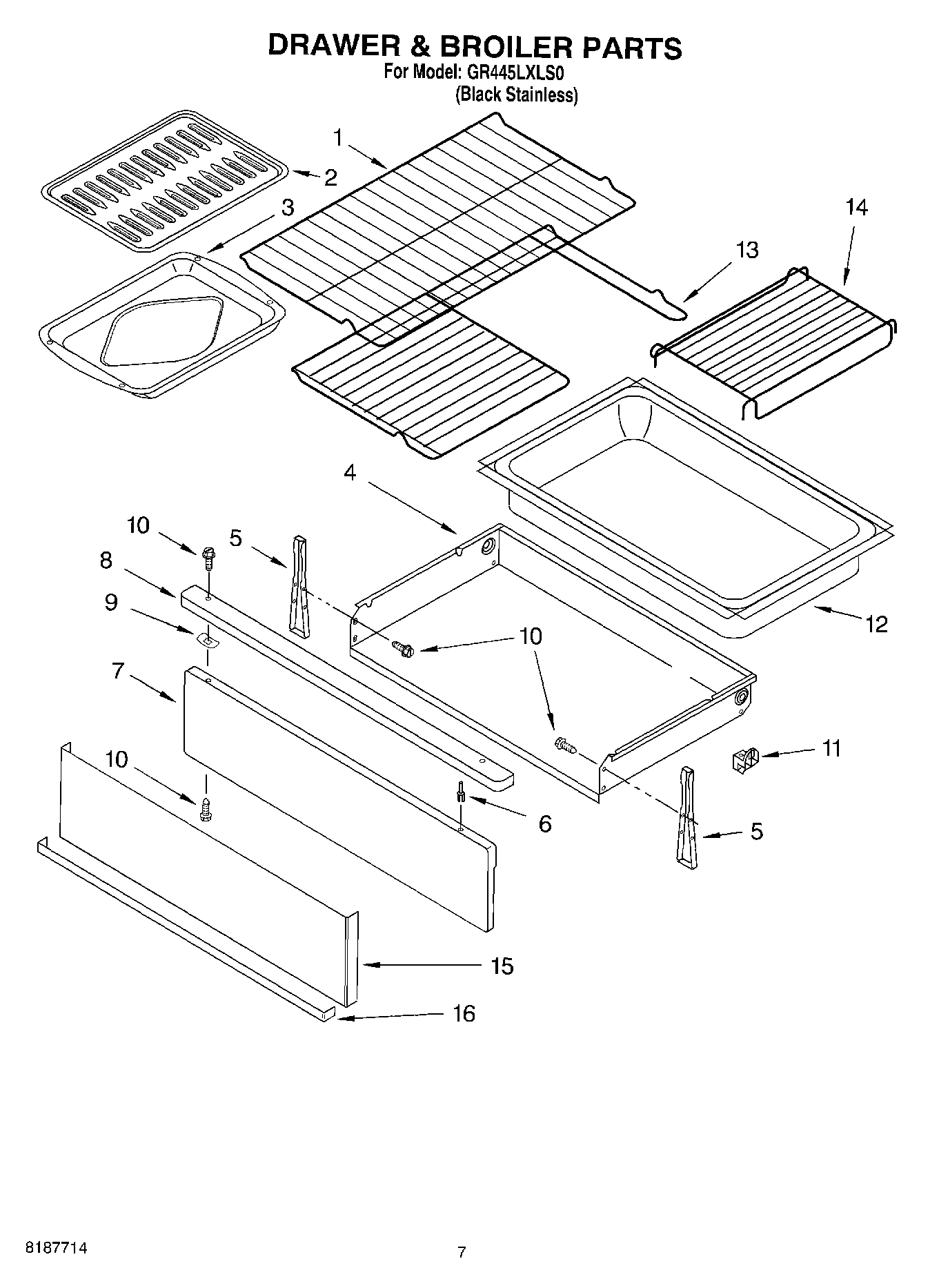

1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196813 Whirlpool Rivet
7W11230488 Whirlpool Drawer Panel
8WPL 8053949
9WP9781235 Whirlpool Clip
10WP3400832 Whirlpool Screw
11WP8053334 Whirlpool Drawer Glide
12Liner, Drawer
13WP8274021 Whirlpool Oven Rack
14WP8274022 Whirlpool Oven Rack
15Panel, Stainless
16Bottom, Drawer
