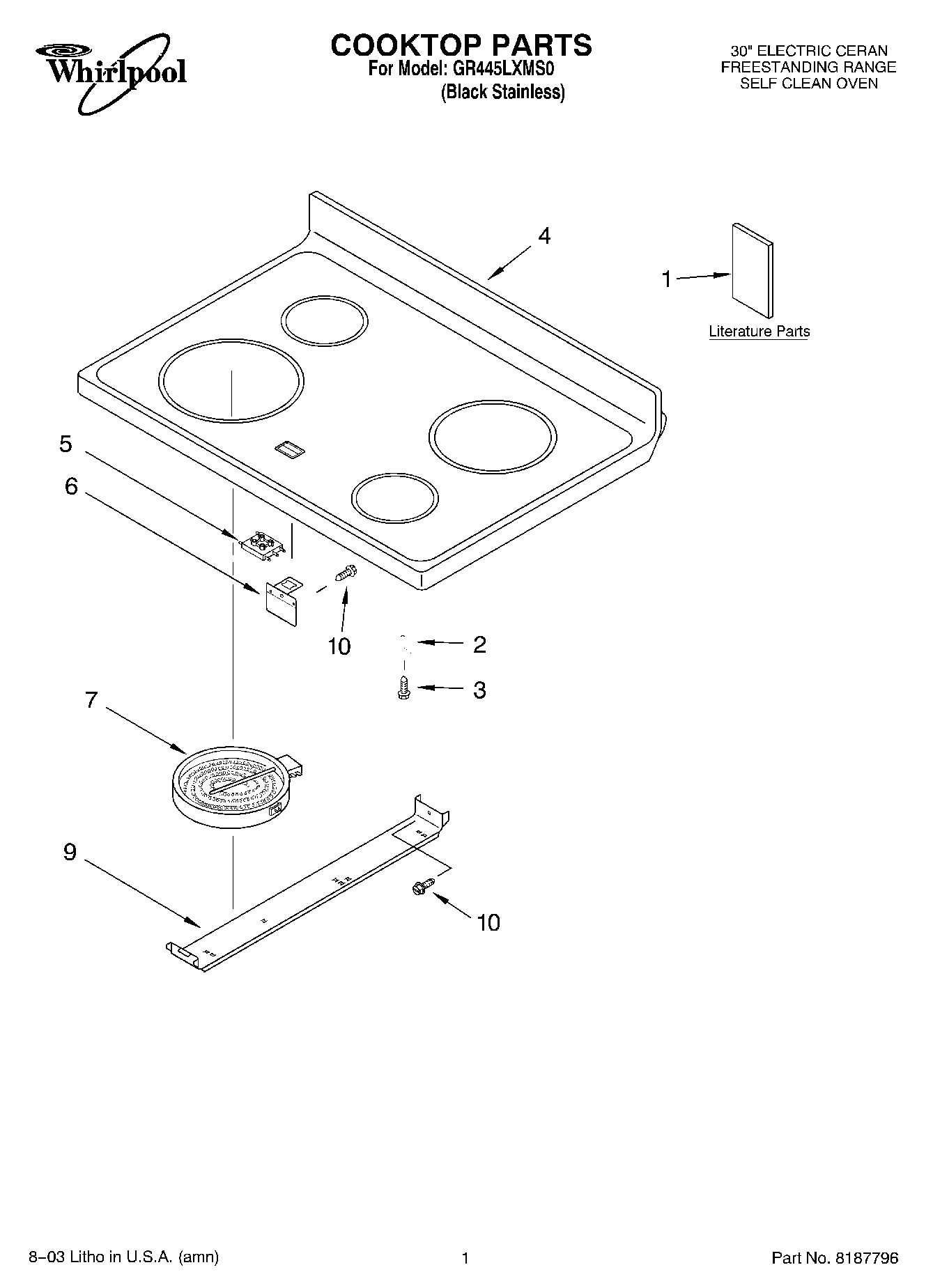

GR445LXMS0 01 – COOKTOP PARTS

GR445LXMS0 01 – COOKTOP PARTS

Written by

in

GR445LXMS0 01 – COOKTOP PARTS

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Instructions, Installation, LIT4454084 Tech Sheet)
1Guide, Use & Care
1Literature Parts (Tech Sheet)
1Literature Parts (English/Spanish)
2Spring, Locator
3WP3196170 Whirlpool Screw
4Cooktop (Black/Black)
5Light, Indicator (Hot Surface)
6Bracket, Ind Light
7W10823696 Whirlpool Radiant Surface Element
7WP8523699 Whirlpool Surface Element
7W10823698 Whirlpool Surface Element Right Rear
7W10823692 Whirlpool Dual Radiant Element
9Bracket, Element ((2))
9Bracket, Element ((1))
10WP3196557 Whirlpool Screw
