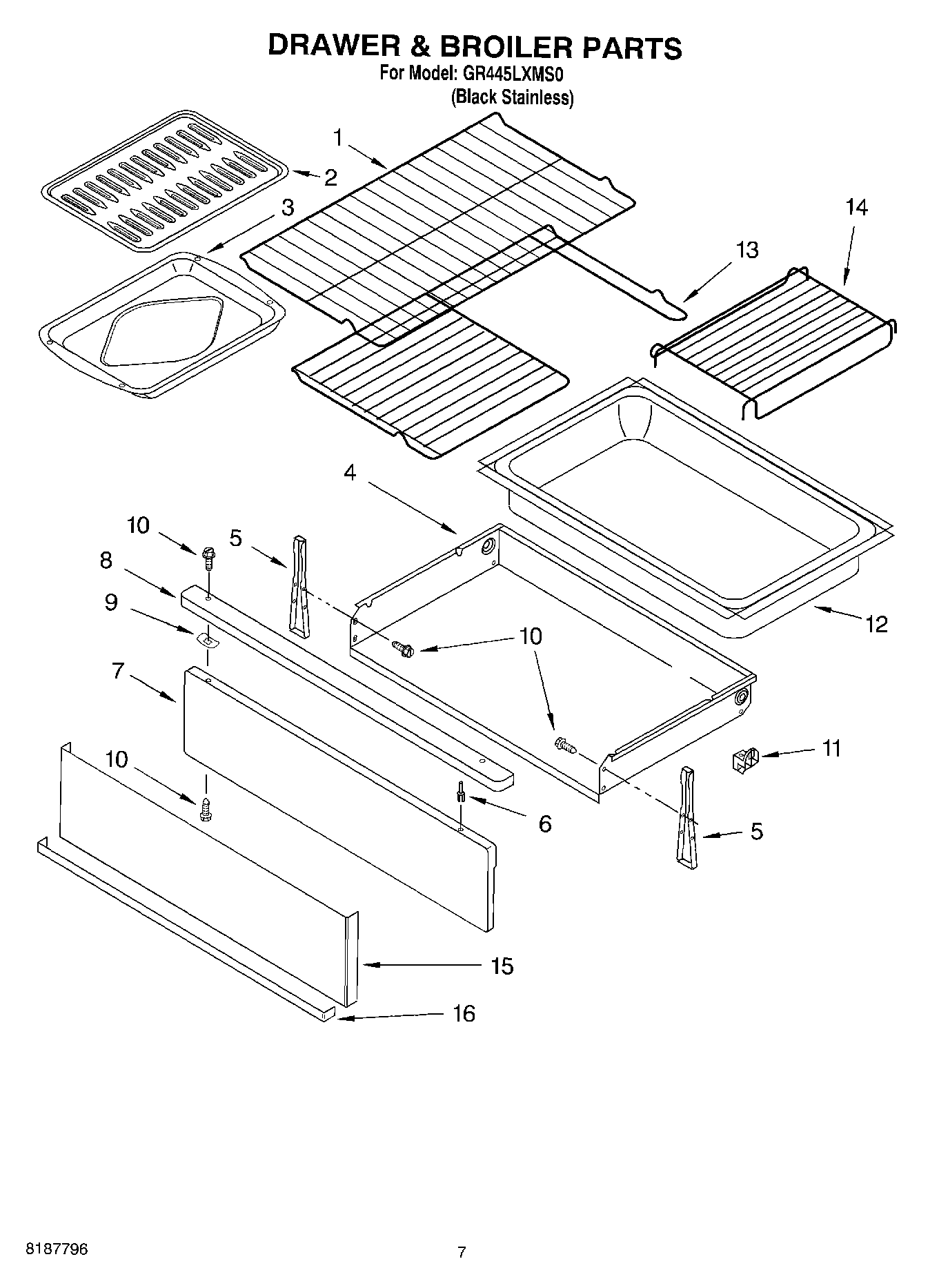

GR445LXMS0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

GR445LXMS0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Written by

in

GR445LXMS0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI149011A
WPL 8273266
WP3196154 Whirlpool Screw Assembly
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
Grease
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
WPL 8316781
WPL 8524132
WPL ARI149010A
WPL ARI149009A
WPL 9756202
WPL ARI149008A
WPL ARI149007A
WPL ARI149006A
WPL ARI149014A
WPL ARI149013A
WPL 8524072
WPL 8524070
WPL ARI149012A
WPL 4454240
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
8528351 Whirlpool Clip
285006 Whirlpool Spray
Wire, 25“ Roll (White 14 GA.)
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
Wire, 25` Roll (Red 14 Ga.)
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPL 799832
FOIL, ALUMINUM OVEN (18“ X 25 )
814381 Whirlpool Pin
799344 Whirlpool Refrigerator Paint
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
Clip, Ground Wire
WPW10208653 Whirlpool Insulation
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196813 Whirlpool Rivet
7W11230488 Whirlpool Drawer Panel
8WPL 8053949
9WP9781235 Whirlpool Clip
10WP3400832 Whirlpool Screw
11WP8053334 Whirlpool Drawer Glide
12Liner, Drawer
13WP8274021 Whirlpool Oven Rack
14WP8274022 Whirlpool Oven Rack
15Panel, Stainless
16Bottom, Drawer
