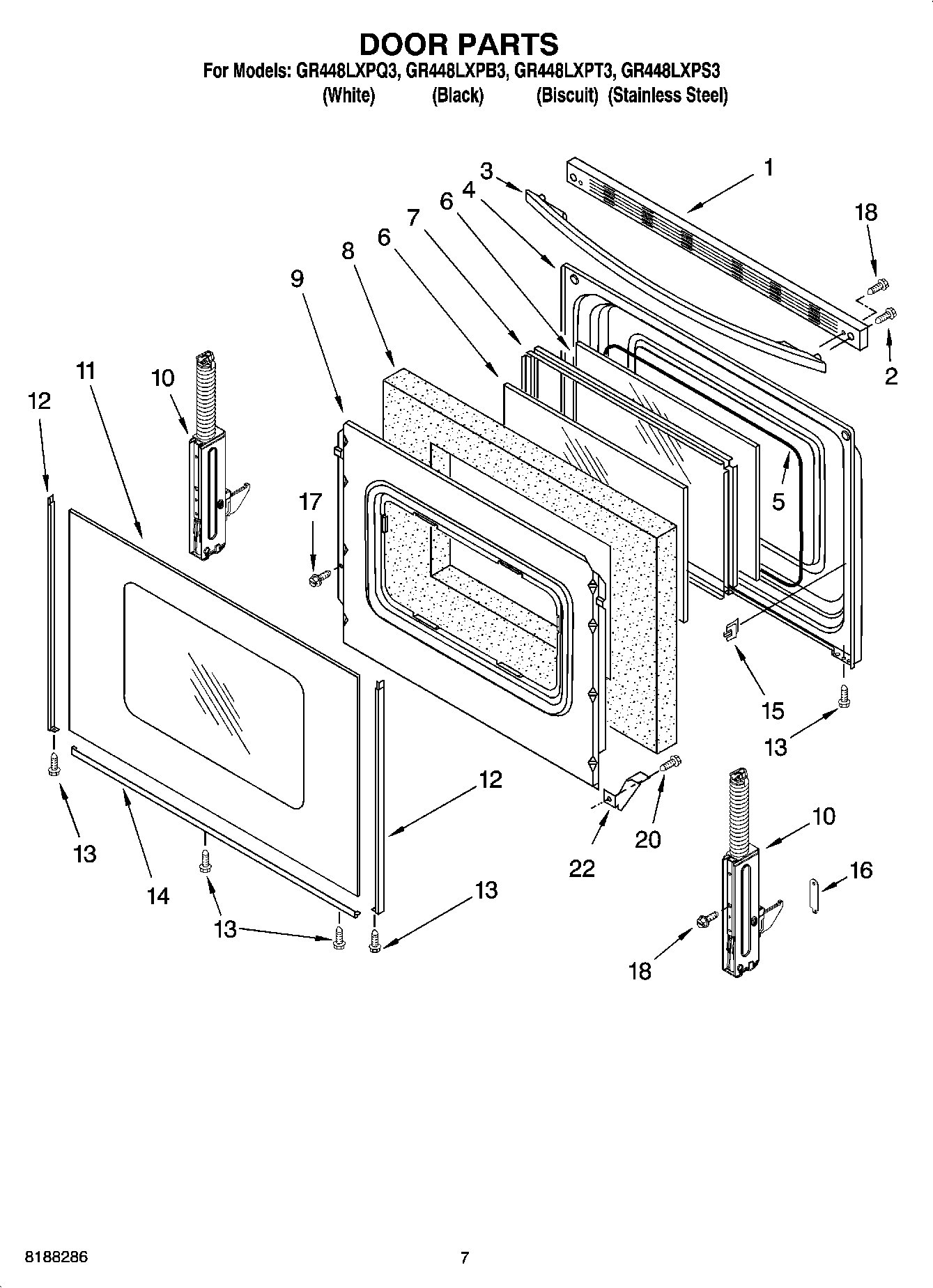

GR448LXPB3 05 – DOOR PARTS, OPTIONAL PARTS

GR448LXPB3 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

GR448LXPB3 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	W11244557 Whirlpool Screw
	242831 Whirlpool Oven Wire
	W10465644 Whirlpool Wire Harness
	Wire (14 Ga. 200 c Brown)
	WPL ARI149054A
	Clip, Ground Wire
	3400964 Whirlpool Oven Clip
	WPL 9761453
	WPL 9761455
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	8212471 Whirlpool Oven Paint
	3184020 Whirlpool Oven Wire
	Grease
	WP3196154 Whirlpool Screw Assembly
	WPL 9758174
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	WPL 9759002
	WPL ARI149048A
	WPL ARI149049A
	WPW10208653 Whirlpool Insulation
	WPL 799832
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPL ARI149053A
	WPL ARI149050A
	W11447673 Whirlpool Range Tip Anchor
	WPL ARI149051A
	WPL ARI149052A
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
	350930 Whirlpool White Spray Paint
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Black and S.Steel Models)
1	Trim, Top (Biscuit)
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
3	Handle, Door (Biscuit)
3	WPW10202217 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	W10347466 Whirlpool Door Hinge
11	WPW10118455 Whirlpool Door Glass Assembly
11	Glass, Outer (Biscuit)
11	Glass, Outer (Stainless Steel)
11	WPW10118454 Whirlpool Door Outer Glass White
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	WP8523166 Whirlpool Door Trim
12	WP8523167 Whirlpool Door Trim Assembly
12	W10761014 Whirlpool Right Door Trim
12	WP8523172 Whirlpool Left Door Trim
12	WP8523173 Whirlpool Door Trim
13	W10491985 Whirlpool Screw
14	WP8523178 Whirlpool Door Trim
14	WP8523180 Whirlpool Door Trim Assembly
14	WP8523177 Whirlpool Door Trim Assembly
14	WP8523175 Whirlpool Door Trim Assembly
15	Clip, Glass (4)
16	9761517 Whirlpool Oven Clip Assembly
17	WPW10031790 Whirlpool Screw
18	W10777162 Whirlpool Screw
20	WP3196175 Whirlpool Screw
22	WP3196794 Whirlpool Glass Bracket
