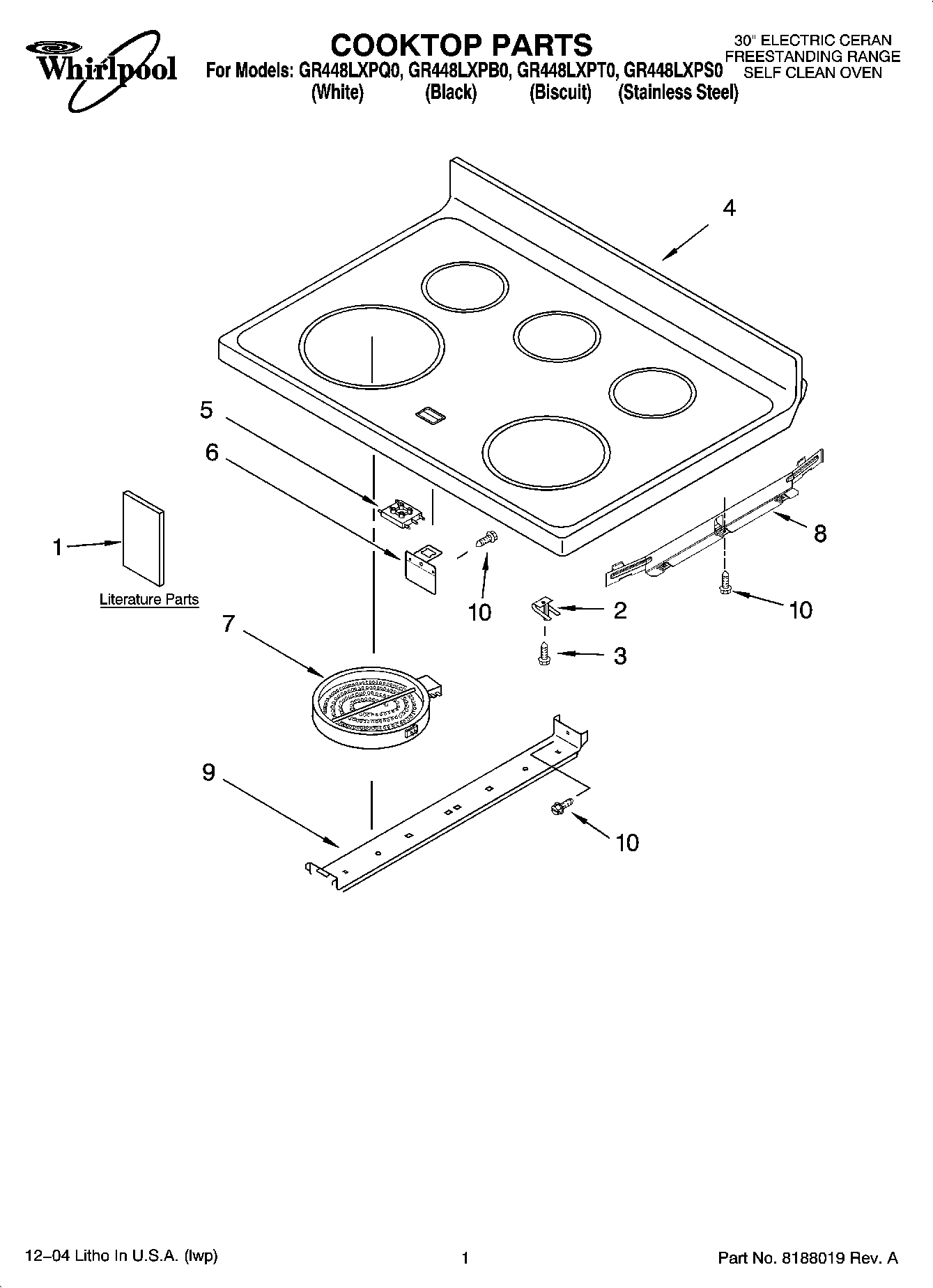

GR448LXPS0 01 – COOKTOP PARTS

Products

PositionProduct
1Safe Cooking Tips
1Use & Care Guide
1English/French
1English/Spanish
1Tech Sheet
1Installation Instructions Anti-Tip Template
2Spring, Locator
3WP3196170 Whirlpool Screw
4Cooktop (Black)
4Cooktop (White)
4Cooktop (Biscuit)
5Light, Indicator (Hot Surface)
6Bracket, Ind Light
7WP8523699 Whirlpool Surface Element
7W10823692 Whirlpool Dual Radiant Element
7W10823711 Whirlpool Surface Element Left Front and Right Rear
8WPL 8524132
9Bracket, Element ((2))
9Bracket, Element ((1))
10WP3196557 Whirlpool Screw
