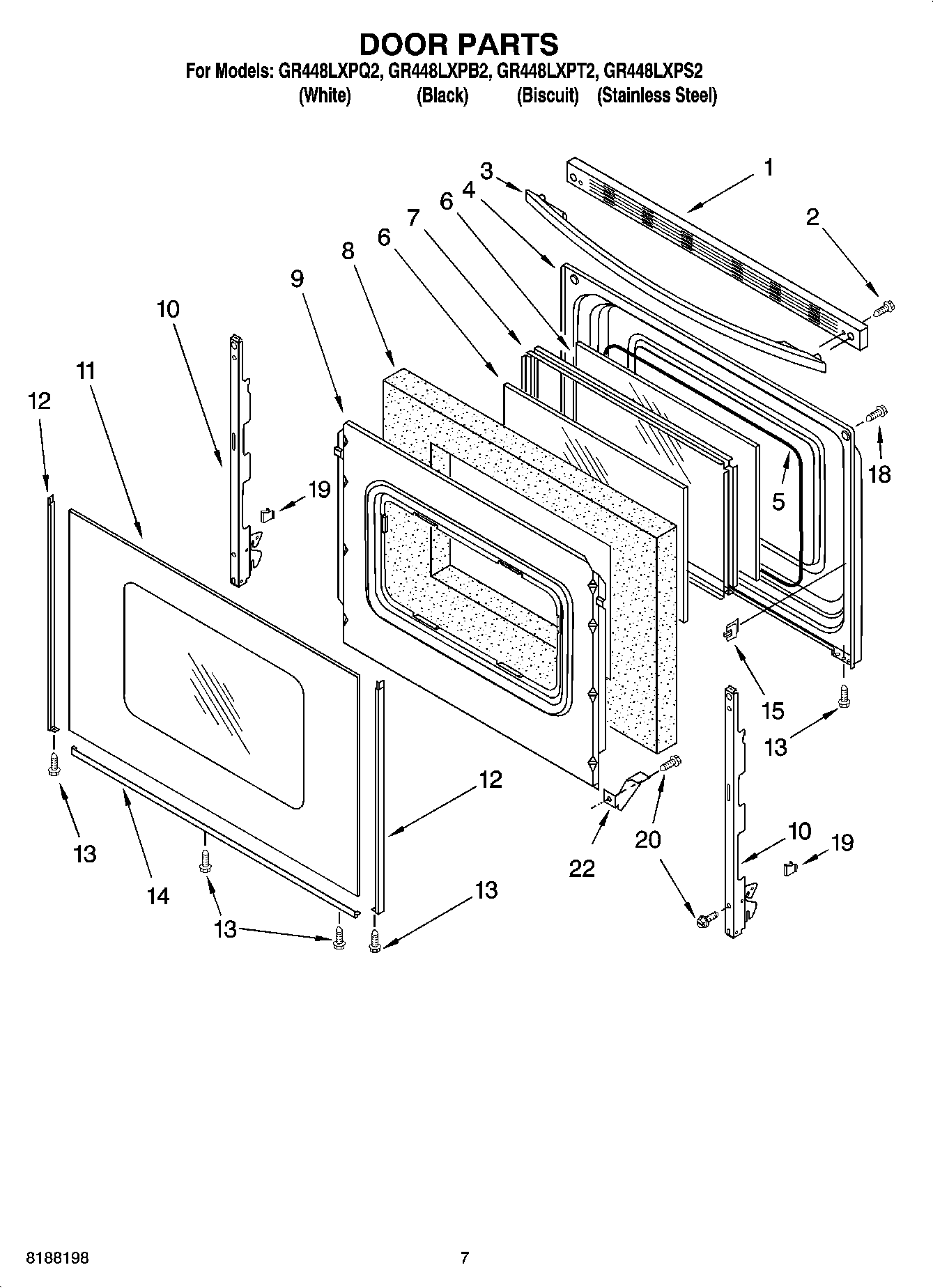

GR448LXPS2 05 – DOOR PARTS, OPTIONAL PARTS

GR448LXPS2 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

GR448LXPS2 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI149123A
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Grease
	WP3196154 Whirlpool Screw Assembly
	WPL 9758174
	WPL ARI149122A
	WPL ARI149121A
	WPL ARI149120A
	WPL ARI149119A
	WPL ARI149118A
	WPL ARI149117A
	WPL 9759002
	WPL 9761455
	WPL 9761453
	WPL ARI149124A
	W10465644 Whirlpool Wire Harness
	3400964 Whirlpool Oven Clip
	350930 Whirlpool White Spray Paint
	814381 Whirlpool Pin
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	285006 Whirlpool Spray
	W11447673 Whirlpool Range Tip Anchor
	4392899 Whirlpool Biscuit Touch-Up Paint
	Wire, 25` Roll (Red 14 Ga.)
	WPL 799832
	WPW10208653 Whirlpool Insulation
	FOIL, ALUMINUM OVEN (18“ X 25 )
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Black)
1	Trim, Top (Stainless Model)
1	Trim, Top (Biscuit)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
3	Handle, Door (Biscuit)
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WP8053807 Whirlpool Oven Door Hinge
10	Hinge, Door (Stainless Model)
11	Glass, Outer (Stainless Steel)
11	WPW10118455 Whirlpool Door Glass Assembly
11	Glass, Outer (Biscuit)
11	WPW10118454 Whirlpool Door Outer Glass White
12	WP8523173 Whirlpool Door Trim
12	WP8523167 Whirlpool Door Trim Assembly
12	WP8523172 Whirlpool Left Door Trim
12	W10761014 Whirlpool Right Door Trim
12	WP8523166 Whirlpool Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
13	W10491985 Whirlpool Screw
14	WP8523178 Whirlpool Door Trim
14	WP8523180 Whirlpool Door Trim Assembly
14	WP8523177 Whirlpool Door Trim Assembly
14	WP8523175 Whirlpool Door Trim Assembly
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	WP3196175 Whirlpool Screw
22	WP3196794 Whirlpool Glass Bracket
